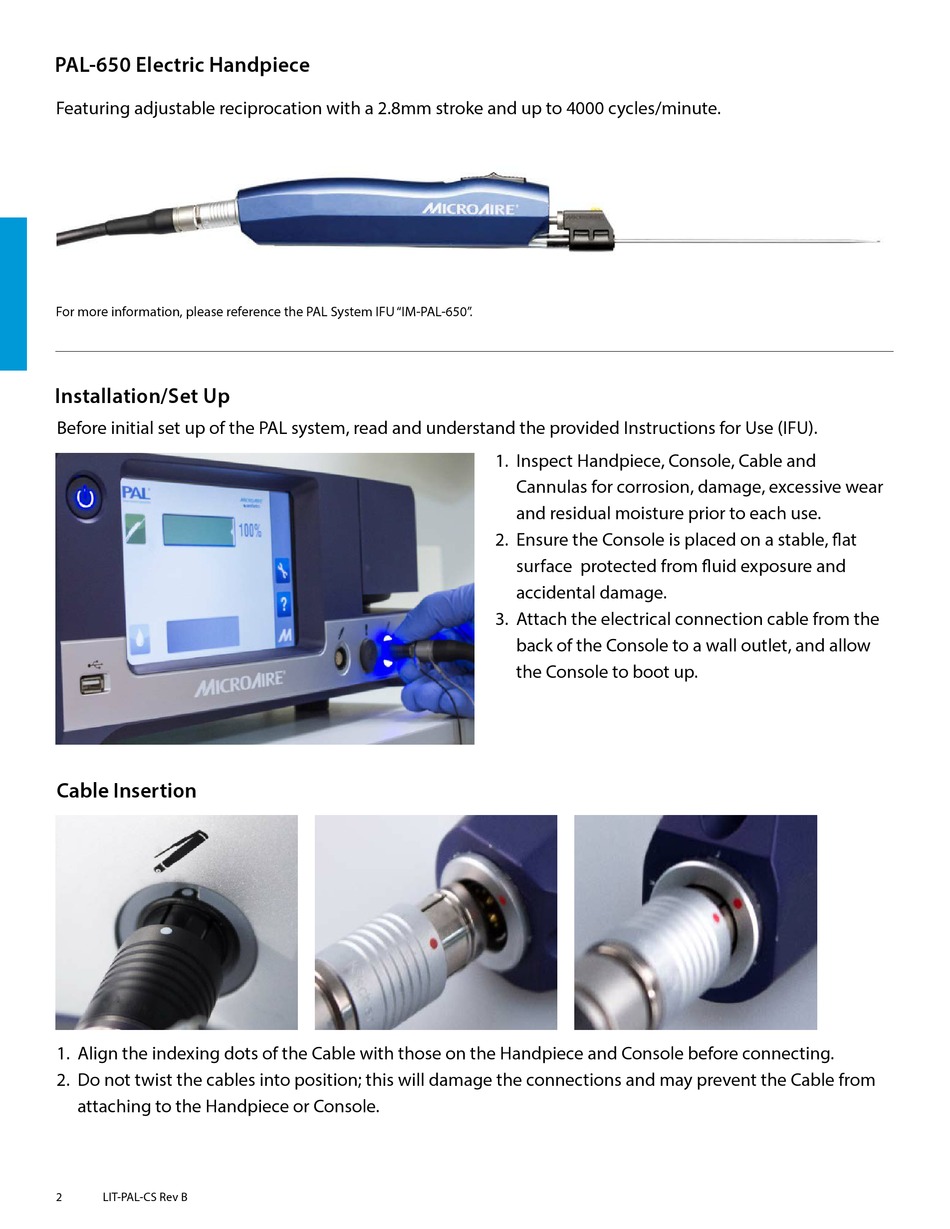

PAL-650 Electric Handpiece
Featuring adjustable reciprocation with a 2.8mm stroke and up to 4000 cycles/minute.
For more information, please reference the PAL System IFU "IM-PAL-650".

Installation/Set Up

Before initial set up of the PAL system, read and understand the provided Instructions for Use (IFU).
Cable Insertion
1. Align the indexing dots of the Cable with those on the Handpiece and Console before connecting.
2. Do not twist the cables into position; this will damage the connections and may prevent the Cable from
attaching to the Handpiece or Console.
2 LIT-PAL-CS Rev B
1. Inspect Handpiece, Console, Cable and
Cannulas for corrosion, damage, excessive wear
and residual moisture prior to each use.
2. Ensure the Console is placed on a stable, at
surface protected from uid exposure and
accidental damage.
3. Attach the electrical connection cable from the
back of the Console to a wall outlet, and allow
the Console to boot up.
