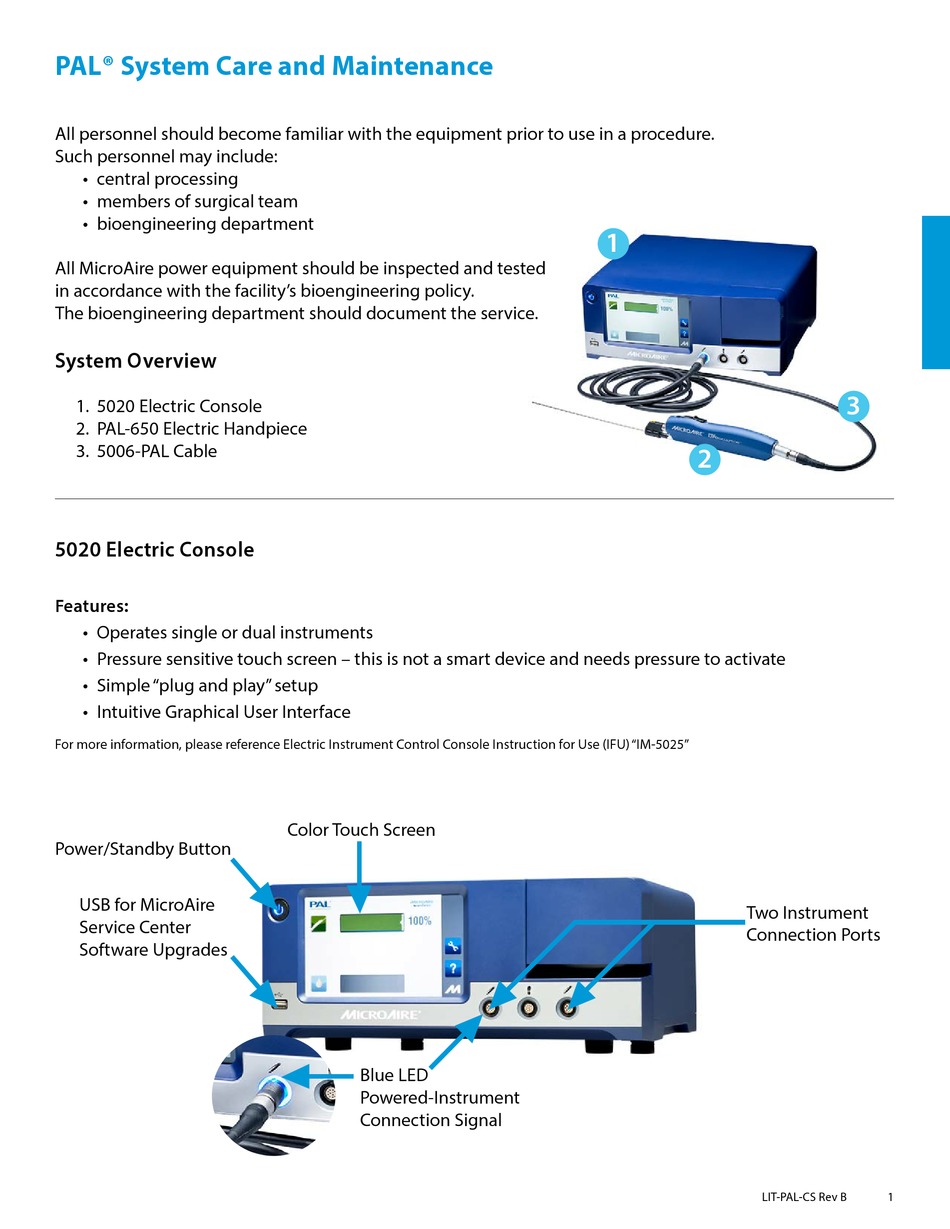

PAL® System Care and Maintenance
All personnel should become familiar with the equipment prior to use in a procedure.
Such personnel may include:
• central processing
• members of surgical team
• bioengineering department
All MicroAire power equipment should be inspected and tested
in accordance with the facility's bioengineering policy.
The bioengineering department should document the service.

System Overview

1. 5020 Electric Console
2. PAL-650 Electric Handpiece
3. 5006-PAL Cable
5020 Electric Console
Features:
• Operates single or dual instruments
• Pressure sensitive touch screen – this is not a smart device and needs pressure to activate
• Simple "plug and play" setup
• Intuitive Graphical User Interface
For more information, please reference Electric Instrument Control Console Instruction for Use (IFU) "IM-5025"
Power/Standby Button
USB for MicroAire
Service Center
Software Upgrades
Color Touch Screen
Blue LED
Powered-Instrument
Connection Signal
1
2
Two Instrument
Connection Ports
LIT-PAL-CS Rev B
3
1
