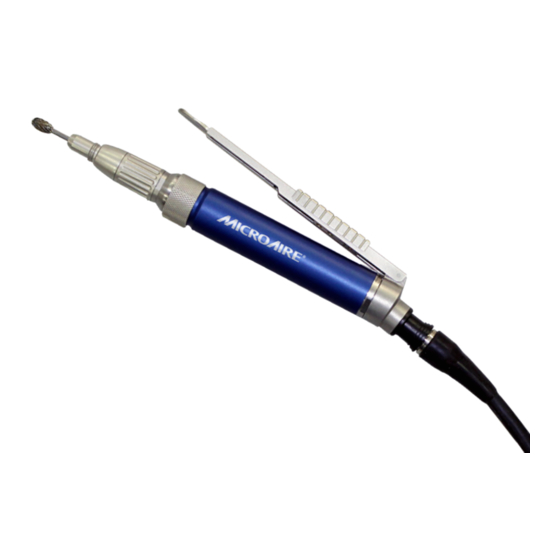

- Page 1 Series-5000 Electric Instruments Instructions for Use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS • Symbol Glossary ........3-4 •... -
Page 3: Symbol Glossary
SYMBOL GLOSSARY Designation Symbol Name Use Standard Description Number Refer to Indicates a MANDATORY action for the Instruction ISO-7010 IEC 60601- user to consult the Instructions For Use Manual / M002 1:20051 (IFU). Symbol must be blue. Booklet Indicates the need for the user to consult Consult ISO 15223- the Instructions For Use (IFU). - Page 4 Designation Symbol Name Use Standard Description Number Indicates the manufacturer’s catalog ISO 15223- REF (Catalog #) 2493 number so that the medical device can 1:20121 be identified. Do Not Indicates a medical device that is not to Lubricate be lubricated. Do Not Immerse Indicates a medical device that is not to be 5995...
-
Page 5: Warnings And Cautions
WARNING: Inspect all system components for damage, corrosion, or excessive wear. Do not use if any of these conditions are present. Contact MicroAire for service. WARNING: If corrosion or debris are detected in or on the instrument, the instrument is contaminated. - Page 6 WARNING: Sterile accessory packages should be examined closely prior to opening to ensure that there has been no loss of package integrity. Do not use sterile accessories if the package is open or damaged because of the risk of infection. CAUTION: To prevent damage to couplers, do not activate the instrument without first inserting a single-use accessory.
-
Page 7: System Components
AO Drill (Synthes Style (Quick-Connect) Module Accessories MicroAire 1200-Series Sagittal Saw Blades MicroAire ZB-Series Burs MicroAire 1400-Series and ZR-Series Reciprocating Saw Blades and Rasps MicroAire ZS-3XX Sagittal Blades MicroAire ZS-Series Sagittal Blades MicroAire ZO-Series Small Oscillating Blades MicroAire 8054-Series Standard Twist Drills... -
Page 8: Assembly / Disassembly Instructions
6. Connect the Instrument Cable (REF 5006-5000) to the receptacle on the handpiece by aligning the dots and gently pushing the connections together without twisting. 7. Connect a MicroAire Series-5000 coupler to the handpiece by retracting the collar on the handpiece and pushing the coupler into the receptacle. - Page 9 • Check for irregular noise, heat, or vibration. • Set the throttle safety lock to the LOCKED position. • Contact MicroAire for service if irregularities are observed. WARNING: If the instrument runs slowly or irregularly, be alert for the possibility of overheating or other malfunctions.
- Page 10 REF 5922 - MICRO SAGITTAL SAW MODULE • A sagittal-motion device intended for transverse or wedge osteotomies. • Accepts MicroAire 1200-Series blades, which are ultra-thin (0.3mm) straight, angled, bent, or offset blades. To insert a blade into the Micro Sagittal Saw Module (REF 5922): 1.
- Page 11 • A medium speed, medium torque rotary device intended for bone sculpting, drilling, wire passing, and reaming the intramedullary canals of small bones. • Accepts MicroAire REF ZB-70, ZB-100, ZB-200, and ZB-300 burs. To insert a bur into a 30K Micro Drill Module (REF 5930): 1.
- Page 12 • A reciprocating device intended for osteotomies using a blade; or for bone sculpting using a rasp. • Accepts MicroAire small-bone ZR-series reciprocating blades and rasps. To insert a blade or rasp into the Reciprocating Saw Module (REF 5945): 1. If using the REF 5000ET throttle-lever handpiece, set the throttle safety lock to the LOCKED position.
- Page 13 REF 5955 - HALL® STYLE SAGITTAL SAW MODULE, WITH KEY • A sagittal-motion device intended for transverse or wedge osteotomies. • Accepts MicroAire ZS-series sagittal saw blades. The blade can be locked into the saw at any angle along a180° arc.
- Page 14 REF 5980 – JACOBS DRILL MODULE • A low-speed, high-torque rotary device intended for drilling. • Accepts MicroAire 8051-series and 8054-series twist drills with diameters between 1.0mm and 4.0mm, up to 127mm in length. To insert a twist drill into the Jacobs Drill Module (5980): 1.
-
Page 15: Reprocessing Instructions
REF 5990 – AO DRILL (SYNTHES® STYLE QUICK CONNECT) MODULE • A low speed, high torque rotary device intended for drilling. • Accepts MicroAire 8053-series quick-connect twist drills with diameters between 1.1mm and 3.5mm, up to 127mm in length. To insert a twist drill into the AO Drill (Synthes® Style) Module (REF 5990): 1. - Page 16 5. Confirm that couplers can be connected to the handpiece. NOTE: If concerns are noted that may compromise the function of any MicroAire device, do not use the device and contact MicroAire for service. IM-5000E-USA Rev A, 2021-01...
- Page 17 Sterilization Sterilization Method Instrument Types Minimum Time & Minimum Heated Temperature Dry Time Dynamic Air Removal Double-wrapped 3-minute full cycle 30 minutes (Pre-vacuum) Steam instrument or accessory @ 135°C (275°F) only; or multiple 4-minute full cycle 30 minutes instruments and @ 132°C (270°F) accessories in a double- wrapped sterilization case...
-
Page 18: Storage
REPAIR SERVICE • Contact Customer Service for a Return Material Authorization (RMA) number. • MicroAire may be able to solve the problem without requiring return of the item for service. • Do not disassemble or attempt to service the equipment. - Page 19 NOTES 19 of 20 IM-5000E-USA Rev A, 2021-01...
- Page 20 In the United States: Phone: (800) 722-0822 Fax: (800) 648-4309 Outside the United States: Phone: (434) 975-8000 The following company is not affiliated with MicroAire Surgical Fax: (434) 975-4131 Instruments LLC. Synthes® is a registered trademark of Depuy Synthes (USA). www.microaire.com ©2021 MicroAire Surgical Instruments LLC...
