Encore Hartco Eclipser 2000 Operating Manual

Encore Hartco
Eclipser 2000
with Hanger & Safety Guard options
Green Housing
EA2000 Series
For best results, use genuine
• Encore Hartco E-Clips
• WA Fasteners Clinch Clips
MADE IN THE U.S.A.
Red Housing
SN2000 Series
Optional
Lexan
Safety
Guard
30090
Optional
Steel
Safety
Guard
30094
www.encorehartco.com
info@encorehartco.com
Northbrook, IL 60062 U.S.A.
Phone: (224) 723-5524
Fax: (224) 723-5526

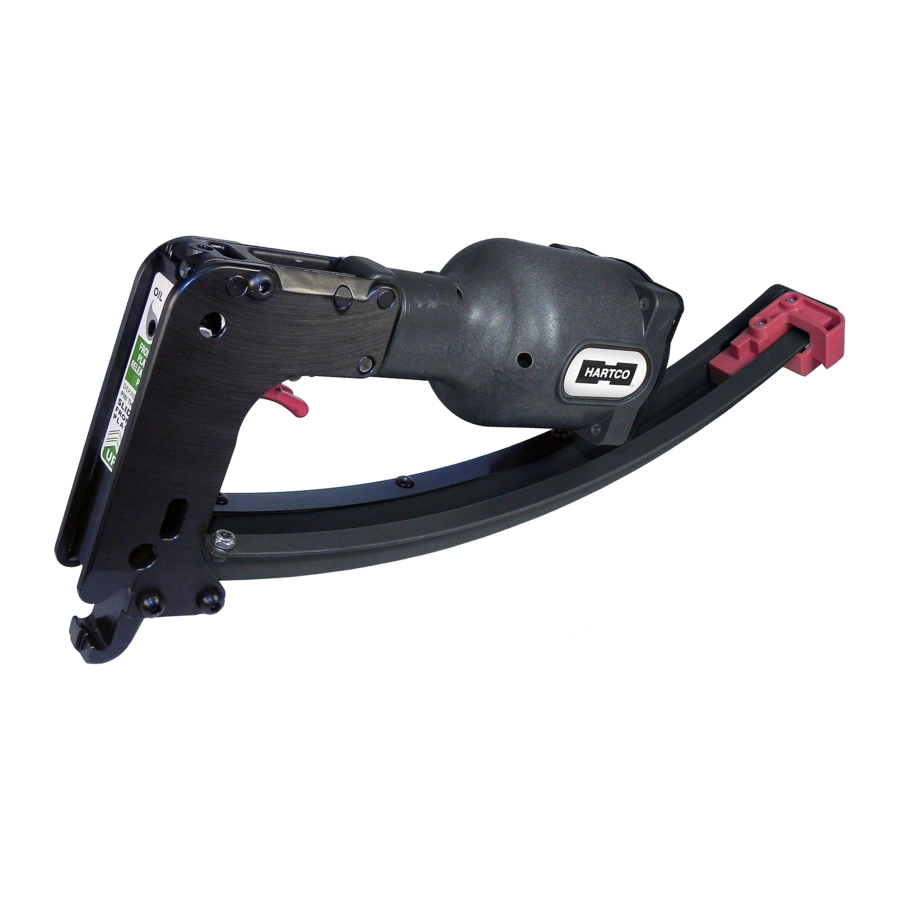

Pneumatic Clinch Clip
Closure Tool
Black Housing
HR2000 Series
"T" MODEL STANDARD
"T" (Thin) Models
for Trap & Cage
Assembly
Optional
Hanger
Assembly
30131
4C 2021-04-29
It is the employer's responsibility to assure
this manual is read and understood by all
personnel assigned to use this tool, and that
manual is kept on hand for future reference.
SAFETY
WARNING
READ THE ENTIRE MANUAL
BEFORE OPERATING THE TOOL.
SAFETY GLASSES (ANSI A87)
should always be worn by all in
the work area while operating,
maintaining or repairing a
tool. Wear personal protective
equipment as required.
NEvER use oxygen, carbon
dioxide or any other bottled gas
as a power source for this tool, as
it will explode and cause serious
injury.
BEFORE using tool, check work
area for hidden electric cables,
utility lines, gas pipes, etc. that
can cause a hazard if damaged
by the tool.
INSPEcT TOOL BEFORE
EAcH USE. Make sure bolts
and cap screws are tight and
trigger moves freely.
Never use a tool that leaks air, has missing parts,
is damaged, or needs repair.
Do not modify this tool without consulting with
an ENcORE HARTcO tool specialist first.
Use only parts, fasteners and accessories
recommended and sold by ENcORE HARTcO and
its authorized distributors.
To prevenT serious
injury:
•
Do not use the tool when you are tired or
under the influence of drugs, alcohol or
medication.
•
Remove all fasteners from tool BEFORE
connecting air.
KEEP HANDS AND FINGERS
AWAY FROM BLADE AND ANvIL
AREA when connecting air
supply and operating tool.
•
DIScONNEcT THE AIR SUPPLY when
mechanically clearing a jam, performing
maintenance or repairs, and whenever the
tool is not in use.
•
NEvER POINT THE TOOL TOWARD YOURSELF
OR ANYONE ELSE.
•
ALWAYS KEEP YOUR FINGER OFF THE
TRIGGER unless actually applying a clip.
Unintended pressure on trigger could cause
tool to eject a fastener.
