Summary of Contents for Delta CMC-PD01

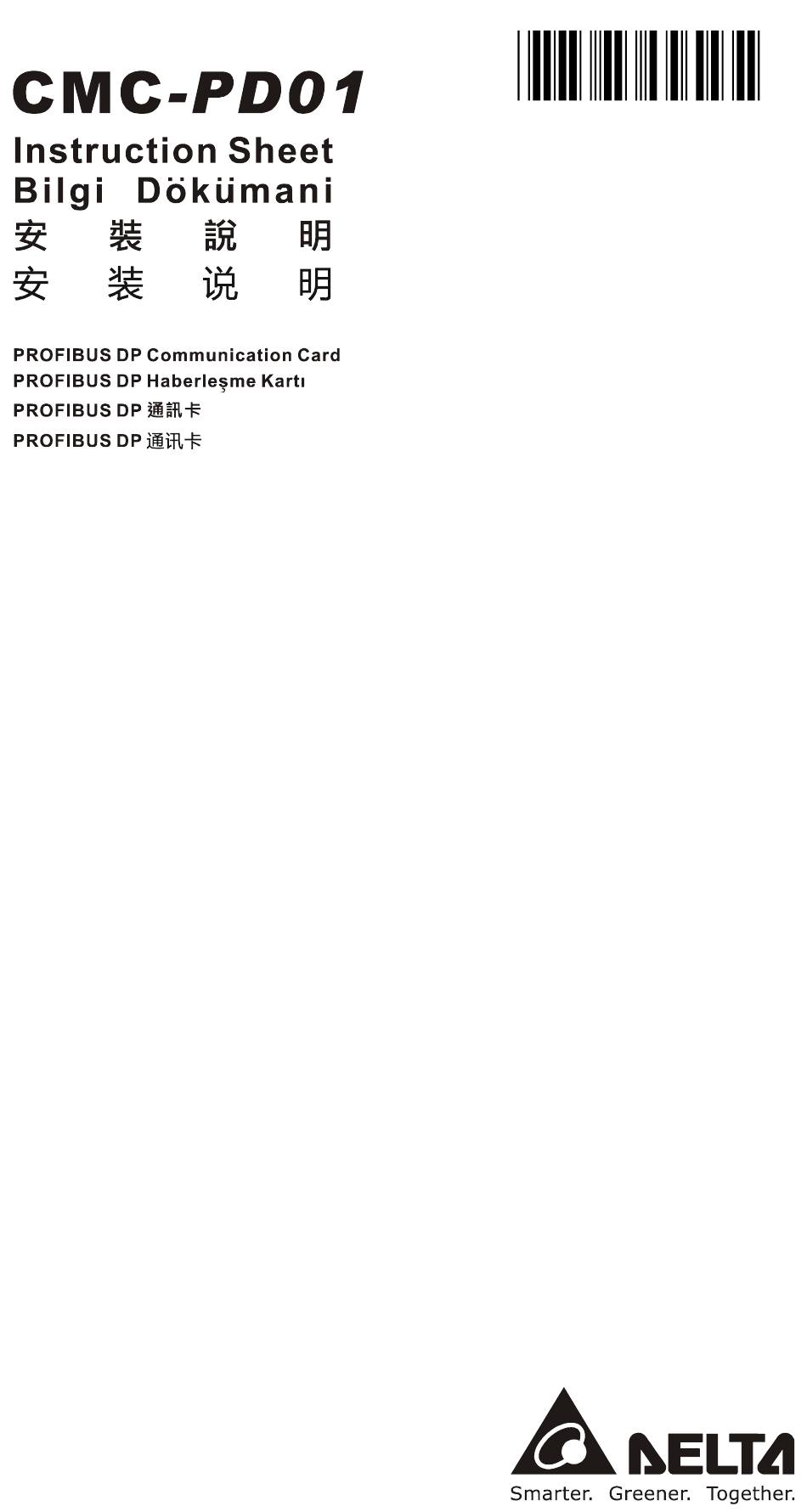

  • Page 1 2014-07-02 5011692604-CPD4...
  • Page 2: Product Profile

    PROFIBUS DP network. No external power supply is required for CMC-PD01. The power will be supplied from the AC motor drive. EN  CMC-PD01 is an OPEN-TYPE device. It should be installed in a control cabinet free of airborne dust, humidity, electric shock and vibration. To prevent...
  • Page 3: Electrical Specification

    Storage: -25 to 70ºC (temperature), 95% (humidity, non-condensing) Shock/vibration International standards: IEC61131-2, IEC68-2-6 (TEST resistance Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)  Installation Note: The contents below are about installing CMC-PD01 on C2000.  PROFIBUS DP Connector PIN name Definition Not defined Not defined Rxd/Txd-P...
  • Page 4 [Figure 2] [Figure 4]  Connecting to PROFIBUS DP Connector Insert the connector to the connection port on CMC-PD01 (see Figure 5), and screw up the screws on the connector to ensure tight connection between CMC-PD01 and the PROFIBUS DP connector.
  • Page 5 when C2000 is working will be invalid. After the value in P09-70 is changed, please shut down C2000 and re-power it to make the parameter valid.  Controlling and Using the I/O on an AC Motor Drive by a Communication Card 1.
  • Page 6: Led Indicator & Troubleshooting

    [Figure 6] [Figure 7] [Figure 8]  LED Indicator & Troubleshooting There are 2 LED indicators on CMC-PD01. POWER LED displays the status of the working power. NET LED displays the connection status of the communication.  POWER LED LED status...
