Bogen CA19 Install Manual

CALL-IN SWITCH

Description

The Bogen Model CA19 is a momentary, rocker-type call switch
designed for use with Bogen Multicom 2000
Systems. The CA19 will facilitate single-push call-in on the same
station and wiring as the Bogen enhanced staff stations (MCESS
or MCWESS) set to Level 4, 5, or 6. The CA19 requires just two
conductors back to the system head-end. The CA19 may also be
used for staff stations set to Levels 1, 2, or 3. Any station using
the CA19 must have an associated speaker.
Requires special version Multicom Software V6.3 (MCPCA25W63).

Operation

When pushed once and released, the CA19 will send two square
wave-pulses simulating the telephone going off-hook and on-
hook twice. This will establish a logged call into the designated
administrative station.The switch may also be used to initiate an
emergency call if pressed twice with a one-second interval
between presses.
Printed in U.S.A. 0011
2000 Bogen Communications, Inc.
54-5958-01R2
Specifications subject to change without notice.
®
Communication
Note
8
OHMS
ROOM SPEAKER
CA19
BLACK
PRESS
RED
TO CALL
GROUND
ANNUNCIATOR
TO
SPEAKER
CONSOLE
SPEAKER

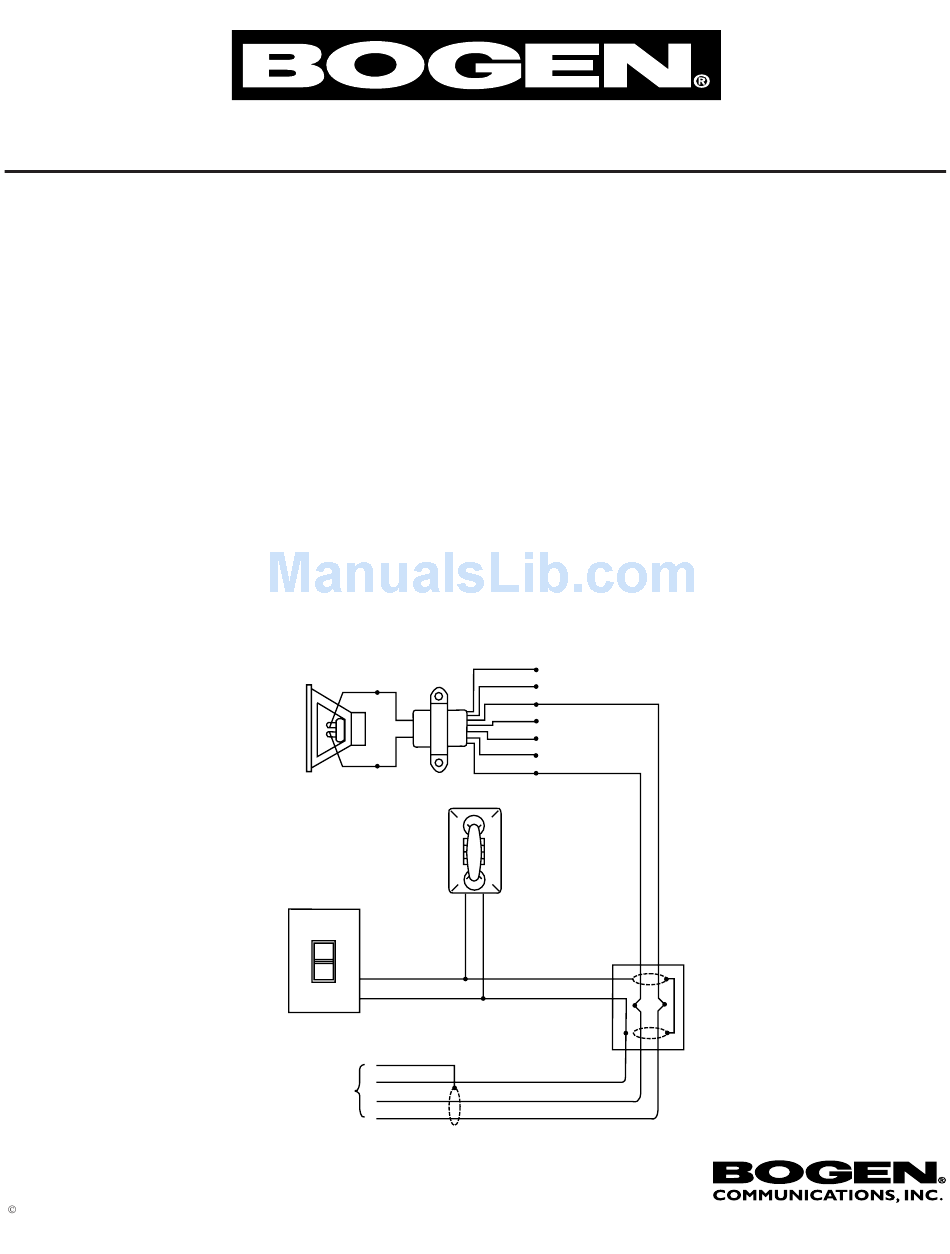

FIGURE - MODEL CA19, CONNECTING DIAGRAM
The CA19 will operate only when the associated staff or enhanced
staff handset in is the on-hook position.

Installation

The CA19 is designed for flush-mounted installation in a single-
gang box. The figure below illustrates the proper wiring
connections. Important: The shield must not be grounded at any
point other than the system head-end.
Observe color coding. The red wire connects to the station
annunciator point while the black wire connects to the station
ground point.
BLU
T 725
1/8 W
TRANSFORMER
GRN
1/4 W
YEL
1/2 W
ORN
1 W
RED
2 W
BRN
4W
BLK
COM
ENHANCED
STAFF
STATION
Model CA19
Note
Caution
JUNCTION
BOX
