Bogen CA15C Specifications

Call-In/Emergency Switch

The Bogen Model CA15C is a momentary, rocker-type call switch designed for use
in Bogen Multicom 2000
the switch signals an administrator to establish a call through a two-way speaker.
When pushed and released four times, the switch initiates an emergency call at the
administrative station.The switch may also function as a single-push emergency
switch, when the staff station is configured with Level 3 access.
The CA15C is designed for flush-mounting in a standard single-gang outlet box.
Figure 1 illustrates the proper connection.The shield must not be grounded to the
building ground at the outlet box or the speaker.
Printed in U.S.A. 0503
© 2005 Bogen Communications, Inc.
54-5961-01C
Specifications subject to change without notice.
® Communication Systems.When pushed and released once,

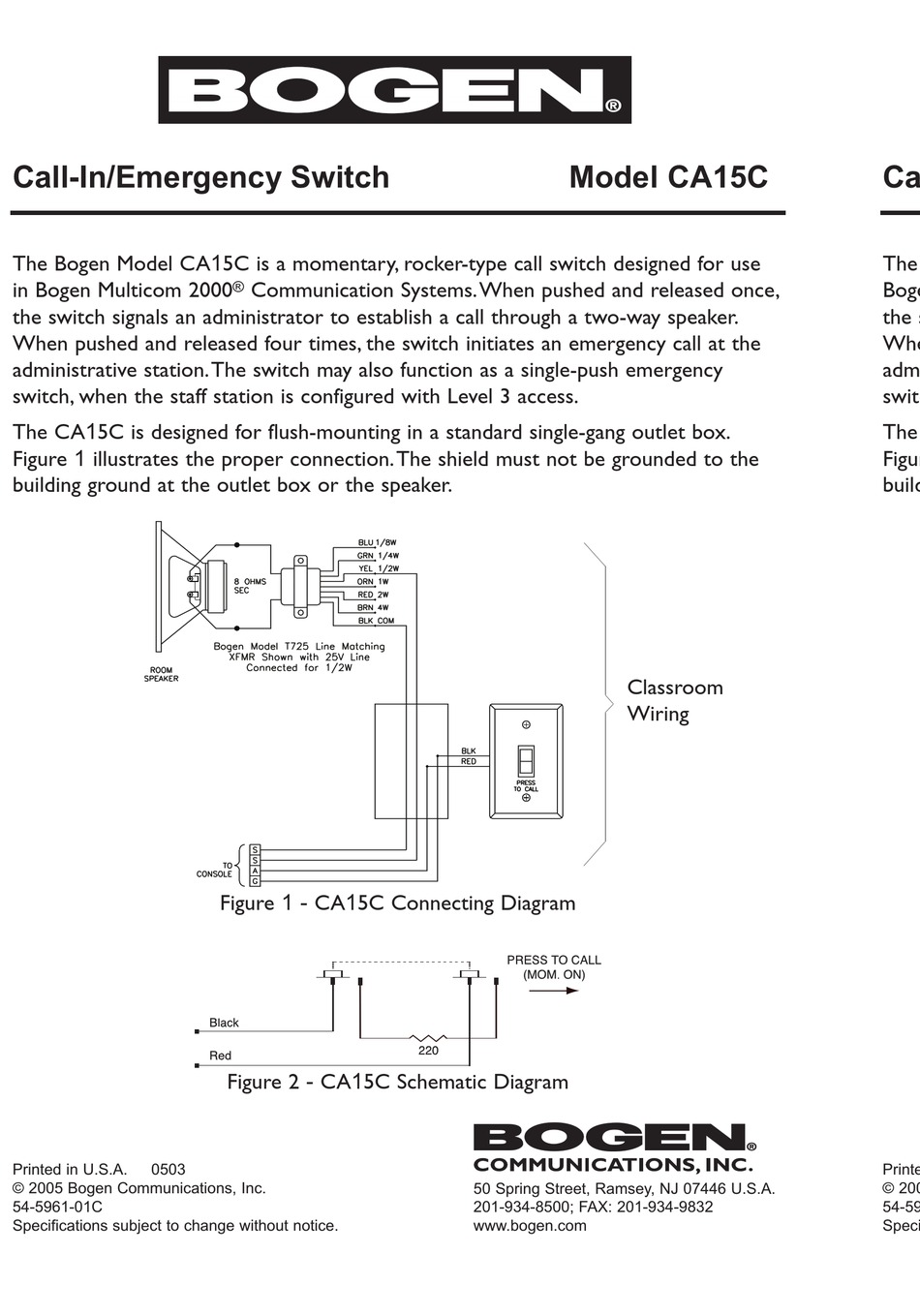

Figure 1 - CA15C Connecting Diagram
