- Page 1 MOTORVAC TECHNOLOGIES INC. SteerClean 1000 Power Steering Service System Operator Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ............................3 Overview ..............................4 System Features and Functions...................... 1-1 Control Panel Features and Functions ..................1-2 Left View ............................1-3 Right View…………………………………………………………………………………………… ……............................... 1-4 Safety Information..........................2-1 Before You Begin ..........................3-1 First Time Operation ........................3-1 Service Procedure.......................... -
Page 3: Introduction
Introduction Congratulations on your selection of the MotorVac STEERCLEAN Service System. By choosing this product, you are acquiring the most technologically advanced method available for power steering service and fluid exchange. The STEERCLEAN System is a self-contained system; designed to service virtually all power steering systems. -
Page 4: Overview
Overview This manual contains all the information you need to use the STEERCLEAN System. Please make sure all technicians using the unit read this manual and have it within easy reach whenever the unit is being used. The following is a quick reference to the information in this manual: System Features and Functions This chapter describes the STEERCLEAN Service System’s Switches, Lights and Connections. -
Page 5: System Features And Functions

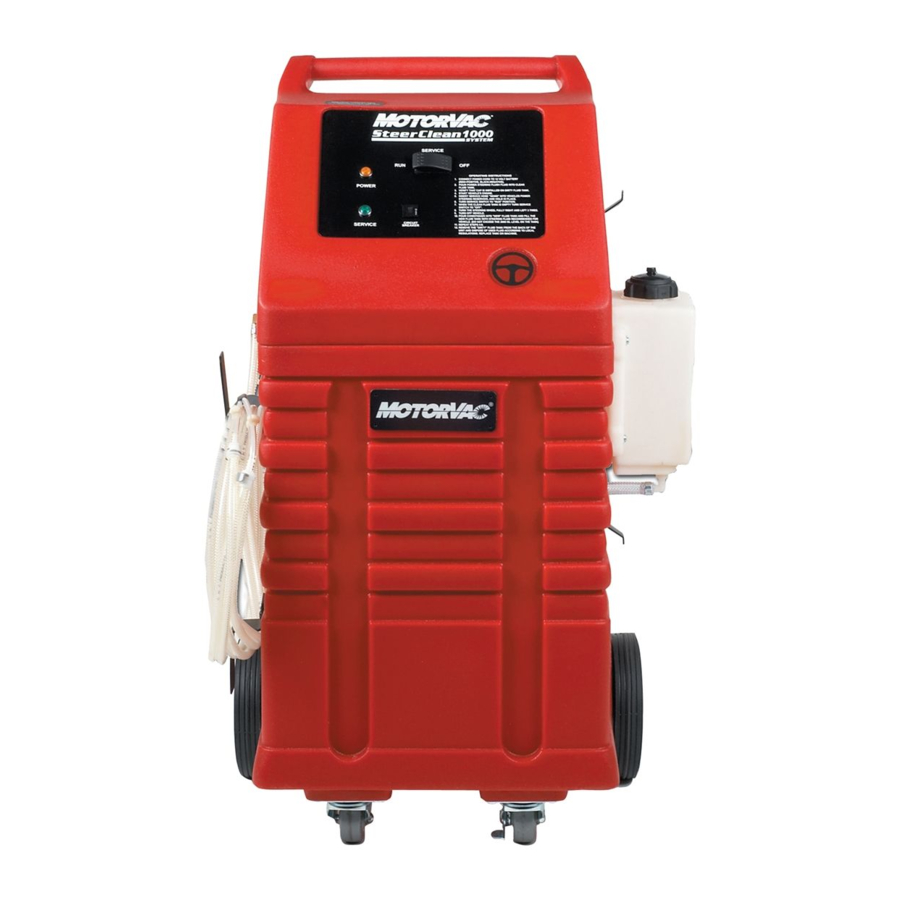

System Features and Functions The front of the MotorVac SteerClean 1000 cabinet showing the control panel, Clean fluid tank, & service hoses. -
Page 6: Control Panel Features And Functions
Control Panel Features and Functions Start Button Press the Start button to begin the service, (or continue the service if paused). POWER light Illuminates when power cord is hooked up to 12V. source. Service light Illuminates when start switch is in “RUN” and pumps are on. Circuit Breaker 15 Amp circuit breaker. -
Page 7: Left View
Left View Waste Tank Captures waste fluid. Service Hose Fluid hose for clean and dirty fluid transfer. Mini-Wand Inserts into Power Steering Fluid Reservoir. -
Page 8: Right View
Right View Clean Fluid tank Holds the cleaner and new fluid. Power Cord Power cord for hooking up to 12 V. Battery... -
Page 9: Safety Information
Safety Information and Precautions /!\ DANGER Vehicle exhaust gases contain Carbon Monoxide, which is a colorless and odorless lethal gas. Only run engines in well-ventilated areas and avoid breathing exhaust gases. Extended breathing of exhaust gases will cause serious injury or death. /!\ WARNING Exhaust gases, moving parts, hot surfaces are present during and after the vehicle’s engine is running. - Page 10 Improperly blocked vehicles can move. Set the parking brake and chock the wheels. Moving vehicles can cause injury. Moving engine parts. The engine cooling fan will cycle on and off depending on the coolant temperature and could operate without the engine running. Wear safety goggles.
-
Page 11: Before You Begin
Before You Begin First Time Operation NOTE This unit has been tested with Power Steering Fluid, and is ready for service after receiving inspection of the unit. Operate in above 50 degrees Fahrenheit area. Remember to send in your warranty card. - Page 12 Beginning the Service…… The MotorVac SteerClean Power Steering Fluid Exchange machine is designed to flush all of the old fluid along with any contaminates out of the entire power steering system, and replace with clean power steering fluid. Performing a Standard Fluid Exchange: Here is the step-by-step procedure for a complete fluid exchange using the MotorVac SteerClean system.
- Page 13 1 – “I’ve never heard of servicing the power steering system.” Your reply: Until recently, there was never a practical cost effective way to replace power steering fluid. With the MotorVac SteerClean System, you actually introduce a cleaning agent first (p.n.400-0160 flush), and then flush the system completely with MotorVac’s(p.n.
-
Page 14: Troubleshooting And Additional Help
In the unlikely event that problems persist with the unit call Technical Support, have your model and serial numbers available before you call. Remember to send in your warranty card. In the U.S. Canada: (800) 841-8810 Contact your local (714) 558-4822 MotorVac distirbutor... -
Page 15: Appendix A - Maintenance
Appendix A - Maintenance Maintenance Procedures The following maintenance procedures should be performed on a routine basis: Carefully clean the exterior with a soft cloth to keep the cabinet looking new. Check all hoses and wires for cuts or frays. Clean the unit’s filter screen after every 100 services or 6 months, which ever comes first. -
Page 16: Maintenance Record
Maintenance Record Use the following table to keep a record of maintenance performed on the unit. DRAIN WASTE CLEANED CLEAN EXT. CHECK HOSES TANK FILTER CABINET AND WIRES OTHER Initial/Date... - Page 17 Standard Adapters 070-0408 Twin Tube 030-0221 FQDC 080-2607 070-0409 ¼” 030-0218 MQDC Mini-Wand Assembly 200-9004...
-
Page 18: Appendix C - Parts
Disposal hose assembly 200-8917 Operators Manual 010-5627 Mini-Wand (Standard) ORDERING PARTS Parts for the unit may be ordered by calling Customer Service, have your model and serial numbers available: inside U.S.A. Canada: (800) 841-8810 Contact your local (714) 558-4822 MotorVac distributor...
