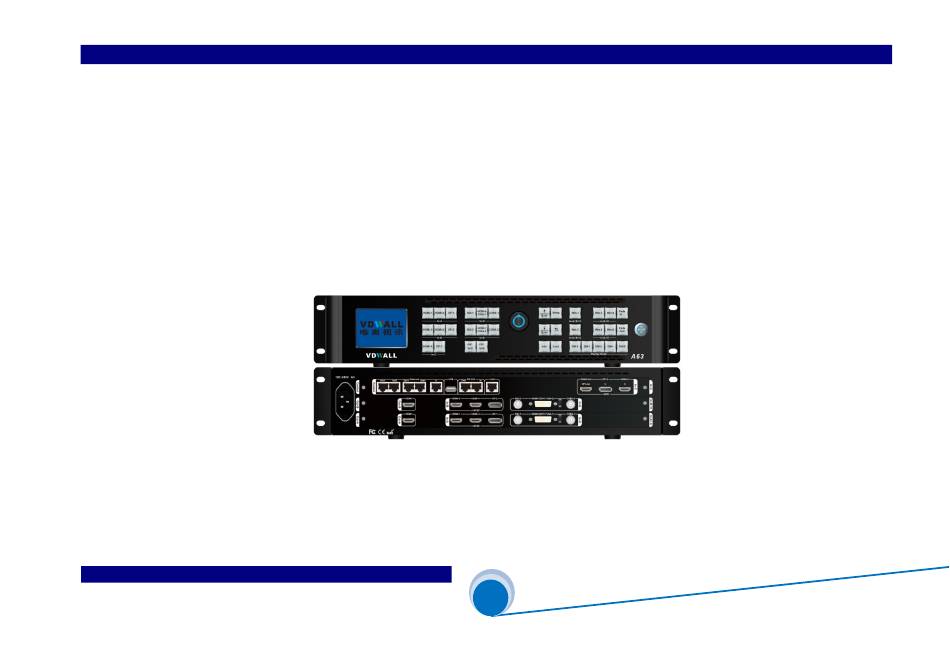

Shenzhen VDWALL A63 Quick Setup Manual

Configure mode 0(cfgm0）
Hide thumbs Also See for A63:

Advertisement

Quick Links

Download this manual
____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0)
____
SHENZHEN VDWALL CO.,LTD
th
ADD: Room 1001,10
Floor, Tower 4, Fangda-City, Longzhu 4
Nanshan District, Shenzhen, China
A63
User Quick Setup Guide
@Configure Mode
（Version 1.1）
www.videowall.cn
th
Road,
1
TEL: 0755-26750210
0（CfgM0）
Shenzhen VDWALL Co.,Ltd
2020.03

Advertisement

loading
Need help?

Need help?

Do you have a question about the A63 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen VDWALL A63

Summary of Contents for Shenzhen VDWALL A63

  • Page 1 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ User Quick Setup Guide @Configure Mode 0（CfgM0） （Version 1.1） Shenzhen VDWALL Co.,Ltd 2020.03 SHENZHEN VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road, Nanshan District, Shenzhen, China...
  • Page 2 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 1. Front Button Description Multi-window operation Input signal selection Menu setup Display mode button SHENZHEN VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road, Nanshan District, Shenzhen, China...
  • Page 3 Buttons Description HDMI-1、HDMI-2、 DP-1、 A63 contains 5 input cards， identified as： In-A、 In-B、 In-C、 In-D and In-E. In-A、 In-B can access SDI-1、HDMI-6、CVBS-1、 4K or 2K signal， In-C only support 4K2K signal， In-D、 In-E support 2K signal. Press corresponding HDMI-3、HDMI-4、 DP-2、...
  • Page 4 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ Category Buttons Description Setup Menu button. When A63 in operation mode，press this button to enter menu setup Knob button, rotate this button to change configuration value or press this button to confirm and apply...
  • Page 5 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 2. Back Panel Port Description GenLock Cascading port Communication port Output port Input port 1） Input signal port A63 can build in 5 input cards utmost：  In-A、In-B is 4K input card，each card contains HDMI2.0×2 and DP1.2×1，support 4K2K_60Hz UHD Signal and 2K HD signal access in ...
  • Page 6 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 3） Communication port  LAN：TCP / IP Enthernet control port  USB and RS232 control port 4） GenLock Cascading port  support multi-device cascading，realize extended input and output resolution driving ...
  • Page 7 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 3. In CfgM0 Mode, A63 Image Processing Procedure S1: Input signal selection S2: Window signal selection S3: Window size&position setup 3840 HDMI-1 4K input 1 from 3 HDMI-2 Win1...
  • Page 8 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ Description： 1） image processing procedure is divided into 3 main steps： S1：Select input signal channel for input card S2：Select signal source for Multi-window S3：Adjust size&position of Multi-window 2） Select input signal channel for input card（S1）...
  • Page 9 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 4） Adjust size&position of each window（S3） 4.1）Out – A display Win2、Win5、Win6 image 4.2）Out – B display Win1、Win3、Win4 image 4.3）In CfgM0 mode，just set Win2、Win5、Win6 image size&position，among which：  Win2 can randomly set image size&position within 4K2K Win6 can set image size&position within 2K2K...

  • Page 10: Menu Setup

    ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 4. Menu Setup supports 3 configuration mode： 8. System Configuration mode 0（CfgM0） ------ Switcher mode -------------------------------------- Configuration mode 1（CfgM1） ------ Mosaic mode 8.1 Config Mode CfgM1 CfgM0 Configuration mode 2（CfgM2）...
  • Page 11 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ （Step1）：Input And Output Signal Conection 1.1） Connect input signal to input card 1.2） Connect OUT-B to main display device（LED 4K controller or 4K LCD etc,） 1.3） Connect OUT-A to 4K LCD monitor 1.4）...

  • Page 12: Step3）：Select Input Signal

    ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ （Step2）：PowerOn Processor In-A：HDMI1 2.1） power on, wait for boot up In-B：HDMI3 2.2） As Figure 4-3，Configuration mode 0 boot up image In-C：HDMI5 In-D：HDMI6 PIP：off 2.3） “ Win-M4 ” is the window group of current display，Out-A output image In-E：HDMI7...
  • Page 13 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ （Step4）：Window Composition Setup 4.1） Press Setup 、↓、↑ button enter menu 3.1 Win Mode ” Display mode 4.2） Press DM-0 、DM-1 or DM-2 to select target display mode, 3.Out-A Win Picture DM0 As the Figure 4-4，A63 current display mode is “DM-0”...
  • Page 14 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ （Step5）：Multi-Window Signal Source Selection 5.1）Enter menu “3.2 Win2 Source”， Display mode rotate Knob to select Win2 signal source 3.Out-A Win Picture 5.2）Enter menu “3.3 Win5 Source”， ------------------------------------------ rotate Knob to select Win5 signal source 3.1 Win Mode...
  • Page 15 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ （Step6）：Multi-Window Size&Position Setup 6.1） in display mode 0（CfgM0），can adjust Win2、Win5、 3840 Win6 size&position (0, 0) Win2 V_Start 6.2） Window position is identified by coordinates, the start point is Width top left(0.0), position range within 3840×2160，...
  • Page 16 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 6.6） Enter menu “3.6 Pos.&Size”，as Figure 4-7 Selected window Display mode 6.7） press Win-2、Win-5、Win-6 button to select target window （As Figure 4-7：the selected window is Win2） 3.6 Pos.&Size DM0/Win2 --------------------------------------------- 6.8）Press DM-0、DM-1、DM-2 、DM+ to select display mode...
  • Page 17 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ （Step7）：Input Signal Image Cropping 7.1）Win2 can arbitrarily crop 4K2K input image at any size&position (0, 0) 3840 7.2）As the Figure4-8, the input image size in red frame is 3840×2160, In_H_Start the size&position of cropped image in red dot frame are defined by...
  • Page 18 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 0 (CfgM0) ____ 7.3） Enter menu “3.6 Pos.&Size”，as Figure 4-9 Display mode Selected window 7.4） Press Win2 button to set target window,（as the Figure 4-9：win2） 3.6 Pos.&Size DM0/Win2 A63 can crop any size&position of input signal --------------------------------------------- 7.5）...
  • Page 19 A63 Display Mode Switching （1） The main operation to A63 is Display Mode switching in switcher mode 1.1） “Seamless switching”operation illustration  Press button DM-0、DM-1、DM-2，Out-A and Out-B will instantly apply new display mode without latency. Out-B is main output，Out-A is preview output ...
  • Page 20 4 Menu Setup  A63 in switcher mode, usually need preset several display modes. Refer to chapter to configure different display mode. In pursuit of fast save and apply new display mode, we may use mode duplication function to copy current DM to target DM, then modify current mode efficiently ...
