Shenzhen VDWALL A63 Quick Setup Manual

Configure mode 1(cfgm1）
Hide thumbs Also See for A63:

Advertisement

Quick Links

Download this manual

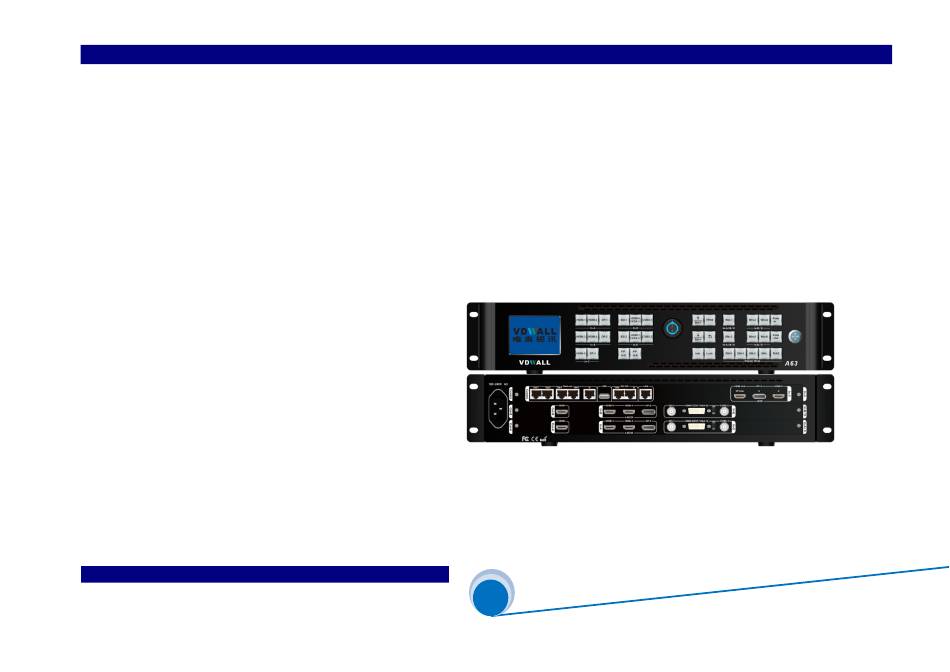

____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1)
____
A63
User Quick Setup Guide
@Configure Mode 1（CfgM1）
（Version 1.1）
Shenzhen VDWALL Co.,Ltd
2020.03
VDWALL CO.,LTD
www.videowall.cn
th
th
ADD: Room 1001,10
Floor, Tower 4, Fangda-City, Longzhu 4
Road,
1
Nanshan District, Shenzhen, China
TEL: 0755-26750210

Advertisement

loading
Need help?

Need help?

Do you have a question about the A63 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen VDWALL A63

Summary of Contents for Shenzhen VDWALL A63

  • Page 1 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ User Quick Setup Guide @Configure Mode 1（CfgM1） （Version 1.1） Shenzhen VDWALL Co.,Ltd 2020.03 VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road, Nanshan District, Shenzhen, China...
  • Page 2 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 1. Front Button Description Multi-window operation Input signal selection Menu setup Display mode button VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road, Nanshan District, Shenzhen, China...
  • Page 3 ____ Category Buttons Description HDMI-1、HDMI-2、 DP-1、 A63 contains 5 input cards，identified as：In-A、 In-B、 In-C、 In-D and In-E. In-A、In-B can SDI-1、HDMI-6、CVBS-1、 access 4K or 2K signal，In-C only support 4K2K signal，In-D、In-E support 2K signal. Press HDMI-3、HDMI-4、 DP-2、 Input signal corresponding button to select input channel for each input card, if selected channel have valid SDI-2、HDMI-7、CVBS-2、...
  • Page 4 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ Category Buttons Description Setup Menu button. When A63 in operation mode，press this button to enter menu setup. Knob button, rotate this button to change configuration value or press this button to confirm and apply...
  • Page 5 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 2. Back Panel Port Description GenLock Cascading port Communication port Output port Input port VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road, Nanshan District, Shenzhen, China...

  • Page 6: Communication Port

    ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 1） Input signal port A63 can build in 5 input cards utmost：  In-A、In-B is 4K input card，each card contains HDMI2.0×2 and DP1.2×1，support 4K2K_60Hz UHD Signal and 2K HD signal access in ...
  • Page 7 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 3. In CfgM1 Mode, A63 Image Processing Procedure S1: Input signal selection S2: Window signal selection S3: Window Size&Position setup 3840 HDMI-1 4K input 1 from 3 HDMI-2 Win1...
  • Page 8 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ Description： 1） image processing procedure is divided into 3 main steps： S1：Select input signal channel for input card S2：Select signal source for Multi-window S3：Adjust Position&Size of Multi-window 2） Select input signal channel for input card（S1）...
  • Page 9 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 4） Adjust Position&Size of each window（S3） 4.1） Out – A display Win1 、Win3 4.2） Out – B display Win2 、Win5 4.3） In CfgM1 mode，Win1、Win2、Win3、win 5 can randomly set Position&Size within 4K2K VDWALL CO.,LTD...

  • Page 10: Menu Setup

    ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 4. Menu Setup supports 3 configuration mode： 8. System Configuration mode 0（CfgM0） ------ Switcher mode -------------------------------------- Configuration mode 1（CfgM1） ------ Mosaic mode 8.1 Config Mode CfgM0 CfgM1 Configuration mode 2（CfgM2）...
  • Page 11 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ （Step1）：Input And Output Signal Conection 1.1） Connect input signal to input card 1.2） Connect OUT-A to unit screen 1 1.3） Connect OUT-B to unit screen 2 1.4） Usually，system connection as Figure 4-2：...

  • Page 12: Step3）：Select Input Signal

    ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ （Step2）：Power On Processor 2.1） power on, wait for boot up In-A：HDMI1 2.2） As Figure 4-3，Configuration mode 1 boot up image In-B：HDMI3 In-C：HDMI5 2.3） Win1 select In-A as signal source In-D：HDMI6...
  • Page 13 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ （Step4）：Window Source Selection 4.1） Press Setup 、↓、↑ button enter menu” 3.2 Win1 Source ” , rotate Display Mode Knob to select Win1 signal source 3. Out-A Win Picture 4.2）Enter menu” 3.3 Win3 Source ” , rotate Knob to select Win2 signal source ------------------------------------------ 3.1 Null...
  • Page 14 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ （Step5）：Multi-window Position&Size Setup 5.1） in display mode 1（CfgM1），Win1、Win2 Win3、Win5 Position&Size is adjustable，among which： 3840 Out-A display Win1+Win3 (0, 0) Win1 Out-B display Win2+Win5 V_Start Width Win3 5.2） Window position is identified by coordinates, the start point is H_Start top left(0.0), position range within 3840×2160，...
  • Page 15 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 5.6）Enter menu “ 3.6 Pos.&Size ”，as Figure 4-6 Selected window Display mode 5.7）Press Win-1 or Win-3 button to select target window （ As Figure 4-6：the selected window is Win1）...
  • Page 16 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ （Step6） ：Input Signal Image Cropping 6.1）Win1、Win2 can arbitrarily crop 4K2K input image at any Position&Size (0, 0) 3840 6.2）As the Figure 4-7, the input image size in red frame is 3840×2160, In_H_Start the Position&Size of cropped image in red dot frame are defined by...
  • Page 17 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ 6.3） Enter menu “3.6 Pos.&Size”，as Figure 4-8 Display mode Selected window 6.4） Press Win-1 button to set target window,（as the Figure 4-8：win1） A63 can crop any Position&Size of input signal 3.6 Pos.&Size...
  • Page 18 5. A63 Common Operation （1） A63 Display Mode Switching A63 in Mosaic mode，user may preset several display mode. For instance, Out-A、Out-B jointly display one 8K2K image or 2 4K2K image separately  Press button DM-0、DM-1、DM-2，Out-A and Out-B will instantly apply display mode without any latency.
  • Page 19 ____________________________________________________ A63 User Quick Setup Guide @Configure Mode 1 (CfgM1) ____ （3） Assign image on top or at bottom  Out-A display Win1 and Win3 image，directly press Win-1 button to set Win1 on top，thereafter, Win3 will be at bottom. Similarly, press Win-3 button，Win3 will be on top, hence, Win1 will be on top ...
