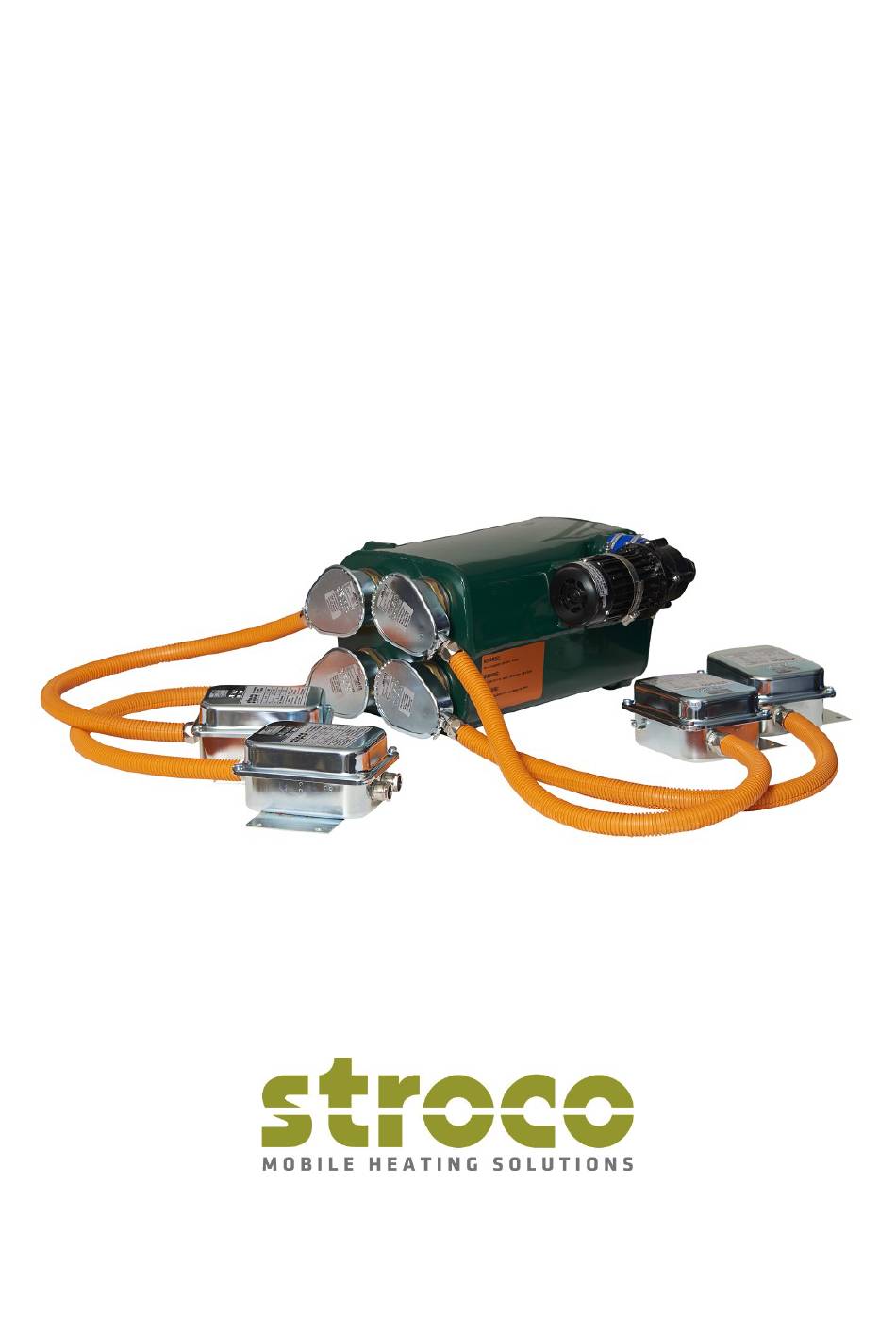

- Page 1 MANUAL FOR STROCO PURE ELECTRIC HEATER 60 kW STROCO ApS, Energivej 3, DK-6800 Varde, tel. +45 86961066 GB 05/21 This manual is also available at www.stroco.dk...
- Page 2 IMPORTANT In order to maintain warranty and warranty rights, the following must at least be met. 1. Installation is performed as described in this manual. 2. Service and repair work must be carried out professionally correctly. 3. Only original spare parts shall be used. 4.
-
Page 3: Table Of Contents
CONTENTS Page: Description....................... 4 Built-in dimentions..................5 Marking STROCO Electric heater………………………………………… 6 Electrical installation and settings..............7 Coupling scheme................... 8-9 Warranty conditions..................10 Dealers......................11 PAGE 3... -
Page 4: Description
Heat Electrical power The Stroco Electrical heater is used to heat the vehicle during parking and day to day travel on hy- brid or all-electric vehicles. STROCO Electrical heater is mounted in the vehicle's existing heating system and can heat the driver's area, passenger space and engine. STROCO Electrical heater has built-in heating elements operating thermostat and safety thermostat. -
Page 5: Built-In Dimentions
BUILT-IN DIMENSIONS FOR 4 X 15 kW 672V DC Pos. Description Part number Heating element 15 kW 672V DC 11.936-1 VP 6000 L/h 24V DC 7A 0,4 bar 35.470 Multi 2pole pin plug sleeves 6,3mm 13.561 Thermostat EGO 37-85°C/110° 11.926 Terminal Block 11.915... -
Page 6: Marking Stroco Electric Heater
MARKING STROCO ELECTRIC HEATER Label on connection box PAGE 6... -
Page 7: Electrical Installation And Settings
Switch of the vehicle. 3 Level sensor for low water level of heating circuit. Level sensor shall be used to block activation of heating elements when water level is low to prevent damage on the heating elements. (Not supplied by Stroco). PAGE 7... -
Page 8: Coupling Scheme
COUPLING SCHEME FOR 4 X 15 kW 672V DC 15 kW PAGE 8... - Page 9 COUPLING SCHEME FOR 4 X 15 kW 672V DC 15 kW PAGE 9...
-
Page 10: Warranty Conditions
WARRANTY CONDITIONS FOR STROCO HEATERS STROCO heaters and parts are covered by 24 months warranty. The warranty is valid from the date of installation, however, no more than 36 months from the date of delivery. However, the warranty only applies if the guidelines are followed: ... -
Page 11: Dealers
DEALERS DANMARK, Denmar k: STROCO ApS Tel. +45 86 96 10 66 Energivej 3 E-mail DK-6800 Varde info@stroco.dk ENGLAND: GRAYSON THERMAL SYSTEMS Tel. +44 121 700 5600 257 Wharfdale Road E-mail Tyseley info@graysonts.com GB-Birmingham B11 2DP FINLAND: EL-CAR OY Tel. +358 09 389 4995 MUICON OY Tel.
