- Page 1 Envy Operation and adjustment instructions...
-
Page 2: Quick Start
300 feet per second). Depending on what modes of fire are allowed at the field where you are playing (semi-automatic, rebound, etc.) you may need to adjust the Envy ’s firing mode. See the Electronic Adjustment section for more information. -
Page 3: Table Of Contents
Firing Modes / Dwell MARKER. • KEEP YOUR FINGER OFF THE TRIGGER UNTIL Unloading / De-Gassing READY TO SHOOT. NEVER POINT THE ENVY Field Stripping ANYTHING YOU DON’T INTEND TO SHOOT. • KEEP THE ENVY ON SAFE (POWER OFF) UNTIL Advanced Maintenance READY TO SHOOT (SEE QUICK START). -
Page 4: Getting Familiar

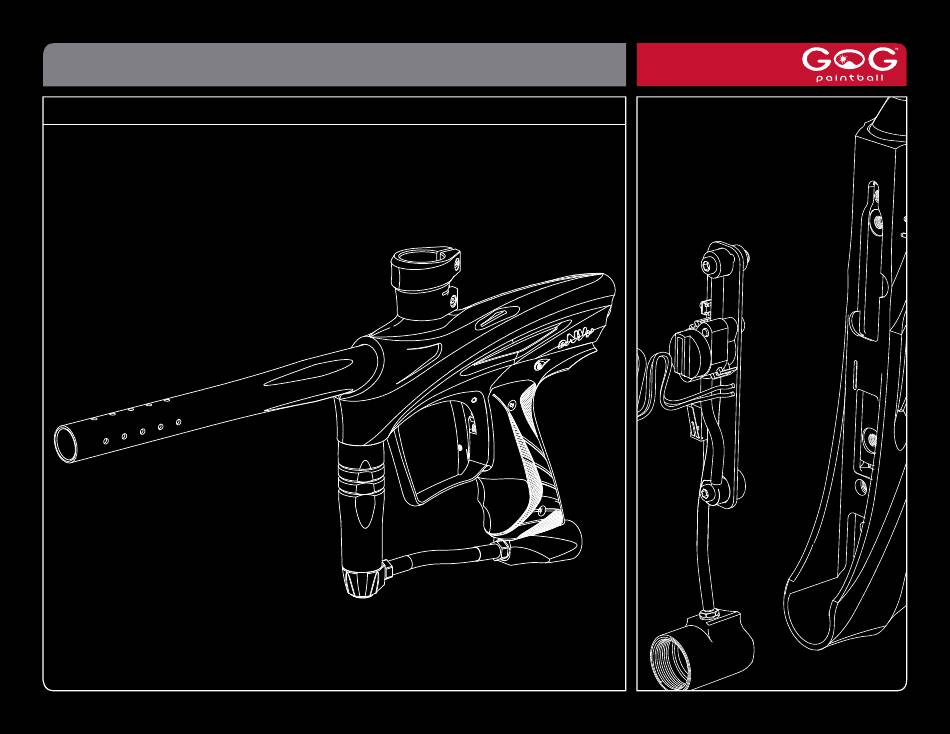

Nitrogen/Compressed air should neglect your Envy . If you take care RATE OF FIRE: 11 bps of it off the field, your Envy will take care OPERATION: Low pressure electropneumatic of you on the field. For best performance, clean and grease your Envy frequently. -
Page 5: Barrel Blocker / Hopper
Its low-force bolt will often prevent paintballs from being chopped if the hopper is not able to load paintballs as fast as the Envy being fired. If you want to realize the Envy ’s maximum firepower potential, especially if it is upgraded... -
Page 6: Gasses
Always turn-on or screw-in a compressed air system or CO slowly, so that the valve opens slowly, and the gas pressure inside the marker is raised smoothly. Be gentle to the internals of your Envy and they will reward you with a long service life. - Page 7 J-shaped tube that draws gaseous CO from the top of the tank when it is in a horizontal position. Anti-siphon tubes must be professionally installed, to ensure that critical safety checks are performed during valve installation. If using an anti-siphon tank, the Envy ’s IMPORTANT stock bottom-line ASA fitting should be replaced with an ASA that will place the tank completely hori- zontal.
-
Page 8: Battery
Envy reliably. Some NiCD “9v” rechargable batteries actually operate at 7.2 volts. These types of batteries will not work well with the Envy Any time the Envy exhibits erratic performance, drops velocity or skips shots while rapid firing, does not shoot or does not turn on, the first step in troubleshooting should always be to replace the battery with a brand-new, name-brand alkaline battery. -
Page 9: Paint
If velocity adjustment is necessary, Use a 5/32-inch allen wrench on the adjuster in the bottom of the vertical regulator, turn clockwise to increase the velocity/pressure, and counter-clockwise to decrease. Take three or four shots after every adjustment to allow the gas pressure inside the Envy to stabilize. -
Page 10: Trigger Adjustment
FIG. 8 TRIGGER ADJUSTMENT POINTS The length of the Envy trigger pull is fully adjustable. A setscrew in the lower half of the trigger limits how far back the trigger can be pulled. Turning the screw clockwise with a 0.05-inch allen wrench will shorten the trigger pull. -
Page 11: Firing Modes / Dwell
With the marker unloaded and de-gassed, remove and unplug the 9-volt alkaline battery. Plug the battery back in while holding the power button down. The Envy will indicate that it has changed to HPA mode by double-blinking the power button LED and turning off. -
Page 12: Unloading / De-Gassing
BEFORE PERFORMING MAINTENANCE Dry-fire 2 or 3 shots in a safe direction to ensure that no paintballs remain in the Envy PROCEDURES. Continue to dry fire the Envy in a safe direction while turning off or unscrewing the HPA system or CO tank, until all of the gas pressure inside has been released. -
Page 13: Field Stripping
Slide the bolt stop onto the bolt from the rear. Slide the rear of the bolt into the bolt sleeve. Hold this entire assembly vertically with the front of the bolt pointing upward, and insert it up into the back of the Envy . -
Page 14: Advanced Maintenance
Reach the long end of a 1/8-inch allen wrench through the access hole in the top tactical rail, down into the head of the vertical ASA screw. Unscrew the the two gas-through banjo bolts (indicated with arrows in Figure 15) using a 1/8-inch allen wrench. If the Envy... - Page 15 Both rubber ball detents should extend into the breech and show no rips or tears. If they must be replaced, they may be pried out with an o-ring pick, and pressed into place with a small allen wrench. If the Envy has been upgraded with a circuit board featuring an anti-chop eye, holding the breech and receiver upside down will help the anti-chop circuit board remain seated while the parts are being reassembled.
-
Page 16: Vertical Regulator
FIG. 17 REGULATOR DISASSEMBLY REGULATOR SERVICE Although explained here, regulator service should only be performed by a GOG Paintball trained airsmith. With the marker unloaded and de-gassed, unscrew the regulator from the marker and remove the grip frame following the instructions in this manual. Take care not to lose the filter screen that sits inside the vertical regulator’s ASA connection. - Page 17 EQUIPMENT FAILURE OR INJURY AND sure to inspect, and if necessary, replace the inlet filter in the side of the velocity adjuster. INVALIDATING THE GOG PAINTBALL WARRANTY. The vertical regulator is reassembled in the reverse order of disassembly. The piston slides into the regulator body wide end first, followed by the regulator spring.
-
Page 18: Troubleshooting / Warranty
• Pneumatic hoses may be loose, damaged or not fully connected. Replace hoses with genuine GOG Paintball hoses only. • Hose has been disconnected and re-attached. Replace with a new GOG Paintball internal hose. Removing a hose streches it so that it cannot be re-used without leaking. MARKER IS LEAKING DOWN THE BARREL •... - Page 19 • Battery may be low. This will be most noticeable with velocity dropping and then entire shots not firing during rapid fire. Replace battery with a new name brand alkaline battery. • Regulator may be contaminated or damaged. Follow the instructions in this manual or see a GOG Paintball technician for service. • Liquid CO may be entering the regulator –...
- Page 20 See the trigger adjustment section of this manual for guidance. GOGPaintball.com • Trigger switch may be damaged. Contact your dealer or GOG Paintball technical support. • Regulator output pressure may be too high. Adjust the velocity to its lowest limit, then WARRANTY follow the velocity adjustment procedure in this manual.
-
Page 21: Parts Diagrams
P ART S DIA G RAMS OB9015 - REGULATOR ASA O-RING OM7014 - SPRING PLATFORM O-RING OU7010 - REAR SEAL XTC105 - ENVY REGULATOR VRG102 - SPRING PLATFORM BODY SPRING PLATFORM OU9006 - VELOCITY ADJUSTER O-RINGS VELOCITY OM7006 - VRG. SEAL... - Page 22 P ART S DIA G RAMS BOLT SLEEVE ASSEMBLY BOLT ASSEMBLY BOLT STOP ASSEMBLY BREECH ASSEMBLY GOGpaintball.com...
- Page 23 P ART S DIA G RAMS ENV104 OB7018 OB7022 ENV-102 XTC110 OB7018 OB9017 OU7010 OH7017 OB7018 XTC109 OU7014 OH7M06 OU9015 GOGpaintball.com...
- Page 24 P ART S DIA G RAMS SOL302ASM SSB003 ENV136 SSB003 HBR476 SSB002 9v ALKALINE SSB002 GOGpaintball.com...
- Page 25 WHEN INSTALLING ON/OFF BUTTON DOWN IN FROM THE BE SURE THAT THE LINE IN THE POWER SYMBOL TOP. IS POINTING UP. PIN018 - ENVY TRIGGER PIN ENV106 - ENVY GRIP FRAME WHEN INSTALLING SCREW ONLY EXPOSE ONE THREAD AT THE TOP...
- Page 26 P ART S DIA G RAMS NUT003 NUT003 ENV115 ENV111 SSC008 SSC008 ENV111 ENV102 ENV101 GOGpaintball.com...
- Page 27 Envy Manual V1.02 © Copyright 2010, GOG Paintball, SA, all rights reserved. GOGpaintball.com GOGpaintball.com Envy, GR33SE, GOG, GOG Paintball and the GOG Paintball logos are trademarks or registered trademarks of GOG Paintball, SA.
