SciCan STATIS Quick Reference Manual

STATIS
®
Please consult Operator's Manual before using the devise(s).

Installation

Checking the pressure readings:

1. Place a handpiece coupling onto an air pressure gauge, if available.
2. Place the gauge onto the dental unit tubing.
3. Shut off the water and place your foot onto the rheostat.
4. Adjust the drive air, chip air & water on the unit, as necessary, to reach the recom-
mended pressure readings.
Pressure readings for the STATIS SL & ML:
• Drive air = 2.1-4.2 bar (30-60 p.s.i.)
• Recommendation = 2.8 bar (40 p.s.i.)
• Return air < 0.5 bar (7 p.s.i.)
• Water = 0.8-2.5 bar (11-36 p.s.i.)
• Spray air = 1.0-4.0 bar (14-57 p.s.i.)
○ The minimum amount of water required for spray cooling is
50 mL per min. An insufficient amount of water may cause
overheating of the tooth.
Checking the STATIS SL & ML coupling:
All 5 O-rings must be in place and should not be damaged. Missing or damaged O-rings
should be replaced, or they may result in premature failure or negatively affect handpiece
performance.
Did you select the right coupler for your tubing?
Manufactured by:
SciCan GmbH
Wangener Strasse 78 Tel.: +49 (0)7561 98343 - 0
88299 Leutkirch GERMANY Fax: +49 (0)7561 98343 - 699
Handpieces
Connex LED
6 pin, MULTIflex style
coupling with LED bulb,
anti retraction valve.
- Quick Reference Guide
Important notes for burs & diamonds:
Diamond and carbide use: Only use burs that have shafts compliant with IS0 1797-1
type 3, made from steel or tungsten carbide and that meet the following criteria:
• Shaft diameter from 1.59 -1.60 mm.
• Overall length up to max. 25 mm.
• Shaft clamping length of at least 11 mm.
• Cutting edge diameter up to max. 2 mm.
• Short shank burs can be used with the STATIS SL 101.1 model.
S10010
6 pin, coupling with
light connection, anti
retraction valve.

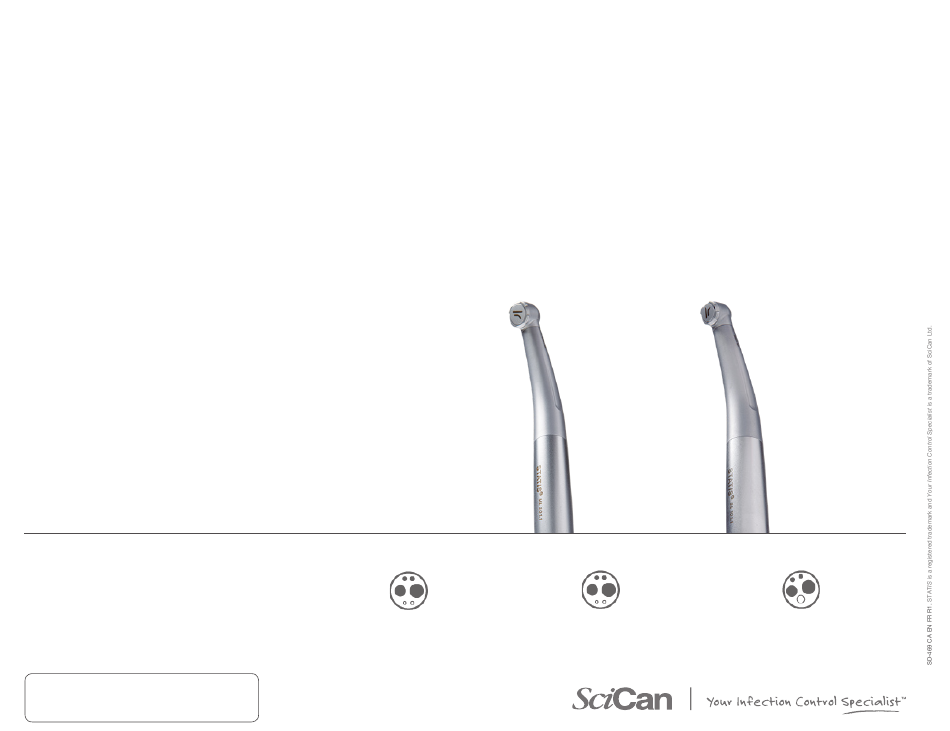

STATIS ML
S10000
Connex L
S10002
STATIS SL
S10001
Connex GR
S11002
5 hole, coupling with
fiber optic glass rod,
anti retraction valve.
