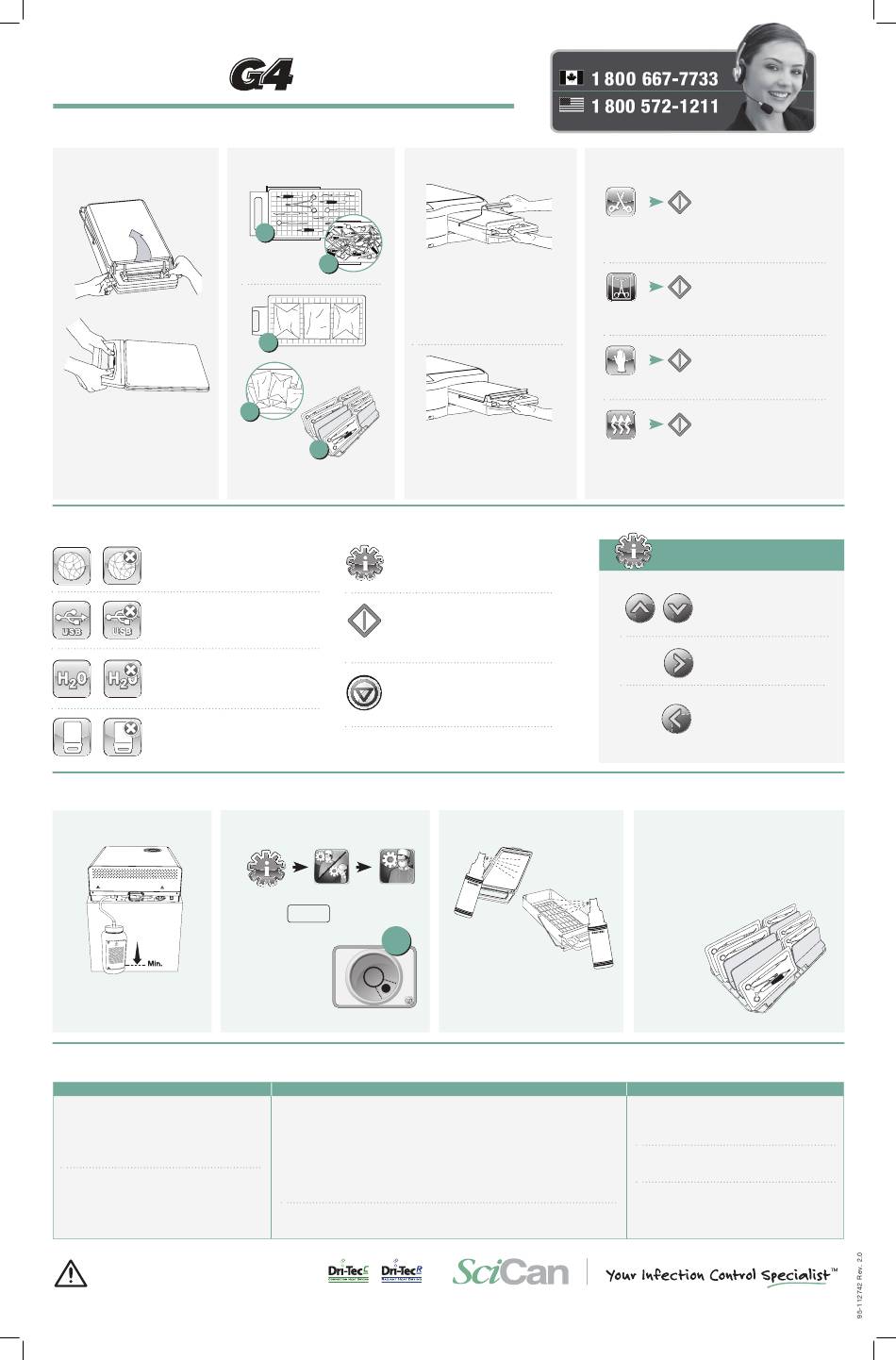

SciCan STATIM G4 Operator's Manual

StatIM
®
generaL USage
1
1
opening / Closing
the Cassette
5000 model
2000 model
With thumbs on the thumb
pads, push down, pulling up
with forefingers until lid opens.
toUCh SCreen menU oPtionS
network Connectivity –
Indicates you are connected to
the network.
USB Storage Device –
Access last 5 cycle data and
last 5 cycle faults. Indicator also
confirms proper USB connection.
Water Level / Quality Status** –
Indicator will notify user if water
is of sufficient quality or quantity
to proceed with sterilization.
Cassette Status** – Indicator
will notify user if cassette has
been properly inserted.
Drying PerformanCe
1
1
Set Up Waste Bottle
Fill this bottle with water to
the minimum level and set it
on, or close to the floor.
generaL maintenanCe
Dai L y
Water
• Replace water as needed.
Reservoir • For ophthalmic use, drain at the
end of every workday, leave empty,
and refill at the start of the next
workday.
Waste • Empty the waste bottle every time
you refill the water reservoir.
Bottle
• Fill the bottle with water, up to the
MIN line marking. You may also add
some chlorine-free disinfectant.
Best Practices: SciCan recommends the final user carefully
choose the most appropriate sterilization cycle according
to the recommendations of their leading infection control
authorities and local regulatory guidelines / recommendations.
STATim is a registered trademark and STAT-DRI, Dri-Tec
Operator's Manual should be consulted before using this autoclave
2
2
filling Cassette
4
2000 and
8
5000 models
4
2000 model
8
4
5000
model
Do not overload cassette.
User/technician menu – Access
unit information and menus to
change unit settings.
Start Button – Button is
enabled once a cycle type has
been selected and used to begin
a cycle.
StoP Button – Button is enabled
after a cycle has started and used
to interrupt a cycle.
** NOTE: Sterilization cycle will not begin if there is an error
four steps to obtaining optimal drying results
2
2
Levelling your Unit
1.
2. Scroll to Level and select.
3. Adjust the leveler
4
feet to move the
bubble. Level
will change from
red to green.
to ensure trouble-free performance, follow this preventative maintenance schedule.
W e e K L y
Cassette
• Wash the interior of the cassette with dishwashing soap or a
mild detergent that does not contain chlorine.
• Scrub the inside with a cleaning pad designed for use with
Teflon
®
• After removing all traces of the detergent, treat interior sur-
faces of the cassette with the STAT-DRI
enhance drying process. Additional STAT-DRI
ordered by requesting 2OZPLUS, 8OZPLUST, or 32OZPL US.
09-110755 Rev1: Artwork, Dri-Tec-C
Designed: March 11, 2008
09-110757 Rev1: Artwork, Dri-Tec-R
Designed: March 11, 2008
Water Reservoir
• Check the water reservoir filter every week and clean
Filter if necessary. Replace only if necessary.
and Dri-Tec are trademarks of SciCan Ltd. Teflon is a registered trademark of E.I. Du Pont de Nemours and Company Corporation.
R C
BLACK
PANTONE 363 C
PANTONE 280 C
TEXT FONTS:
20% Black Dri-Tec: Frutiger Bold
Outline around Dri-Tec
STEAM HEAT DRYING: Copperplate Bold 20% Black
Outline around Dri-Tec
3
3
inserting Cassette
5000 model
Hold the cassette handle in one
hand and the carry handle in the
other. Place the end of the cassette
into the unit and drop the carry
handle into its closed position.
2000 and 5000 models
Gently push cassette inward until
you hear a click. Never force the
cassette into the STATim.
3
3
Coat Cassette
After cleaning and drying the
cassette, treat the interior
surfaces with STAT-DRI
™
-coated surfaces.
Plus drying agent to
™
Plus can be
™
BLACK
TEXT FONTS:
Dri-Tec: Frutiger Bold
STEAM HEAT DRYING: Copperplate Bold
4
4
Cycle Starting guide
Unwrapped Cycle
Sterilize light loads of solid metal instruments
such as hand instruments, speculums and
forceps.
Wrapped Cycle
Sterilize solid or hollow metal instruments which
have been sealed in autoclave bags.
rubber and Plastics Cycle
Sterilize solid or hollow unwrapped instruments.
air Dry only Cycle (2000 g4)
heavy Duty Unwrapped Cycle (5000 g4)
2000 G4: This is NOT a sterilization cycle. Refer to
Operator's Manual.
5000 G4: Sterilize larger loads of unwrapped metal
instruments.
USer/teChniCian
menU anD navigation
Toggle UP/DoWn to
view menu options.
enter
Push button to view/select
menu options.
BaCK
Push button to return
to previous menu.
4
4
Use Drying Plate rack
(5000 only)
For optimal drying performance of wrapped
instruments, use the drying plate rack
supplied and insert one bag per plate
with window side up.
Plate positions
for full load
(10 bags).
Plus.
e ver y 6 mo nthS
Biological Filter
• Replace every 500 cycles or
six months (whichever is first).
Call for service if wet.
Air Filter
• Replace every 500 cycles or
six months (whichever is first).
Cassette Seal
• Replace every 500 cycles or
six months (whichever is first),
or whenever necessary.
www.scican.com
