INSTRUCTION MANUAL

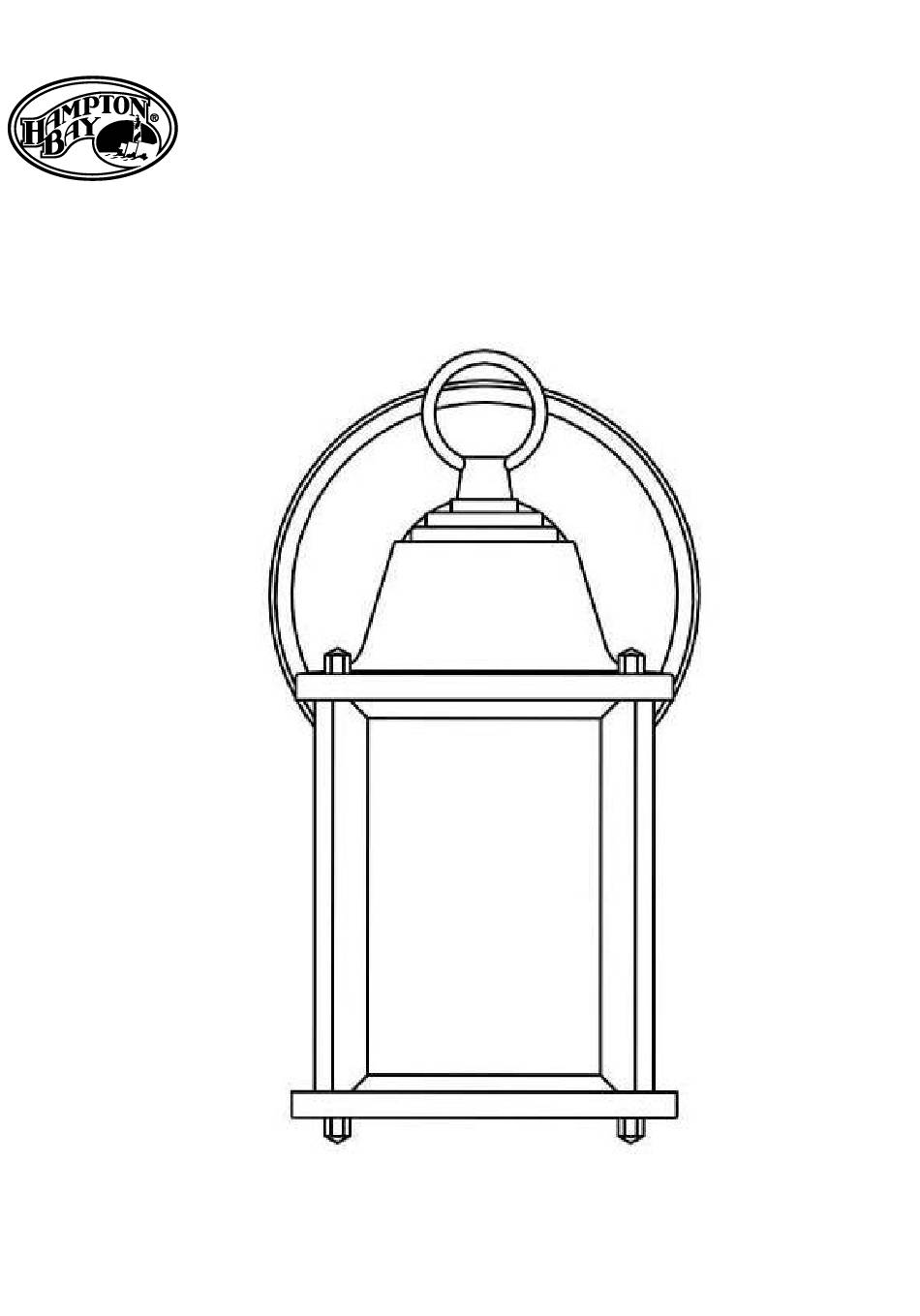

1LT Exterior Wall Lantern
The Home Depot SKU 245-746 (UPC 725916814229) (black)
The Home Depot SKU 250-399 (UPC 725916814250) (white)
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 245-746 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY 245-746

  • Page 1 INSTRUCTION MANUAL 1LT Exterior Wall Lantern The Home Depot SKU 245-746 (UPC 725916814229) (black) The Home Depot SKU 250-399 (UPC 725916814250) (white) Page 1...
  • Page 2 The finish of this lantern is weather resistant but over time will naturally weather and fade. FEATURES: 1. One-light exterior wall lantern in black finish (SKU 245-746) or white finish (SKU 250-399) with beveled glass. 2. This fixture has been engineered to safely use a 60 watt medium base incandescent light bulb (do not exceed 60 watts) (not included).
  • Page 3 Customer Service Team 1-855-HD-HAMPTON visit www.hamptonbay.com. Please reference your SKU (245-746 black fixture, 250-399 white fixture) or UPC (725916814229 black fixture, 725916814250 white fixture). 2. Keep your receipt and these Instructions for Proof of Purchase. TOOLS REQUIRED FOR ASSEMBLY &...
  • Page 4 ASSEMBLY INSTRUCTIONS: 1. Carefully unpack the fixture. Lay out all parts on a clean surface. Install a 60 watt medium base incandescent light Bulb (#4) (not included) or an equivalent standard base compact fluorescent light bulb (not included) in the Socket (#3) in the fixture Page 4...
  • Page 5 ASSEMBLY: Page 5...
  • Page 6: Installation Instructions

    PARTS INCLUDED FOR INSTALLATION (parts are not to scale): 2ea Lock Nuts (#2) 3ea Wire Connectors (#6) 1ea Cross Bar (#7) 1ea Ground Screw (#8) 2ea Outlet Box Screws (#9) 2ea Mounting Screws (#10) INSTALLATION INSTRUCTIONS: 1. Screw the two Mounting Screws (#10) into the Cross Bar (#7). Mount the Cross Bar (#7) to the Outlet Box (#5) using the two Outlet Box Screws (#9).
  • Page 7: Installation

    INSTALLATION: Page 7...
  • Page 8: Troubleshooting

    TROUBLESHOOTING: Problem Possible Cause Corrective Action Light bulb will not 1. Light bulb is burned out. 1. Replace light bulb. illuminate. 2. Power is off. 2. Make sure power supply is on. 3. Faulty wire connection. 3. Check wiring. 4. Faulty switch. 4.
  • Page 9 MANUAL DE INSTRUCCIONES Farola de Pared para Exteriores de 1 Luz The Home Depot SKU 245-746 (UPC 725916814229) (negra) The Home Depot SKU 250-399 (UPC 725916814250) (blanco) Page 9...
  • Page 10 CARACTERÍSTICAS: 1. Farola de pared para exteriores de una luz en acabado en negro (SKU 245-746) o en acabado en blanco (SKU 250-399) con cristal biselado. 2. Esta instalación ha sido diseñada para usar con seguridad una bombilla de luz incandescente de base medio de hasta de 60 vatios (no exceder de 60 vatios) (no incluido) .
  • Page 11 Equipo de Atención al Cliente en el 1-855-HD- HAMPTON o visite www.hamptonbay.com. Por favor haga referencia de su SKU (245-746 instalación negra, 250-399 instalación blanco) or UPC (725916814229 instalación negra, 725916814250 instalación blanco). 4. Guarde su recibo y estas Instrucciones como Prueba de Adquisición.
  • Page 12 INSTRUCCIÓN DE ASAMBLEA: 1. Desempaquetar cuidadosamente la instalación, disponer todas las piezas sobre una superficie límpia. 2. Instalar una Bombilla de luz incandescente de base medio de 60 vatios (#4) (no incluido) o una bombilla de luz fluorescente compacta de base estándar (no incluido) en el Portalámpara (#3) en la instalación .
  • Page 13 ASAMBLEA: Page 13...
  • Page 14 PARTES INCLUIDAS PARA EL INSTALACIÓN (las partes no están en proporción de escala): 2ea Tuercas de Cierre (#2) 3ea Conectores de Cables (#6) 1ea Barra Cruzada (#7) 1ea Tornillo de Toma de Tierra (#8) 2ea Tornillos de la Caja de Salida (#9) 2ea Tornillos de Montaje (#10) INSTRUCCIONES PARA LA INSTALACIÓN: 1.
  • Page 15: Instalación

    INSTALACIÓN: Page 15...
  • Page 16: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS: Problema Causa posible Acción Correctiva 1. Bombilla de Luz está 1. Reemplace la bombilla. quemada. 2. Compruebe si hay 2. No hay alimentación. Bombilla de Luz no se suministro de electricidad. 3. La conexión de los cables 3. Inspeccione el cableado. enciende.
  • Page 17: Manuel D'instructions

    MANUEL D'INSTRUCTIONS Lanterne Murale d'Extérieur 1LP The Home Depot UGS 245-746 (UPC 725916814229) (noir) The Home Depot UGS 250-399 (UPC 725916814250) (blanc) Page 17...
  • Page 18 CARACTERISTIQUES: 1. Lanterne murale d’extérieur à une lumière au fini noir (UGS 245-746) ou blanc (UGS 250-399) avec un verre biseauté. 2. Ce luminaire a été conçu pour l'utilisation sure d'une ampoule incandescente à...
  • Page 19 Service à la Clientèle au 1-855-HD- HAMPTON ou visiter www.hamptonbay.com. Veuillez indiquer votre UGS (245-746 luminaire noir, 250-399 luminaire blanc) ou UPC (725916814229 luminaire noir, 725916814250 luminaire blanc). 4. Conserver votre reçu et ces Instructions comme Preuve d'Achat.
  • Page 20: Instructions D'assemblage

    INSTRUCTIONS D'ASSEMBLAGE: 1. Déballer soigneusement le luminaire. Placer toutes les pièces sur une surface propre. 2. Installer une Ampoule incandescente de 60 watts à culot moyen (non incluses) (#4) ou une ampoule fluorescente compacte de base standard équivalente (non incluses) dans la Douille (#3) du luminaire. Page 20...
  • Page 21 ASSEMBLAGE: Page 21...
  • Page 22: Instructions D'installation

    PIECES INCLUSES POUR L'INSTALLATION (les pièces ne sont pas à l'échelle): 2x Écrous de Verrouillage (#2) 3x Serre-Fils (#6) 1x Entretoise (#7) 1x Vis Terre (#8) 2x Vis Boîte de Sortie (#9) 2x Vis de Montage (#10) INSTRUCTIONS D'INSTALLATION: 1. Visser les deux Vis de Montage (#10) sur la Entretoise (#7). Fixer la Entretoise (#7) sur la Boîte de Sortie (#5) grâce aux deux Vis de Boîte de Sortie (#9).
  • Page 23 INSTALLATION: Page 23...
  • Page 24: Entretien Du Produit

    SOLUTIONS DE DEPANNAGE: Problème Cause Possible Mesure Corrective L'ampoule ne s'allume 1. L'ampoule est grillée. 1. Remplacez l'ampoule. pas. 2. Le courant est coupé. 2. Vérifiez si le courant est sous tension. 3. Mauvaise connexion de 3. Vérifiez le câblage. fil.
