TMC Epic 810-ECA Quick Steps

Step 4: Set Right DIP Switches to Proper Positions

Set Switches 1-4
The setting of these four DIP switches
determines what station number your
External Cordless Adapter will be set
as.
You may choose any station number
from 12 to 26. Note that you may not
set your External Cordless Adapter as
station #11.
Also please note that you must not
assign your External Cordless
Adapter the same station number as
any your phones or other feature
modules. IT MUST BE ASSIGNED
ITS OWN UNIQUE STATION NUM-
BER.

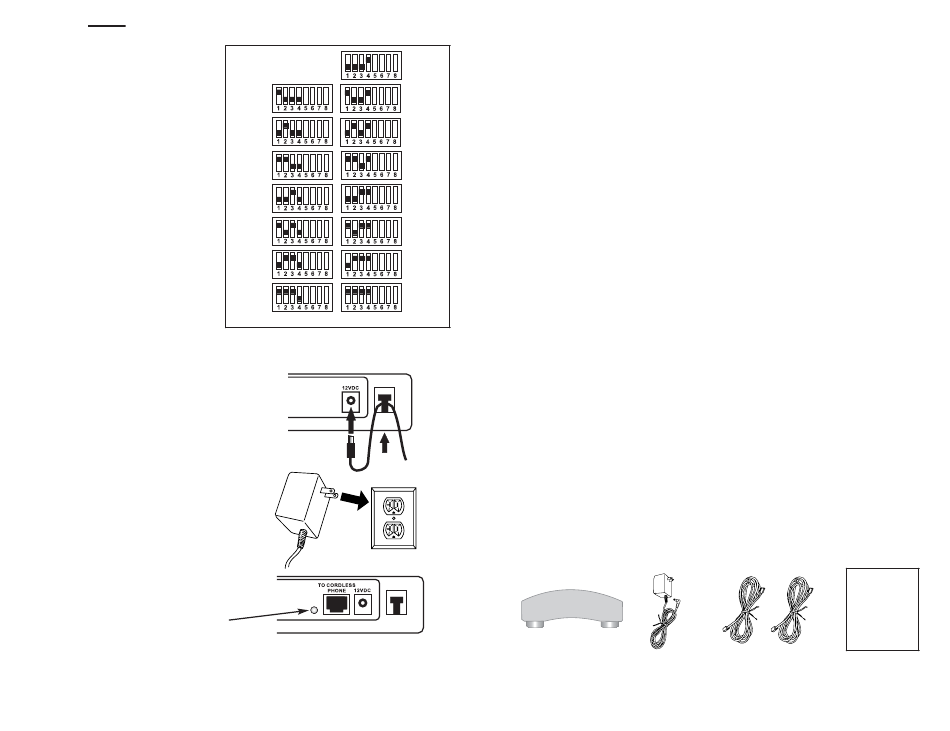

Refer to the drawing at right to deter-
mine how to set the DIP switches for
the station number you choose.

Step 5: Connect Power Cord

1 Connect Power Cord to Module
Plug the AC power cord into the adapter
jack at the rear of the Feature Module.
Thread the power cord around the strain
relief tab.
2 Connect Power Cord to Wall Outlet
Plug the AC adapter into an electrical outlet
not controlled by a wall switch.
3 Make Sure that Status Indicator
Lamp is Blinking
This indicates that the feature module is
properly connected to electrical power.
Please reference the "USER'S GUIDE"
pages 7 thru 15 for further instructions on
"USING YOUR CORDLESS ADAPTER".
