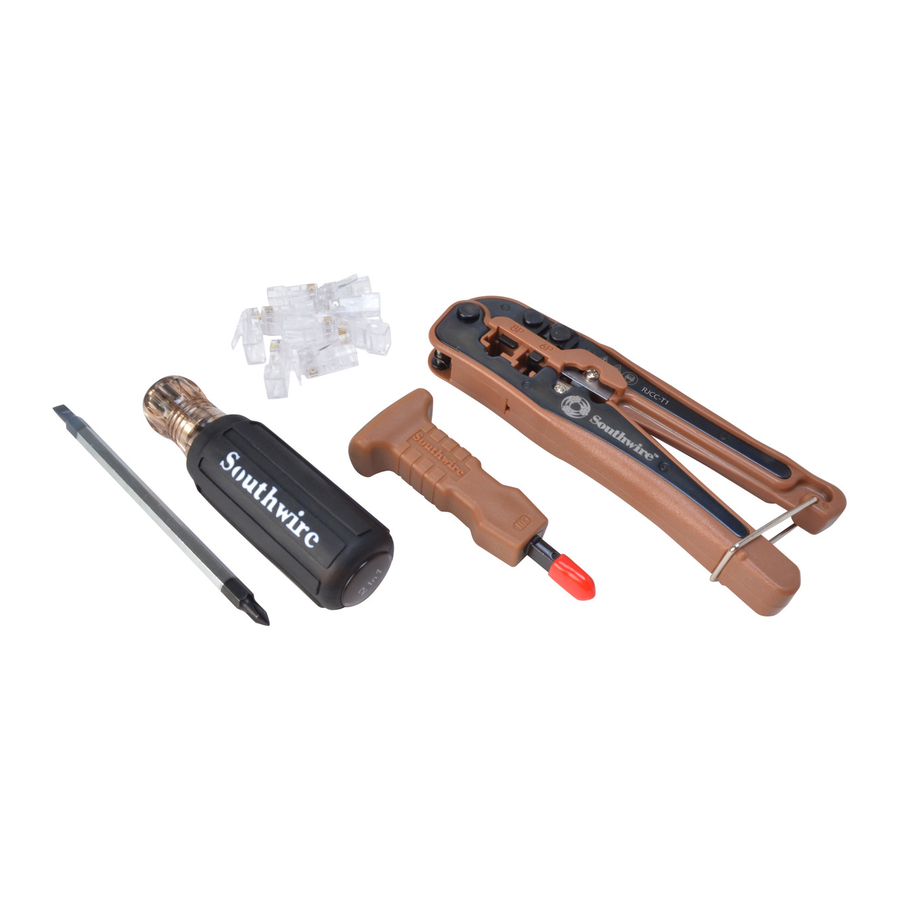

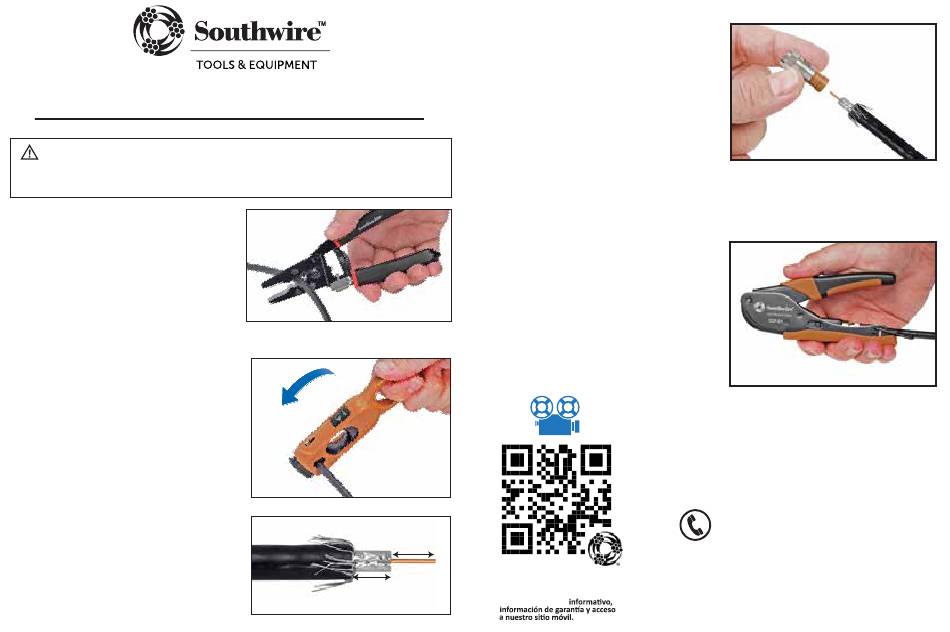

Southwire KIT-C1 Installation Manual

CABLE TV TOOL KIT Installation Guide
WARNING:
Tools are not insulated. Never use tools on live circuits.
Wear eye protection when using tools. Tools have moving parts that can pinch/cut.
Keep fingers clear of tools.

Cut

1. Cut cable to length.
Hold the cable perpendicular
to the tool for a clean cut.

Strip

1. Pull down on trigger to open the
stripping hole.
2. Insert cable through opening in the
direction shown by the arrow on the
side of the tool. The end of the cable
should be flush with the opening on
the other side of the tool.
3. Release tension on trigger, rotate tool
around cable 3 times.
4. Remove tool from cable and remove
strippings from cable end by hand.
Using the tool to remove the strippings
will shorten blade life.
5. A properly stripped cable will reveal
¼" (6.4mm) of the center conductor
and ¼" (6.4mm) of shielded.

Install the Connector

1. Fold the exposed braiding back over
the outer jacket.
2. Insert cable into the F connector
making sure the cable is fully seated.
When looking down into the connector,
the white dielectric should be flush with
the bottom of the "cup" made by the
hex nut on the connector.
NOTE: The connectors included in this kit are intended for RG6 Dual Shield
coaxial cable. For best results on RG6 Quad Shield, Southwire recommends
connectors specifically made for quad shield cable.

Crimp

1. Open up the crimp tool.
2. Place the connector assembly into
the crimping chamber.
3. Squeeze the handles until the
connector is fully crimped.
NOTE: Tool accepts 20.3mm
compression F connectors - this is the
standard size commonly available.
¼" (6.4 mm)
Scan for a how-to video,
warranty information and
to access our mobile site.
¼" (6.4 mm)
Escanea para video
southwiretools.com
1-855-SW-T00LS
Toll Free Technical Help
Línea de Ayuda Técnica Gratuita
Contents Made in China
Product distributed by Southwire Company, LLC
One Southwire Drive, Carrollton, GA 30119
©2014 Southwire Company, LLC. All rights reserved.
KIT-C1 Manual 04/14 Rev. 0
