INSTRUCTION
SHEET
Description:
Base Pan Kit
Contents: 1 – 59004037 Base Pan
1 – 16200051 Instruction Sheet
1 – 21011402 Hinge Bracket

Procedure:

1. Remove left, right, and back panels along with air filters.

2. Door Removal

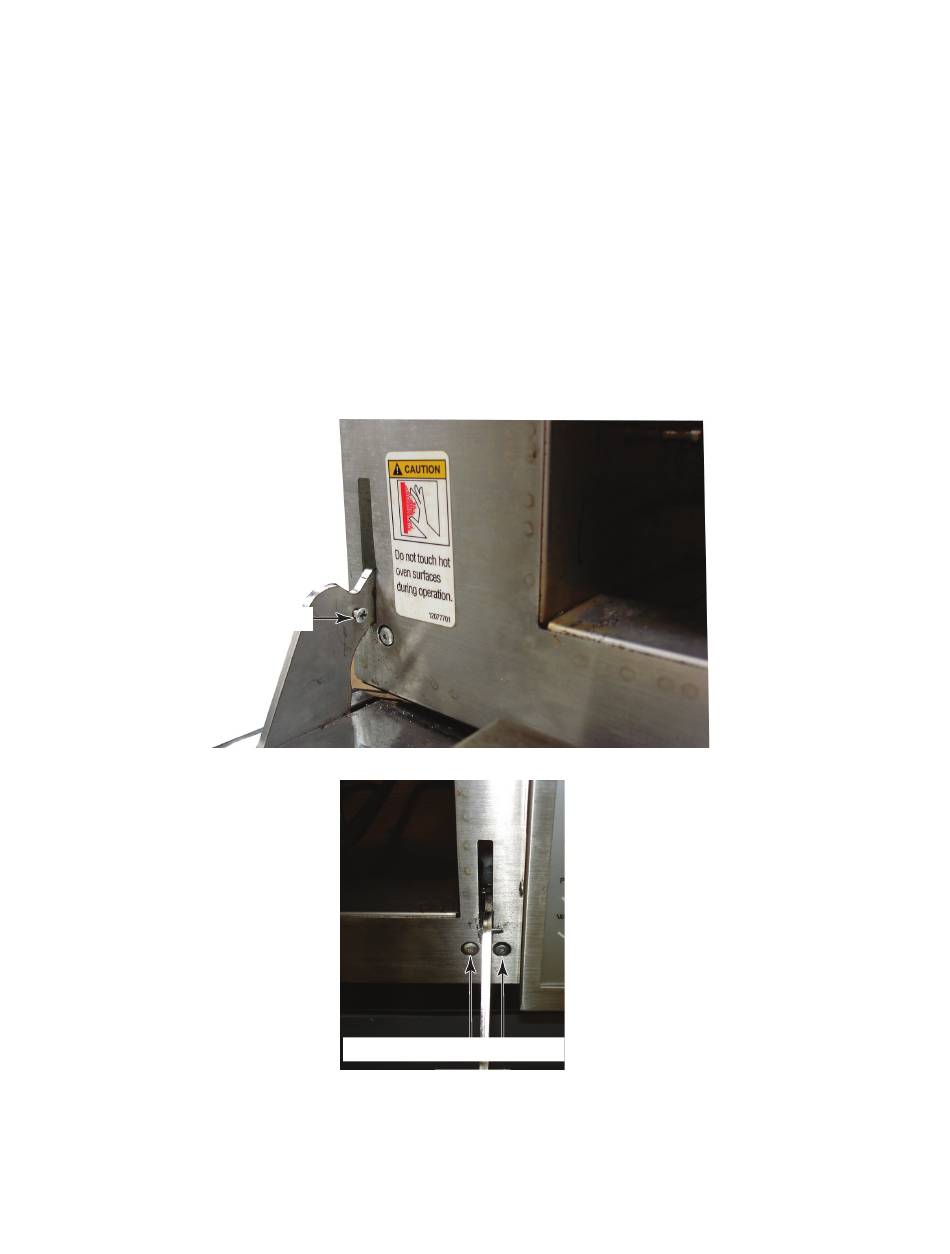

a) Open door and install a screw into hinge opening as shown in figure 1 to lock hinge open.
b) Remove 6 black caps and mounting screws from sides of door.
Hinge Locking Pin
c)
Remove door from oven.
d) Remove front 2 hinge mounting screws from each hinge.
ACP, Inc.
225 – 49TH Avenue Drive SW
Cedar Rapids, IA 52404
Figure 1
Hinge Mounting Screws
Figure 2
16200051
1 – 21014403 Switch Mtg Brkt
2 – 21011302 Support, Rear Cav.
4 – 12991605 Screw, Hex
REV. 1
DATE: 9-6-12
PART #: 16200051
Page 1 OF 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXP20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ACP AXP20

  • Page 1 2. Door Removal a) Open door and install a screw into hinge opening as shown in figure 1 to lock hinge open. b) Remove 6 black caps and mounting screws from sides of door. Hinge Locking Pin Figure 1 Hinge Mounting Screws Figure 2 Remove door from oven. d) Remove front 2 hinge mounting screws from each hinge. ACP, Inc. REV. 1 225 – 49TH Avenue Drive SW DATE: 9-6-12 Cedar Rapids, IA 52404 PART #: 16200051 Page 1 OF 6...
  • Page 2 Right Side of Oven a) Remove 5 screws from component panel on RH side of oven - see figure 3 and remove component panel. b) Remove screw from RH hinge - see figure 4. Component Panel Screws Component Panel Screws Figure 3 Hinge Screw Figure 4 ACP, Inc. REV. 1 225 – 49TH Avenue Drive SW DATE: 9-6-12 Cedar Rapids, IA 52404 PART #: 16200051 Page 2 OF 6...
  • Page 3 Remove screws from panels on back of oven - see figure 5. b) Remove cooling fans mounting screws (2 per fan). Panel Screw Panel Screw Cooling Fan Cooling Fan Screws Screws Figure 5 c) Remove recirculation barriers from the rear of the oven - see figure 6. Recirculation Barrier Recirculation Barrier Figure 6 ACP, Inc. REV. 1 225 – 49TH Avenue Drive SW DATE: 9-6-12 Cedar Rapids, IA 52404 PART #: 16200051 Page 3 OF 6...
  • Page 4 Remove secondary interlock switch mounting bracket cover by removing two cover screws and lifting cover off of secondary - see figure 8. Important: Note the position of the alignment tab before removing cover bracket. Cover Screws Alignment Tab Figure 8 ACP, Inc. REV. 1 225 – 49TH Avenue Drive SW DATE: 9-6-12 Cedar Rapids, IA 52404 PART #: 16200051 Page 4 OF 6...
  • Page 5 Rotate oven on its switch side being careful not to damage any loose components. Rotate oven again so the oven base is on the top. 7. Base Removal a) Remove 4 screws from front of the base - see figure 14. b) Remove 4 frame mounting screws from rear of oven. c) Slide hinges away from base and lift base from oven. ACP, Inc. REV. 1 225 – 49TH Avenue Drive SW DATE: 9-6-12 Cedar Rapids, IA 52404 PART #: 16200051...
  • Page 6 9. Oven Test Place oven into service test. b) Confirm proper operation, reinstall back and side panels. • Oven should be preheated to max temperature. • Door should open/close without binding. • If not, the door choke may need to be realigned with the cavity opening. • Test unit at max preheat to assure interlock switches are properly set. ACP, Inc. REV. 1 225 – 49TH Avenue Drive SW DATE: 9-6-12 Cedar Rapids, IA 52404 PART #: 16200051 Page 6 OF 6...
