Evo Dual Remote Control User Manual
2021.04 Version 1.0
Copyright © 2021 ePropulsion All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evo Dual and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ePropulsion Evo Dual

Summary of Contents for ePropulsion Evo Dual

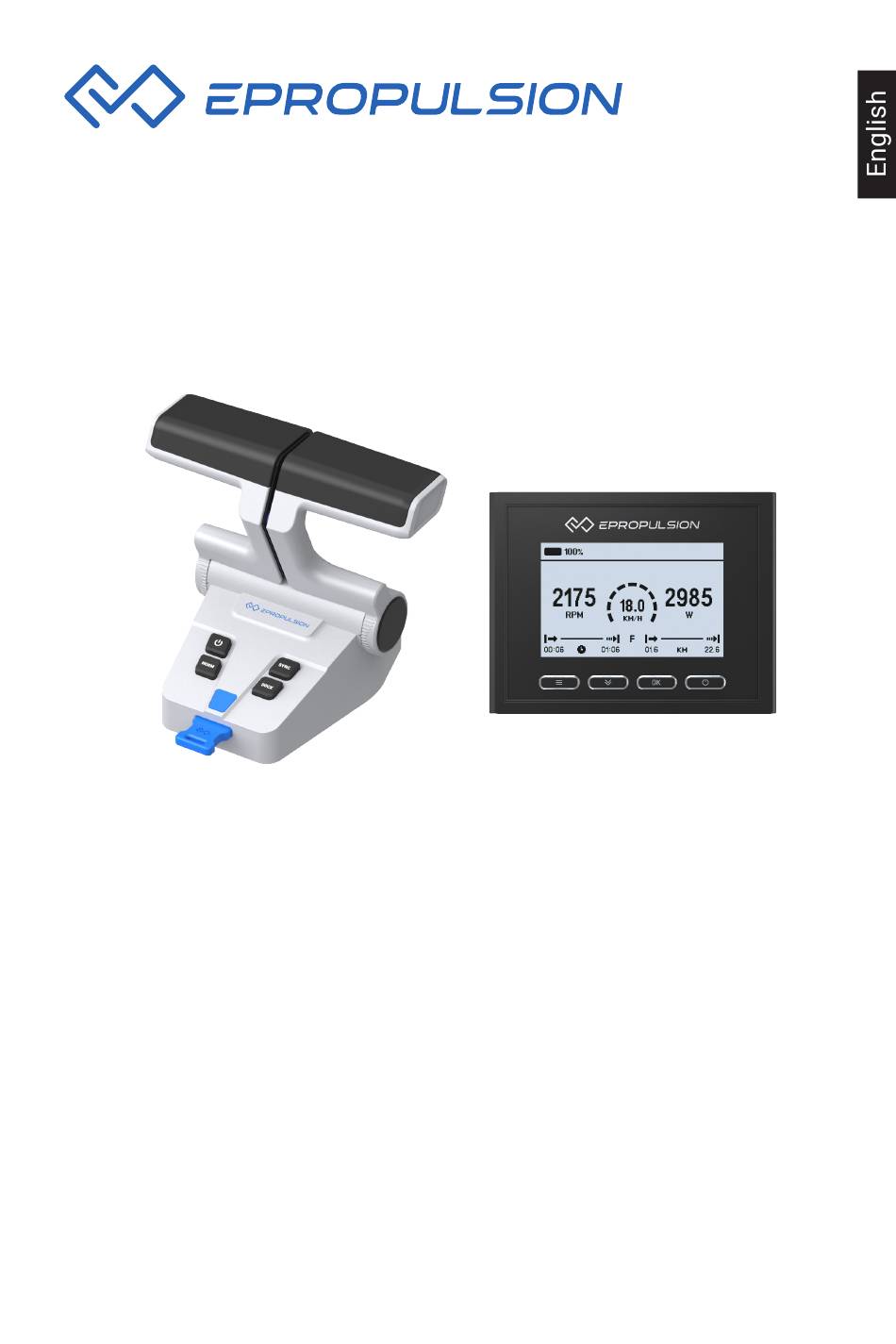

  • Page 1 Evo Dual Remote Control User Manual 2021.04 Version 1.0 Copyright © 2021 ePropulsion All Rights Reserved...

  • Page 3: Acknowledgement

    Acknowledgement Thanks for choosing ePropulsion products, your trust and support in our company are sincerely appreciated. We are dedicated to providing high-performance products and accessories. Welcome to visit www.epropulsion.com and contact us if you have any concerns. Using This Manual Before use of the product, please read this user manual thoroughly to understand the correct and safe operations.

  • Page 4: Product Identification

    Product Identification Below picture indicates the serial numbers of Evo Dual Remote Control. Please note the position of the serial numbers and record them for access to warranty service and other after-sale services. STBD PORT DISPLAY Model: Dual Remote Control Serial No.: DDRC1K90001...

  • Page 5: Table Of Contents

    Table of content Acknowledgement ..................1 Using This Manual ..................1 Symbols ....................1 Product Identification ................2 1 Product Overview ................... 4 1.1 In the Package ..................4 1.2 Specification .................... 5 1.3 Important Notes ..................5 1.4 Declaration ....................6 2 Mounting ....................

  • Page 6: Product Overview

    Remote Control, it requires an additional steering wheel to help steer. 1.1 In the Package When you receive a set of Evo Dual Remote Control, unpack its package and check if all the items below are included in the package. If there is any loss or transport damage, please contact your dealer immediately.

  • Page 7: Specification

    Dimensions 138.5 x 106.9 x 42.5 mm (Display) 1.3 Important Notes 1. Check the status of the Evo Dual Remote Control and battery level before each trip. 2. Only adults who have fully read and understood this manual are allowed to operate this product.

  • Page 8: Declaration

    1.4 Declaration Object of the declaration: Product Description: Evo Dual Remote Control Model: Evo Dual Remote Control Company Name: Guangdong ePropulsion Technology Limited Company Address: Room 201, Bldg.17A, 4th XinZhu Road, SongShan Lake District, Dongguan City, Guangdong Province, China The object of the declaration is in conformity with the following directives:...

  • Page 9: Mounting

    2 Mounting 2.1 Mounting the Throttle Follow the fixing guide to fix the throttle of the Evo Dual Remote Control to the boat. Figure 2-1 2.2 Connecting the Throttle Please refer the label on the bottom of the Evo Dual Remote Control to connect with the machine and the Evo Display Panel.

  • Page 10: Button Description

    Dual Remote Control Display Panel Remote Switch Communication Terminator CAN-IN MOTOR CAN-OUT CAN-IN MOTOR CAN-OUT Figure 2-3 2.3 Button Description Button Function 1.After connecting the dual remote control properly, power on the outboard. Long press the power button, beep means the dual remote control is turned on successfully.

  • Page 11: Calibration

    Button Function 1.When it is turned on, press SYNC button, beep once means it is switched to synchronization mode and the SYNC button light is on. 2.When it is in the synchronization mode, long press SYNC but- ton, beep once and the DOCK button light blinks three times. It SYNC means that it is switched to the mode that two machines are Synchronization...
  • Page 12 Calibration process Figure Step 3: Pull backward the throttle handle to the maximum position as shown in Pull backward to the end figure 2-4 and press the "NORM" button then press NORM to confirm. Step 4: Calibration complete. Successful Calibration Figure 2-2 Figure 2-3 Figure 2-4...

  • Page 13: Display Panel

    3 Display Panel 3.1 Mounting the Display Panel Follow the instructions below to fix the display panel of the Evo Dual Remote Control to the boat. 1. Drill holes on the hull through the fixing guide referring to the figure 3-1.

  • Page 14: Display Panel

    3.2 Display Panel Buttons Functions 1. When the display panel is turned off, press and hold the power button to power on the display panel. 2. When the display panel is turned on, press and Power button hold the power button to power off the display panel.
  • Page 15 Icons Functions Battery level Indicating battery level. indicator 48.0V Battery voltage / 48.0V : indicates current battery voltage. 100% level 100% : indicates current battery level. The machine can turn on or off the hydro generati- on function on the preference page if it supported this function.
  • Page 16 Set units (KM/H, MPH or KNOTS) in preference Current speed setting page. KM/H If it is connected with SPIRIT outboards or pod drive 1.0, it will display the ePropulsion logo. 6000 Rotational speed Displaying real time motor rotational speed. : forward gear Throttle gear...

  • Page 17: Dock Power Limited Setting

    3.3 Dock Power Limited Setting Dock Power Limited Setting Process LCD Displaying Step1: In power-on state, long press the Menu button to enter the Port or Star- board Side Setting page, and press Select Port Side button the select Port or Starboard Side. Starboard Side Then press Confirm button to enter the Setting page.
  • Page 18 Dock Power Limited Setting Process LCD Displaying Step 5: After setting all the values of the forward power limit, press the Menu Port Side button to return, and press the select but- ton to select the backward power limit Dock Power Limit option.

  • Page 19: Preference Settings

    3.4 Preference Settings It is recommended to refer the steps below to set the displaying preference before operating the dual remote control Preference Settings Process LCD Displaying Step1: In power-on state, long press the Menu button to enter the Port or Star- board Side Setting page, and press Select Port Side button the select Port or Starboard Side.
  • Page 20 Preference Settings Process LCD Displaying Port Side Step4: Press the Menu button to return to Dock Power Limit Unit Setting preference setting page. Battery Setting...

  • Page 21: Battery Configuration

    When not using ePropulsion Batteries, users should manually configure the batteries via Evo Dual Remote Control at the first time use, so the battery level will display more accurate.
  • Page 22 Battery Setting Process LCD Displaying Step3: When the arrow points to "Type", then press the Confirm button, and choose the battery type according to the battery you use. Press the Select Port Side button to switch the battery type op- tions between Li-ion, LiFePO4 and Lead Type: Li-ion...
  • Page 23 Battery Setting Process LCD Displaying Port Side Step6: Press the Menu button to return Type: Li-ion LiFePO4 Lead-acid to previous setting page, and press the Capacity： 0010 Ah Select button to switch to «Voltage Voltage Rating： 30.0 V rating». Hydrogeneration: Undervolt Value: 30.0 V Step 7: Press the Confirm button to...
  • Page 24 Battery Setting Process LCD Displaying Step 9: Press the Confirm button to set the hydro generation function, Press the selection button to switch between "ON, OFF", "ON" to turn on the Port Side hydro generation function, models that support the hydro generation function Type: Li-ion LiFePO4...
  • Page 25 Battery Setting Process LCD Displaying Port Side Step12: After battery setting is comple- Dock Power Limit ted, press the Menu button to return to Unit Setting the preference setting page. Battery Setting Update the battery configuration is necessary if a different type of battery has been applied.

  • Page 26: Use Of Kill Switch

    4 Use of Kill Switch Locate the kill switch to the right place on the Evo Dual Remote Control and tie its lanyard to your wrist or life jacket. Stop the outboard in emergency by detaching the kill switch. Figure 4-1 Please remove the kill switch after the machine is turned off.

  • Page 27: Warranty

    5 Warranty The ePropulsion limited warranty is provided for the first end purchaser of an ePropulsion product. Consumers are entitled to a free repair or replacement of defective parts or parts which do not conform with the sales contract. This warranty operates in addition to your statutory rights under your local consumer law.

  • Page 28: Out Of Warranty

    Free warranty is not transferable and will not be reissued. Within the limits of the applicable laws, the warranty policies of ePropulsion may update without prior notice. The latest version is available at our website www. epropulsion.com. 5.2 Out of Warranty Make sure the product is properly packed during delivery, the original ePropulsion package is recommended.
  • Page 29 4. In case your warranty claim is rejected, an estimated repair charge with round trip delivery cost will be sent for confirmation. ePropulsion authorized service point will conduct maintenance accordingly only after your confirmation. If warranty expires, you can still enjoy maintenance services from authorized...
  • Page 32 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you. Guangdong ePropulsion Technology Limited Website: www.epropulsion.com Email: service@epropulsion.com...
