SMOkE & CO
COMbO ALARM
P H O T O E L E C T R I C
SC7010bV
CAT.
VOICE WARNING
WITH LOCATION
Exclusive! A voice will tell you the
programmed location of the unit
and danger detected.
SPREAD SPECTRUM
HORN TONE
Easier for elderly with normal age
related hearing loss to
hear horn.
TWO LATCHING
FEATURES
Alarm Latch and Low Battery Latch

TWO SILENCE FEATURES

Silence low battery chirp for
up to eight hours or silence
nuisance alarm.
OPTIPATH 360
TECHNOLOGY
Patented technology provides 360º
of direct access to smoke sensor.
120V AC/DC, 60Hz
Wire-in with 3V (two 1.5V AA) Battery Backup
Description:
The BRK Cat. No. SC7010BV is a wire-in, 120V AC 60Hz single and/or multiple station
combination smoke and carbon monoxide alarm specifically designed for residential
and institutional applications including sleeping rooms of hospitals, hotels, motels,
dormitories and other multi-family dwellings as defined in standard NFPA 101. Model
SC7010BV complies with UL217 and UL2034, CSFM, NFPA 72 and NFPA 720, HUD,
FHA and other agencies that model their codes after the above agencies. It meets
building codes where AC/DC photoelectric smoke and carbon monoxide alarms with
and without voice are required.

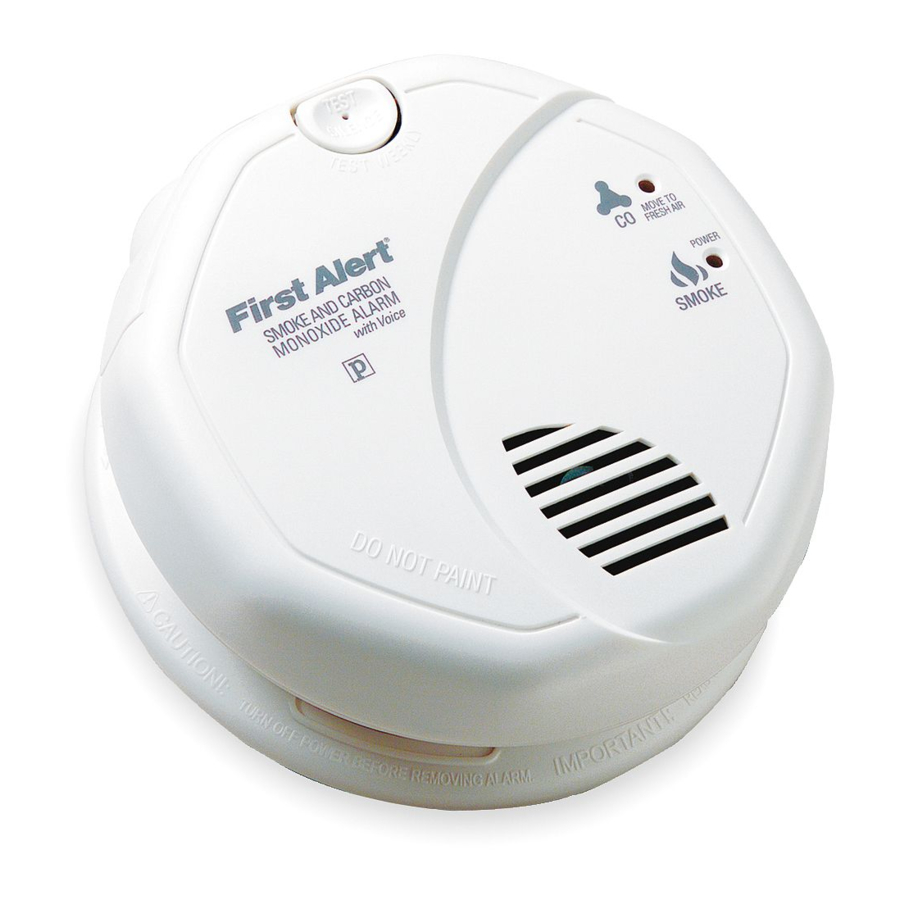

The BRK SC7010BV is a state-of-the-art hardwired with battery backup smoke/CO
combo alarm that features a photoelectric smoke sensing chamber, an electrochemical CO
sensor and voice warning with location. This exclusive feature incorporates a voice
that will speak one of 11 pre-programmed locations and the danger detected. When
the alarm sounds (if programmed for "basement", for example) it will speak "Warning,
evacuate, smoke in basement". All other interconnected SC7010BV's will announce warning
without location ("Warning, evacuate, Smoke"). All other interconnected hardwired
alarms will sound their normal smoke and/or CO horn pattern. The Spread Spectrum
Horn Tone has a lower and varying frequency that makes it easier for the elderly with
normal age related hearing loss to hear the horn. This alarm features two latching features
and two silence features. Alarm Latch: Easily identifies initiating alarm even after alarm
condition has subsided. Low Battery Latch: Identifies which unit is in low battery condition by
blinking the green power light. Low Battery Silence: Temporarily silence the low battery
chirp for up to eight hours. Alarm Silence: Silence alarm for several minutes. Other features
include an 85dB horn, single button test/silence, an easy access battery drawer. OptiPath 360
Technology: Exclusive patented technology provides 360˚ of direct access to the smoke
sensor. The alarm is interconnectable with up to 18 devices, of which 12 can be smoke
alarms. The unit mounts to any standard electrical box up to 4" size. Keyhole slots in the
mounting bracket eliminate the need to remove the electrical
box screws for installation. Includes Perfect Mount, a
mounting bracket that keeps the alarm secure
over a wide rotation range to allow for perfect
alignment. Dust cover is included to keep
the alarm clean during construction.
Battery installation and removal can
occur while the unit is mounted to
the ceiling or wall via the side
battery compartment. Two locking
features are provided to prevent
battery theft and/or theft of the
unit. Connection to AC power is
made with a "Quick-Connect"
wiring harness. Installation is
quick, easy and cost effective.
