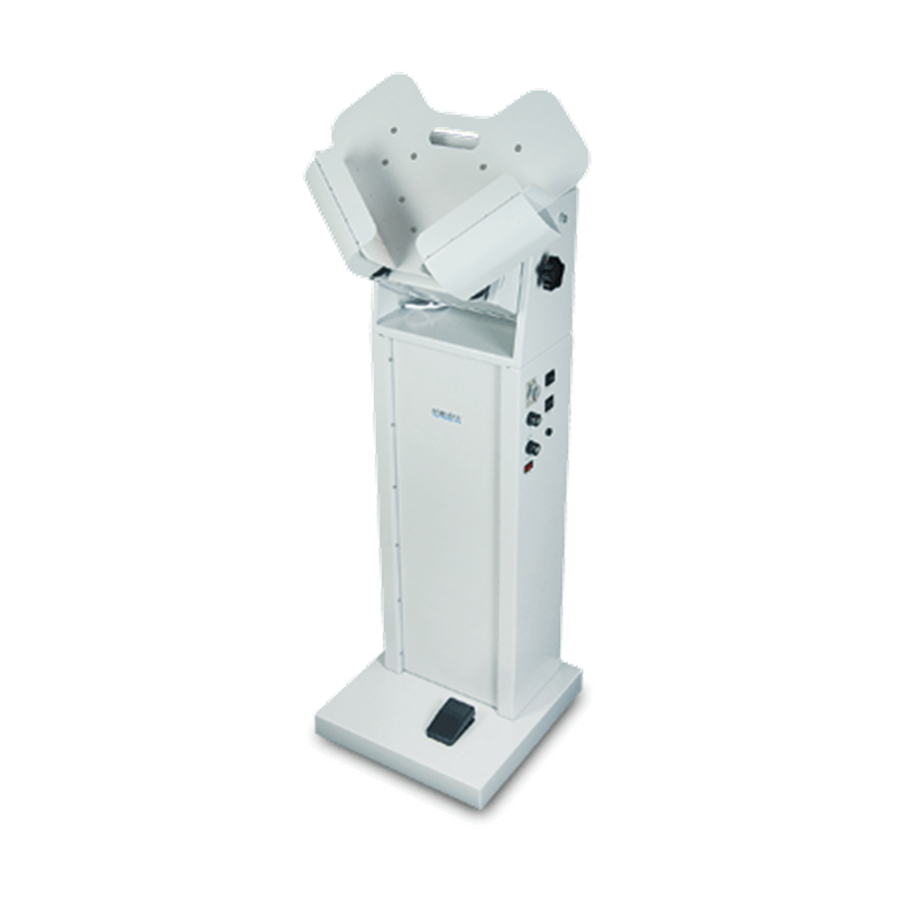

High-capacity air jogger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FD 404A1
High-Capacity Air Jogger
7/2013
OPERATOR / PARTS MANUAL
FIRST EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD 404A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Formax FD 404A1

Summary of Contents for Formax FD 404A1

  • Page 1 FD 404A1 High-Capacity Air Jogger OPERATOR / PARTS MANUAL FIRST EDITION 7/2013...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SUBJECT PAGE DESCRIPTION SPECIFICATIONS UNPACKING SAFETY FEATURES & CONTROL PANEL OPERATION BASIC JOGGING PAPER TRAY TILT ADJUSTMENT USING THE TIMER TROUBLESHOOTING DAILY MAINTENANCE PARTS LIST...

  • Page 5: Description

    DESCRIPTION FUNCTION The FD 404A1 High-Capacity Air Jogger aligns and dries printed sheets in a single process while reducing static electricity. Variable vibration speed and air pressure controls combine to reduce jogging time, allowing press sheets and digital printouts to be air-dried immediately.

  • Page 6: Features & Control Panel

    FEATURES & CONTROL PANEL Control Panel NAME FUNCTION Paper Tray Holds paper for jogging Tray Tilt Adjustment Knob Used to alter the tilt angle of the paper tray Control Panel Controls all functions of the jogger Main Power Switch Turns the powere on or off Foot Pedal Used for hands-free operation Timer Adjustment Knob...

  • Page 7: Operation

    OPERATION Basic Jogging When the AIR adjustment knob is turned to the right (ON), air blows through vents in the paper tray while the machine is operating. When the JOG adjustment knob is turned to the right (ON), the paper tray vibrates. For jogging regular paper, both switches should be set to ON, while the air-only option can be used to loosen paper or dry ink.

  • Page 8: Using The Timer

    Using the Timer 1. Set Timer switch to on (I). 2. Turn the Timer Adjustment Knob to the desired length of time you wish to jog. Choose from 0 to 60 seconds. 3a. Standard operation: Set the timer switch to the on position and set the three way switch to the on position, air llow and vibrations begin when the is stepped on.

  • Page 9: Parts List

    PARTS ITEM # PART # DESCRIPTION RDD-019P BOLT RDD-031P TILT ADJUSTMENT KNOB RDD-030P TILT ADJUSTMENT KNOB NUT SEE NEXT PAGE CONTROL PANEL RDD-020P BODY SIDE PANELS RDD-021P POWER SWITCH RDD-022P FOOT PEDAL RDD-023P RUBBER FEET RDD-024P BOTTOM PANEL RDD-036P FRONT PANEL...
  • Page 10 ITEM # PART # DESCRIPTION RDD-003P TIMER SWITCH RDD-004P AIR BLOW ADJUST KNOB RDD-005P JOG SPEED ADJUST KNOB RDD-006P ON / OFF / FOOT POWER SWITCH RDD-007P TIMER ON-OFF ROCKER SWITCH RDD-008P FUSE HOLDER...
  • Page 11 ITEM # PART # DESCRIPTION RDD-025P MOTOR CASING RDD-026P SCREWS RDD-027P POWER PLUG INLET RDD-028P TOP REAR PANEL RDD-029P LOWER REAR PANEL RDD-013P SOUND REDUCTION PAD RDD-014P FAN MOTOR RDD-015P RUBBER BOOT RDD-001P CONTROL BOARD A RDD-002P CONTROL BOARD B...
  • Page 12 ITEM # PART # DESCRIPTION RDD-026P SCREWS RDD-032P BACK WALL BOLT RDD-034P BACK WALL RDD-035P AIR CANISTERS RDD-009P MOTOR RDD-012P BRACKET RDD-011P BRACKET SCREW RDD-010P BLOWER BOX RDD-016P MOTOR MOUNT RDD-017P RUBBER MOUNT RDD-018P RUBBER BLOWER TUBE...
