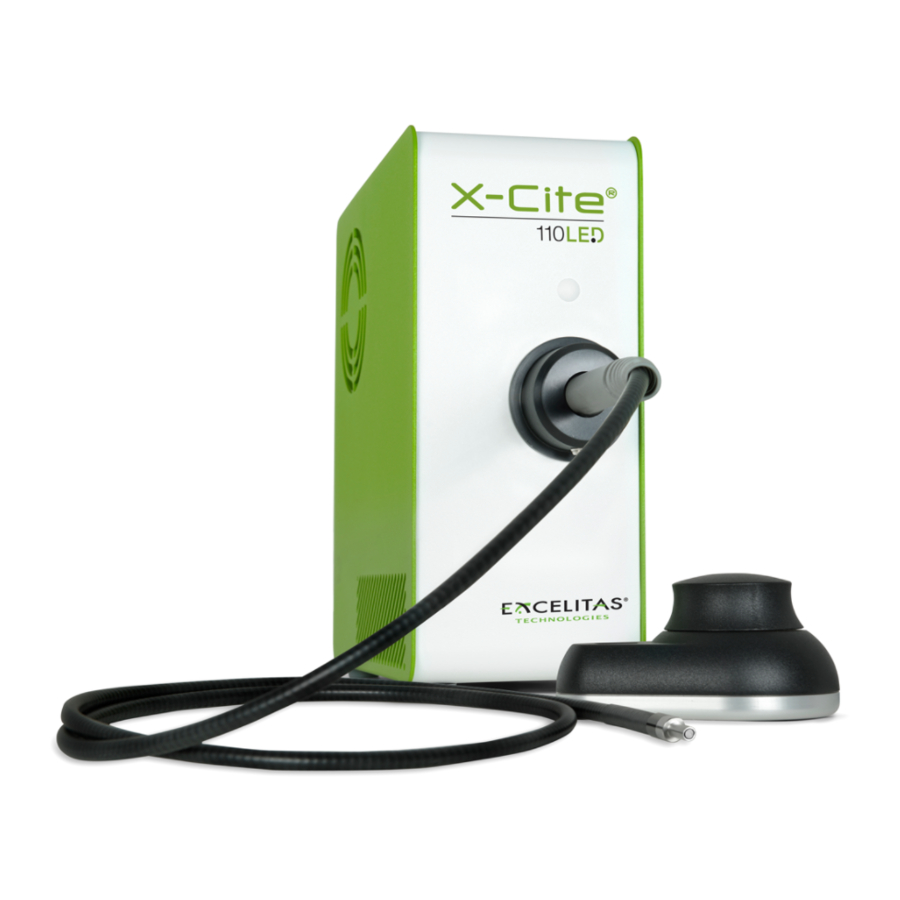

Excelitas Technologies X-Cite 110LED Quick Start Manual

SETUP
Unpack
1. Carefully unpack the unit and accessories from shipping carton.
2. When unpacking the light guide take care not to bend sharply.
Install the Microscope Adaptor (if applicable)
1. Remove protective wrap from adaptor.
2. Insert the flange portion of the Microscope Adaptor into the light port on
the microscope, and secure it using the hardware provided on the
microscope.
Connections and Positioning
1. Remove red caps from light guide. Insert large end into light guide port on
unit (up to "B" line). Insert small end into microscope light guide port (or
adaptor), and secure it with hardware provided.
2. Position the equipment. Ensure adequate clearance for ventilation around
unit, and slack in the light guide.
3. Connect speedDIAL cable to "remote" port on main unit.
4. Connect USB cable to ports on main unit and computer. (For Windows
7/8.1, USB driver will install via internet after unit powers up, see user
guide for additional information.)
5. Connect external power supply to main unit.
6. Connect AC power to properly grounded outlet.
MANUAL OPERATION
1. Flip rocker switch to turn unit on.
2. When display shows "x%", it is ready to use.
3. Click speedDIAL to illuminate a specimen.
4. Turn speedDIAL to adjust intensity.
REGULATORY
(refer to user guide for complete details)
Product Safety and Electromagnetic Compatibility
The X-Cite 110LED has been tested and found to comply with product safety and
electromagnetic compatibility requirements. For a complete list of tests and for
certification details, please contact your X-Cite representative or visit
http://www.excelitas.com/Pages/Product/X-Cite-110LED.aspx.
CE Marking
 Council Directive 2014/35/EU
 Council Directive 2014/30/EU
 Council Directive 2012/19/EU
 Council Directive 2011/65/EU
WARNING: Never look at operating LED! The light could severely damage the cornea and retina of the eye if the light is observed directly. Eye shielding
must be used at all times as well as clothing to protect exposed skin
Refer to user guide for more details.
®

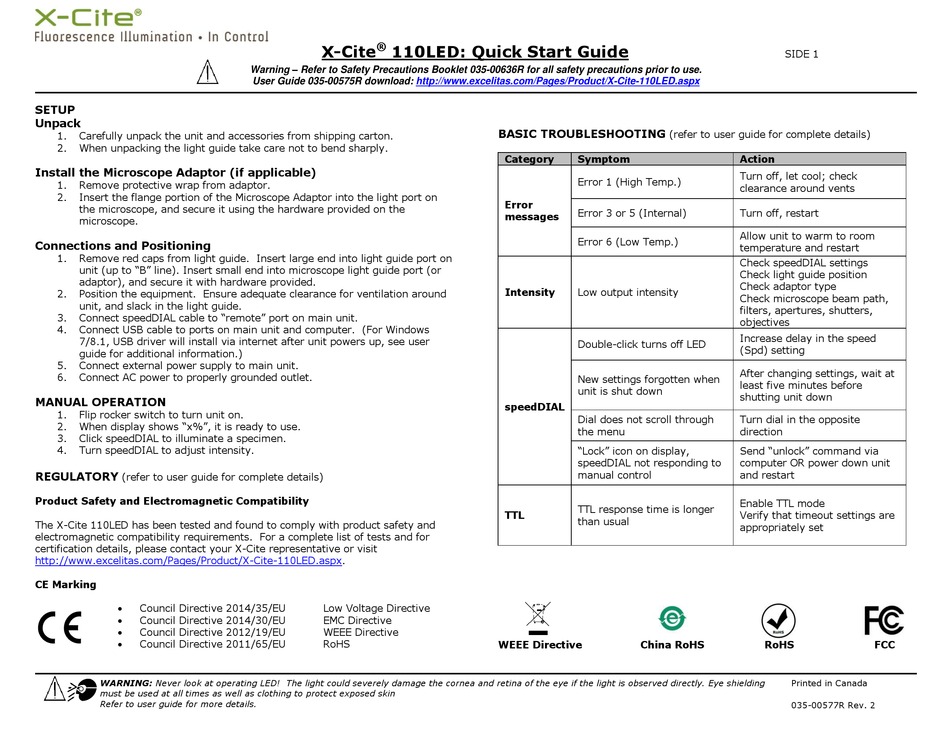

X-Cite 110LED: Quick Start Guide
Warning – Refer to Safety Precautions Booklet 035-00636R for all safety precautions prior to use.
User Guide 035-00575R download: http://www.excelitas.com/Pages/Product/X-Cite-110LED.aspx
Low Voltage Directive
EMC Directive
WEEE Directive
RoHS
BASIC TROUBLESHOOTING
(refer to user guide for complete details)
Category Symptom
Error 1 (High Temp.)
Error
Error 3 or 5 (Internal)
messages
Error 6 (Low Temp.)
Intensity Low output intensity
Double-click turns off LED
New settings forgotten when
unit is shut down
speedDIAL
Dial does not scroll through
the menu
"Lock" icon on display,
speedDIAL not responding to
manual control
TTL response time is longer
TTL
than usual
WEEE Directive China RoHS
SIDE 1
Action
Turn off, let cool; check
clearance around vents
Turn off, restart
Allow unit to warm to room
temperature and restart
Check speedDIAL settings
Check light guide position
Check adaptor type
Check microscope beam path,
filters, apertures, shutters,
objectives
Increase delay in the speed
(Spd) setting
After changing settings, wait at
least five minutes before
shutting unit down
Turn dial in the opposite
direction
Send "unlock" command via
computer OR power down unit
and restart
Enable TTL mode
Verify that timeout settings are
appropriately set
RoHS FCC
Printed in Canada
035-00577R Rev. 2
