Tersano SAO Installation Instructions

2
CARTRIDGE
2

MOUNTING GUIDE

1
SAO DISPENSER
The screw size is a #12 X 1 ½" hex washer head tapping screw.
You will need a 8mm socket, there is a plug that needs to be put in after drilling the hole with a ¼" drill bit. The dispenser mounting
holes (2) on the bottom measures 8 ½" center to center of the holes. This is for the inside holes that are shaped like a horseshoe
so the dispenser can be propped on these two screws for better handling during installation.
The top measures 11" center to center of the holes. It's suggested that the top holes are marked after the two on the bottom have
already been secured to the wall. The dispenser can then be set on the bottom screws and the top two holes can now be marked
for drilling. The holes from top to bottom measure 22 5/8" center to center.
2
CARTRIDGE
The cartridge bracket top holes measures 3 3/16" center to center, the bottom two are 3 ½" center to center and 5 1/8" from top to
bottom center to center. The screw size is #8 X 1 ½"drill size for the plug is 3/16", and the screw measures 1 ¼" long.
POWER CORD
Power cord measures at 10' in length.

IMPORTANT SAFEGUARDS

• Installation is correct ONLY when dispenser and cartridge are directly over a drain.
• Do not connect the dispenser to any water source other than municipally treated water.
• To reduce the risk of fire, do not install the dispenser near any burner, heater or cooking appliance.
• To protect against shock do not immerse power cord in water or any other liquid.
• Before plugging power cord into 120V power outlet, make sure FLOW switch is in
• Do not open the dispenser as this will void the warranty – contact your supervisor or call Tersano for repairs or assistance if required.
• Do not use the dispenser if it has a damaged cord or plug, if it is not working properly, or if a very strong ozone odor is present.
• Do not try to repair the dispenser yourself – this will void your warranty.
INSTALLATION INSTRUCTIONS
FOR INDOOR WALL MOUNT & DRY LOCATIONS ONLY
1. For correct installation, choose a location where both the dispensing box and cartridge tube will be affixed directly
over a sink or a floor drain.
2. Carefully remove all of the items from the cartons.
3. Remove mounting hardware and mounting template from plastic packages.
4. Affix the mounting template to the wall with tape. Drill the holes in the wall where indicated on the template.
5. Insert the #12 anchors into the 4 holes drilled for the dispenser. Attach the dispenser to the wall using the four #12 - 1 ½"
wallmount screws in the top and bottom. Not to be mounted on mobile devices, hand carts, etc.
6. Insert the #8 anchors into the two holes drilled for the cartridge bracket. Attach the cartridge bracket to the wall using the
two #8 - 1 ½ " screws.
7. Once brackets are mounted, hang the cartridge and insert the blue desiccant filter into the front of the dispenser until
it snaps into place.
8. Facing the cartridge, attach the quick disconnect end to the blue color fitting on the bottom left side connection of the cartridge.
Attach the opposite end (the white pressure regulator) of the hose onto the cold water supply (3/8" hose bibb).
9. Attach connector hose (with the screen filter) supplied to the right side outlet on the cartridge and attach opposite end to
COLD WATER IN on the dispenser (white color fittings into grey).
10. Ensure that the water flow is at minimum 4L/minute. This can be checked with a simple water pressure testing gauge
available at most hardware stores. NOTE: If greater than 65 PSI, a water pressure regulator will be required.
11. Attach hose with yellow handle to SAO SOLUTION OUT on the dispenser's barbed fitting - clamp is not required.
12. Connect only to a circuit that is protected by a ground-fault circuit-interrupter (GFCI).
NOTE
• Tersano is not responsible for ANY damages if the Tersano unit is not installed as instructed in the steps above and/or if
water is left on to the dispenser while not in use or being attended.
• Dispenser to be installed vertically as shown in the picture never horizontally. Doing so will damage the dispenser.
• The new hose-sets supplied with the appliance are to be used, old hose-sets should not be reused.
• Failure to follow the above installation instructions will void the warranty.

START-UP INSTRUCTIONS

Use the dispenser for intended use only: to fill mop buckets, auto-scrubbers, carpet extractors and spray bottles.
1. Install the SAO dispenser as per INSTALLATION INSTRUCTIONS above.
2. Make sure the power cord is plugged into 120V power outlet (220V where applicable).
3. Ensure COLD WATER IN hose is attached to open faucet or permanent cold water source with a
4. To start, press FLOW switch to ON position.
5. When SYSTEM READY indicator is GREEN , dispense into mop bucket, auto scrubber, carpet extractor or spray bottle.
6. Shut dispenser off when not in use by pressing FLOW switch to OFF position. To disconnect, ensure
position before removing plug from the outlet.
7. Ensure water supply to the dispenser is turned off when not in use.
8. If you encounter a red light with initial installation you may need to turn the device on and off multiple times as it sets itself.
Once set and installed it will charge thereafter.
NOTE: If you still get a red light, check that the cold water is turned on. Check that there are no kinks in the line to allow
uninterrupted flow of water. Also check that the cartridge is in properly.
Testing was performed using a duty cycle of 5 minutes on, 25 minutes off, with a maximum 60 minutes per 24 hour periods.
Do not exceed this duty cycle.
GROUNDING INSTRUCTIONS – This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance
is equipped with a cord having an appliance-grounding conductor and a grounding plug. The plug must be plugged into
an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
WARNING: Risk of Electric Shock. Disconnect power before servicing.
Never block or restrict SAO SOLUTION OUT hose with nozzle, clamp or shut-off valve. This may damage the dispenser and will void
the warranty. Always use FLOW ON/OFF switch to start or stop flow of Stabilized Aqueous Ozone.
WARNING: Improper connection of the appliance-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified technician.
This appliance is not intended for use by children or those with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2
4mm x 38mm (#8 X 1 1/2") Phillips Head
2
OFF position.
Pressure Regulator
COLD WATER IN
to
(attach to cold water supply)
flow minimum of 4L/minute.
FLOW switch is in OFF
1
SAO Dispenser & Cartridge
CARTRIDGE
4mm (3/16") Drill Bit
15.24cm
6"
10.8cm
4.25"
3.8cm
1.5"
57.15cm
22.5"
cartridge
QUICK
DISCONNECTS
COLD
WATER IN
hose
(121.92cm/48")
NOTE:
Tersano is not responsible for ANY damages if the Tersano unit
is not installed as instructed in the steps above and/or if water
is left on to the dispenser while not in use or being attended.
COLD
WATER
1
IN
French and Spanish translations on back.

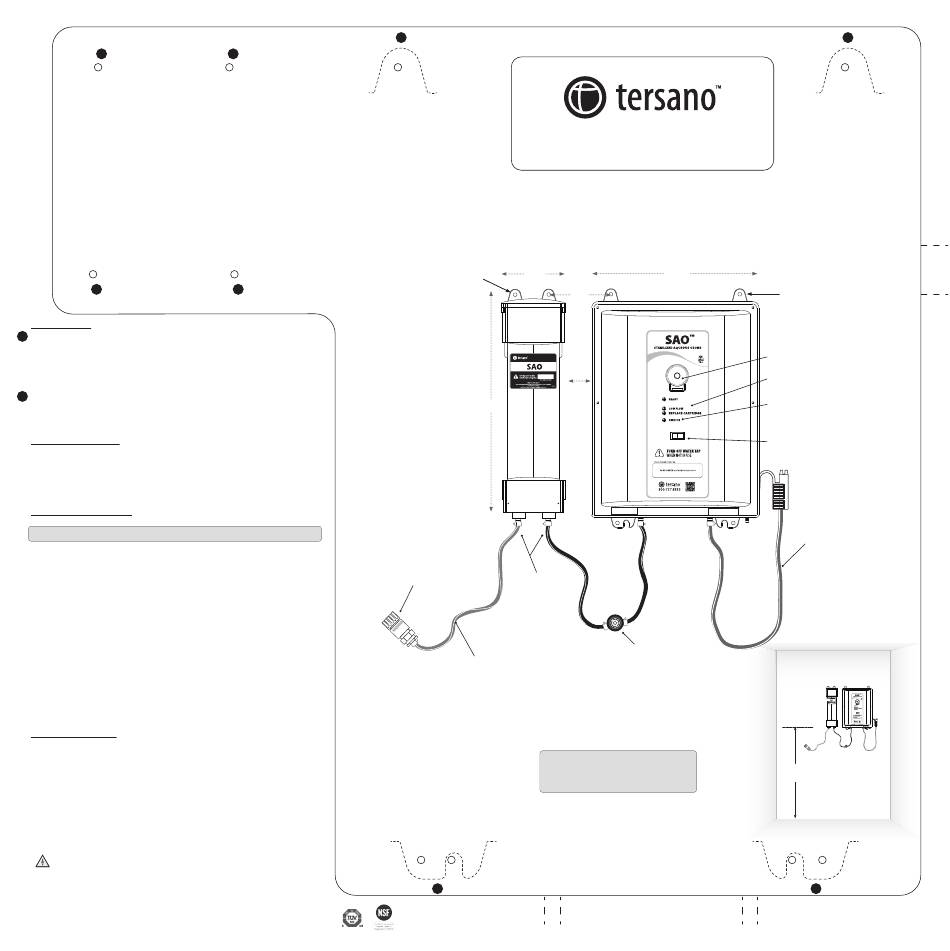

Mounting Template
SAO DISPENSER
35.56cm
14"
OFF ON
COLD WATER IN SAO SOLUTION OUT
Screen
Filter
SAO
SOLUTION
OUT
www.tersano.com
1-800-727-8835
1
ELECTRICAL
PLUG
6.35mm (1/4") Drill Bit
6mm x 38mm (#12 X 1 1/2") Hex Head
Desiccant Filter
Performance Indicators
Service Light
FLOW OFF/ON
switch
SAO SOLUTION OUT
hose
(182.88cm/72")
HEIGHT RECOMMENDATION
Cartridge SAO Dispenser
OFF ON
COLD WATER IN SAO SOLUTION OUT
Install the SAO dispenser with the
cartridge 122cm (48") from the
122 cm
bottom of the dispenser to the floor.
48"
Choose a location where both the
dispensing box and cartridge tube
will be affixed directly over a sink
or a floor drain.
1
Above diagram is a representation only
US & International Patents & Patents Pending
25209 JULY 2020
