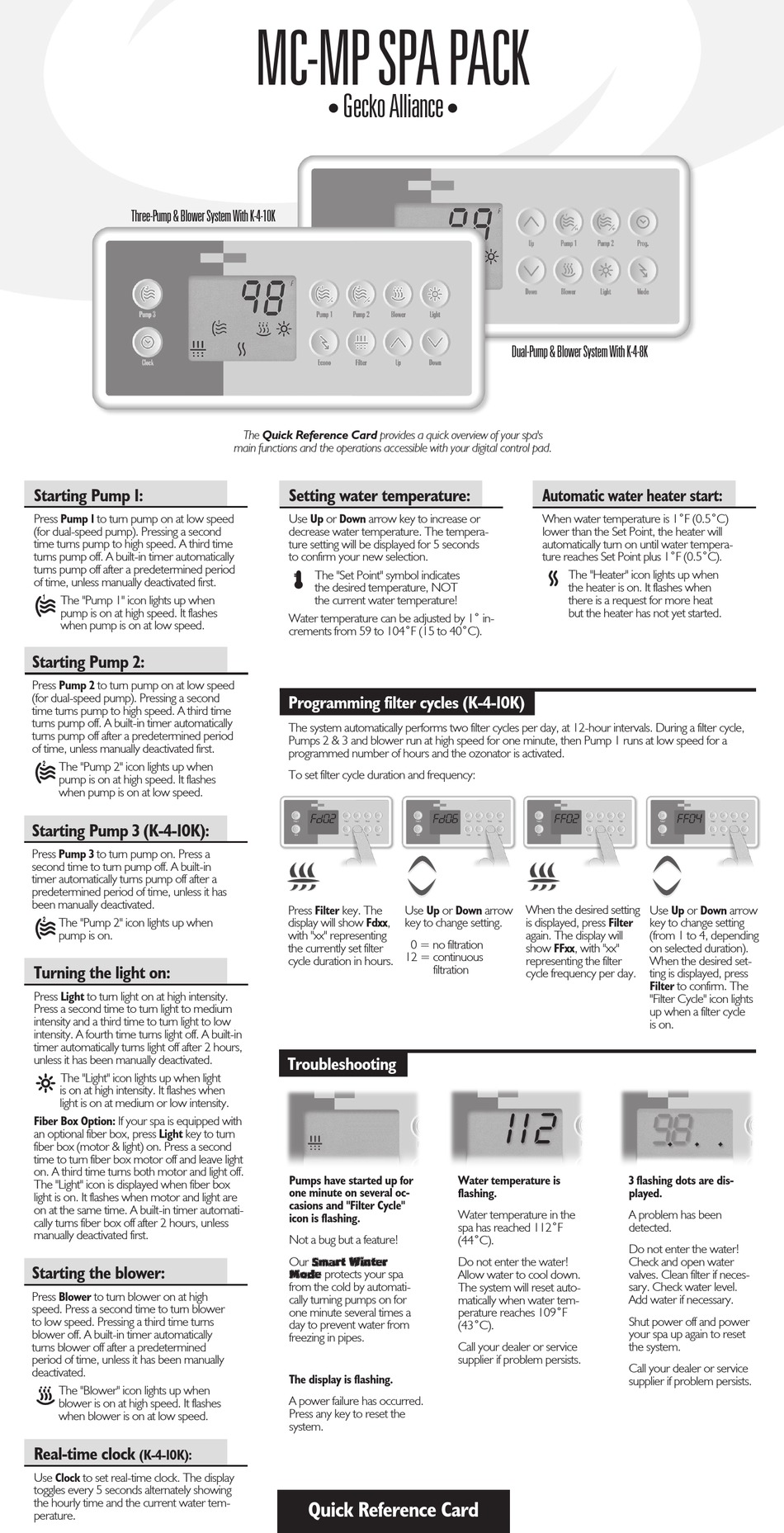

Gecko TSC-4 Quick Reference Card

Gecko TSC-4 Quick Reference Card

Mc-mp spa pack

Advertisement

Quick Links

Three-Pump&BlowerSystemWithK-4-10K
Starting Pump 1:
Press Pump 1 to turn pump on at low speed
(for dual-speed pump). Pressing a second
time turns pump to high speed. A third time
turns pump off. A built-in timer automatically
turns pump off after a predetermined period
of time, unless manually deactivated first.
The "Pump 1" icon lights up when
1
pump is on at high speed. It flashes
when pump is on at low speed.
Starting Pump 2:
Press Pump 2 to turn pump on at low speed
(for dual-speed pump). Pressing a second
time turns pump to high speed. A third time
turns pump off. A built-in timer automatically
turns pump off after a predetermined period
of time, unless manually deactivated first.
The "Pump 2" icon lights up when
2
pump is on at high speed. It flashes
when pump is on at low speed.
Starting Pump 3 (K-4-10K):
Press Pump 3 to turn pump on. Press a
second time to turn pump off. A built-in
timer automatically turns pump off after a
predetermined period of time, unless it has
been manually deactivated.
The "Pump 2" icon lights up when
2
pump is on.
Turning the light on:
Press Light to turn light on at high intensity.
Press a second time to turn light to medium
intensity and a third time to turn light to low
intensity. A fourth time turns light off. A built-in
timer automatically turns light off after 2 hours,
unless it has been manually deactivated.
The "Light" icon lights up when light
is on at high intensity. It flashes when
light is on at medium or low intensity.
Fiber Box Option: If your spa is equipped with
an optional fiber box, press Light key to turn
fiber box (motor & light) on. Press a second
time to turn fiber box motor off and leave light
on. A third time turns both motor and light off.
The "Light" icon is displayed when fiber box
light is on. It flashes when motor and light are
on at the same time. A built-in timer automati-
cally turns fiber box off after 2 hours, unless
manually deactivated first.
Starting the blower:
Press Blower to turn blower on at high
speed. Press a second time to turn blower
to low speed. Pressing a third time turns
blower off. A built-in timer automatically
turns blower off after a predetermined
period of time, unless it has been manually
deactivated.
The "Blower" icon lights up when
blower is on at high speed. It flashes
when blower is on at low speed.
Real-time clock
(K-4-10K):
Use Clock to set real-time clock. The display
toggles every 5 seconds alternately showing
the hourly time and the current water tem-
perature.
MC-MPSPAPACK
GeckoAlliance

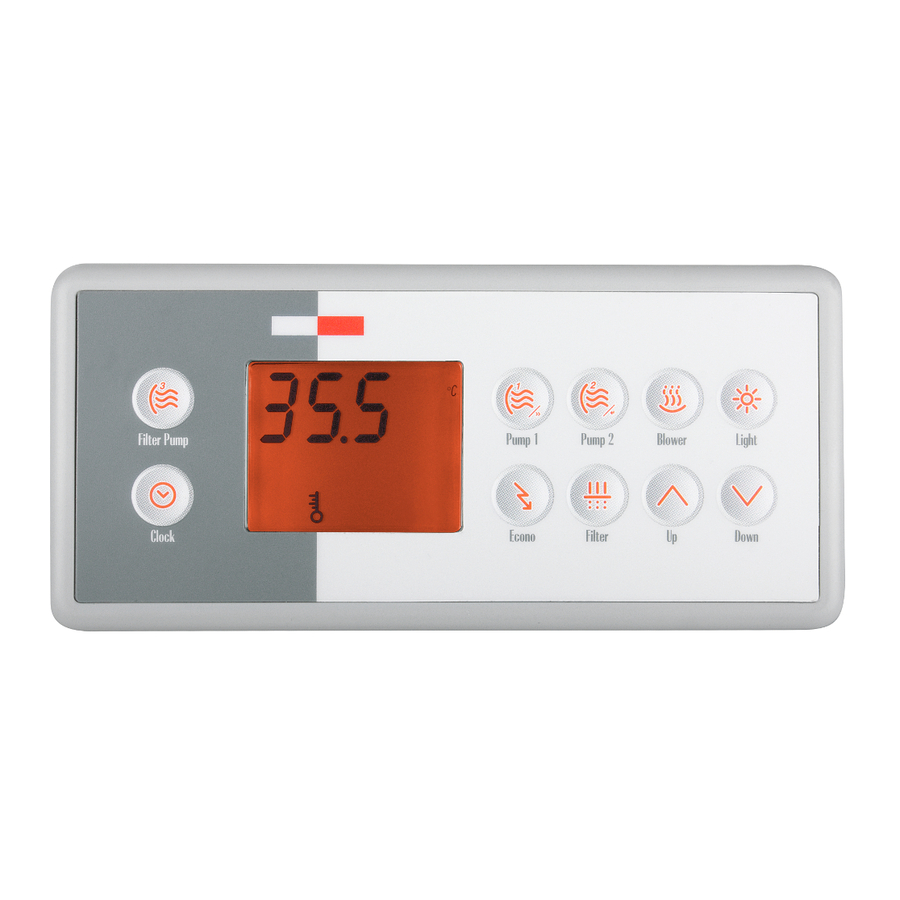

The Quick Reference Card provides a quick overview of your spa's
main functions and the operations accessible with your digital control pad.
Setting water temperature:
Use Up or Down arrow key to increase or
decrease water temperature. The tempera-
ture setting will be displayed for 5 seconds
to confirm your new selection.
The "Set Point" symbol indicates
the desired temperature, NOT
the current water temperature!
Water temperature can be adjusted by 1˚ in-
crements from 59 to 104˚F (15 to 40˚C).
Programming filter cycles (K-4-10K)
The system automatically performs two filter cycles per day, at 12-hour intervals. During a filter cycle,
Pumps 2 & 3 and blower run at high speed for one minute, then Pump 1 runs at low speed for a
programmed number of hours and the ozonator is activated.
To set filter cycle duration and frequency:
Press Filter key. The
display will show Fdxx,
with "xx" representing
the currently set filter
cycle duration in hours.
Troubleshooting
Pumps have started up for
one minute on several oc-
casions and "Filter Cycle"
icon is flashing.
Not a bug but a feature!
Our Smart Winter
Mode protects your spa
from the cold by automati-
cally turning pumps on for
one minute several times a
day to prevent water from
freezing in pipes.
The display is flashing.
A power failure has occurred.
Press any key to reset the
system.
Quick Reference Card
Dual-Pump&BlowerSystemWithK-4-8K
Automatic water heater start:
When water temperature is 1˚F (0.5˚C)
lower than the Set Point, the heater will
automatically turn on until water tempera-
ture reaches Set Point plus 1˚F (0.5˚C).
Use Up or Down arrow
When the desired setting
key to change setting.
is displayed, press Filter
again. The display will
0 = no filtration
show FFxx, with "xx"
12 = continuous
representing the filter
filtration
cycle frequency per day.
Water temperature is
flashing.
Water temperature in the
spa has reached 112˚F
(44˚C).
Do not enter the water!
Allow water to cool down.
The system will reset auto-
matically when water tem-
perature reaches 109˚F
(43˚C).
Call your dealer or service
supplier if problem persists.
The "Heater" icon lights up when
the heater is on. It flashes when
there is a request for more heat
but the heater has not yet started.
Use Up or Down arrow
key to change setting
(from 1 to 4, depending
on selected duration).
When the desired set-
ting is displayed, press
Filter to confirm. The
"Filter Cycle" icon lights
up when a filter cycle
is on.
3 flashing dots are dis-
played.
A problem has been
detected.
Do not enter the water!
Check and open water
valves. Clean filter if neces-
sary. Check water level.
Add water if necessary.
Shut power off and power
your spa up again to reset
the system.
Call your dealer or service
supplier if problem persists.
