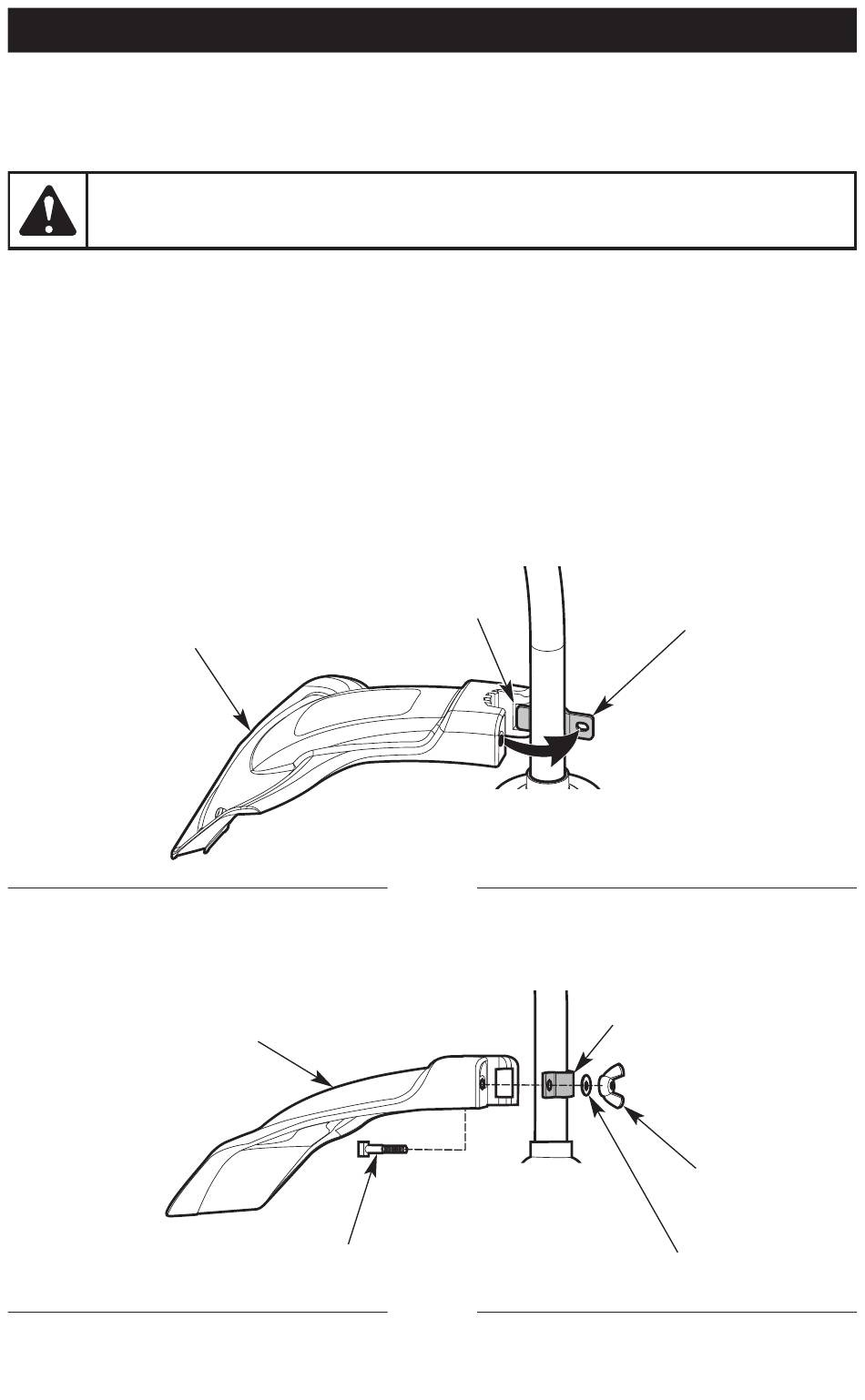

INSTALLING THE CUTTING HEAD SHIELD
(DXGST227CS)
WARNING:
cutting head shield in place.
1. Remove the wing nut and washer from the cutting head shield.
2. Insert the short tab (the one without a hole) on the mount bracket into the slot on the cutting head
shield (Fig. 1).
3. Rotate the cutting head shield counterclockwise to align the hole on the cutting head shield with
the hole on the mount bracket (Fig. 1).
4. Insert the square bolt into the hole underneath the cutting head shield (Fig. 2). Push the square
bolt through the cutting head shield and mount bracket.
5. Place the washer onto the square bolt (Fig. 2).
6. Screw the wing nut onto the square bolt until the cutting head shield is firmly in place (Fig. 2).
Cutting Head Shield
Cutting Head Shield

ASSEMBLY

To prevent serious personal injury, never operate the unit without the
Square Bolt
Slot
Fig. 1
Fig. 2
14
Mount Bracket
Mount Bracket
Wing Nut
Washer
