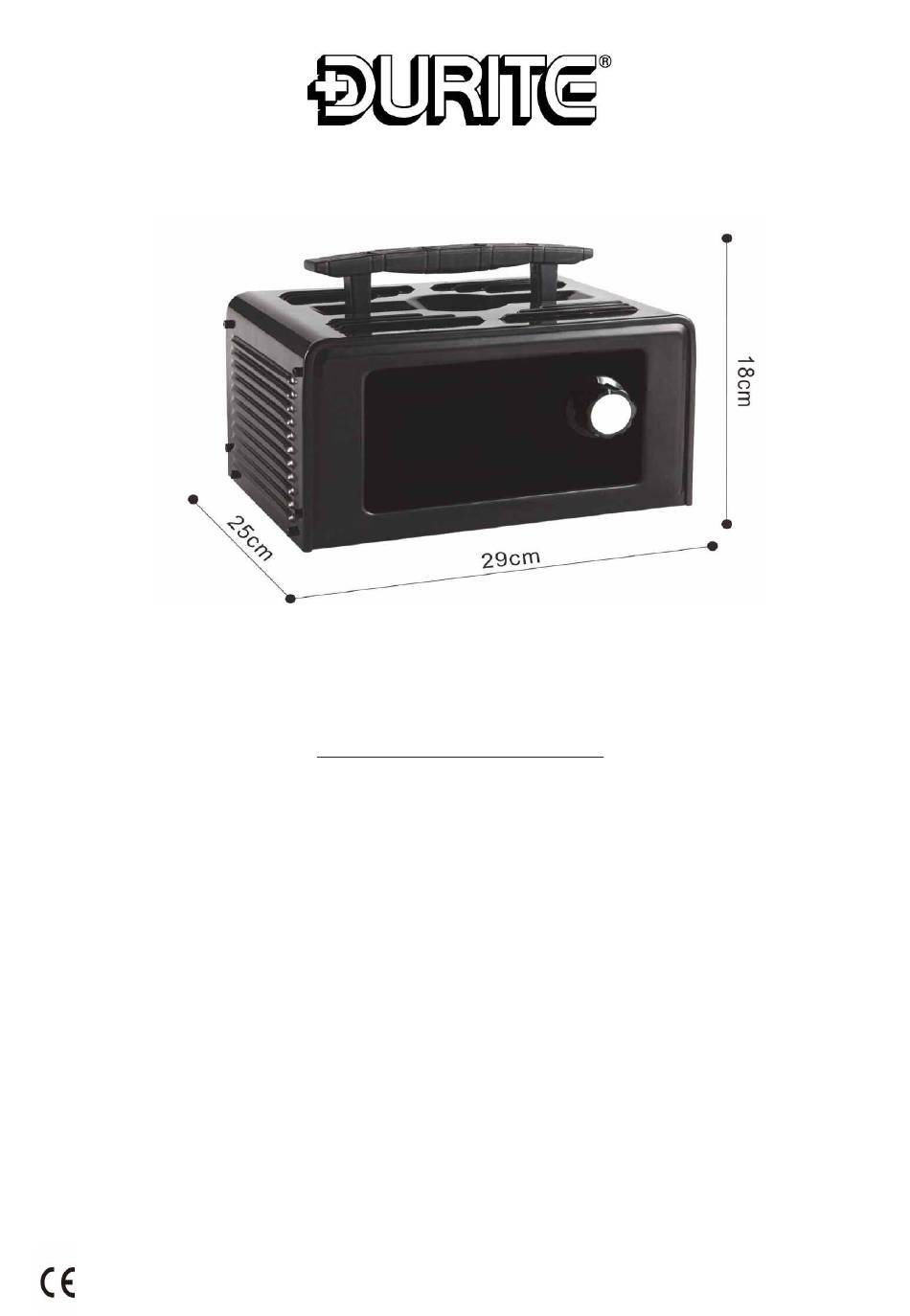

Intelligent Battery Charger and Jump Starter
Part 0-648-35
Before using this unit please read these instructions carefully. Take special care to follow the warnings indicated on the unit itself as
well as the safety suggestions listed below. Keep these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
1.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Working in vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For
this reason, it is of utmost important that each time before using your charger, you read this manual and follow the instruction ex-
actly.
3.To reduce risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufac-
turer of any equipment you intend to use in vicinity of battery. Review cautionary markings on these products and on engine
4.Use the charger in door only, do not expose it to rain.
www.durite.co.uk
0-648-35-LEAF
Advertisement
Table of Contents
Related Manuals for Durite 0-648-35
Summary of Contents for Durite 0-648-35
- Page 1 Intelligent Battery Charger and Jump Starter Part 0-648-35 Before using this unit please read these instructions carefully. Take special care to follow the warnings indicated on the unit itself as well as the safety suggestions listed below. Keep these instructions for future reference.
- Page 2 • Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery.A lead-acid battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing severe burns. www.durite.co.uk 0-648-35-LEAF...
- Page 3 See the table “DISPLAY CODES” for the fault codes F01 - F04. Full The battery is fully charged and the charger can be disconnected: Disconnect the charger from the mains. Disconnect the black and red clips from the terminals of the battery. www.durite.co.uk 0-648-35-LEAF...
- Page 4 DISPLAY CODES www.durite.co.uk 0-648-35-LEAF...
- Page 5 Inspect the liquid levels in each cell and top up if necessary, using the correct fluid. Any sur- plus fluid around the cell tops should be wiped off (this should be done with extreme care as it may be acidic/corrosive). Replace the caps. www.durite.co.uk 0-648-35-LEAF...
- Page 6 10,3-11,9 <20% 12,1 12,3 12,5 12,7 100% ATTENTION:The next test is only allowed when the display shows “STb” 4. Disconnect Disconnect the charger from the mains. Disconnect the black and red clips from the terminals of the battery. www.durite.co.uk 0-648-35-LEAF...
- Page 7 Using a hydrometer, you can check the specific gravity of the electrolyte in each cell.The hydrometer is use to suck up a quantity of fluid from the cell.The weighted float inside the hydrometer will register the condition of that cell. Put the fluid back into the cell after testing, taking care not to splash the fluid about. www.durite.co.uk 0-648-35-LEAF...
- Page 8 Input..................AC 220V-240V 50Hz Rated Current...............2.5A Output..................DC 12V 10-30A / DC24V 8-15A Boost Function..............<150A Starting Current..............75A @ 12V BatteryType.................Lead Acid ChargerType................9 Step Full Automatic Charging Cycle IP Rating................N/A LED Display................Yes Digital Diagnostics..............Yes Over Charge Protection............Yes Fault Protection..............Yes AlternatorTester..............Yes Weight..................3.95Kg Approval................CE www.durite.co.uk 0-648-35-LEAF...
