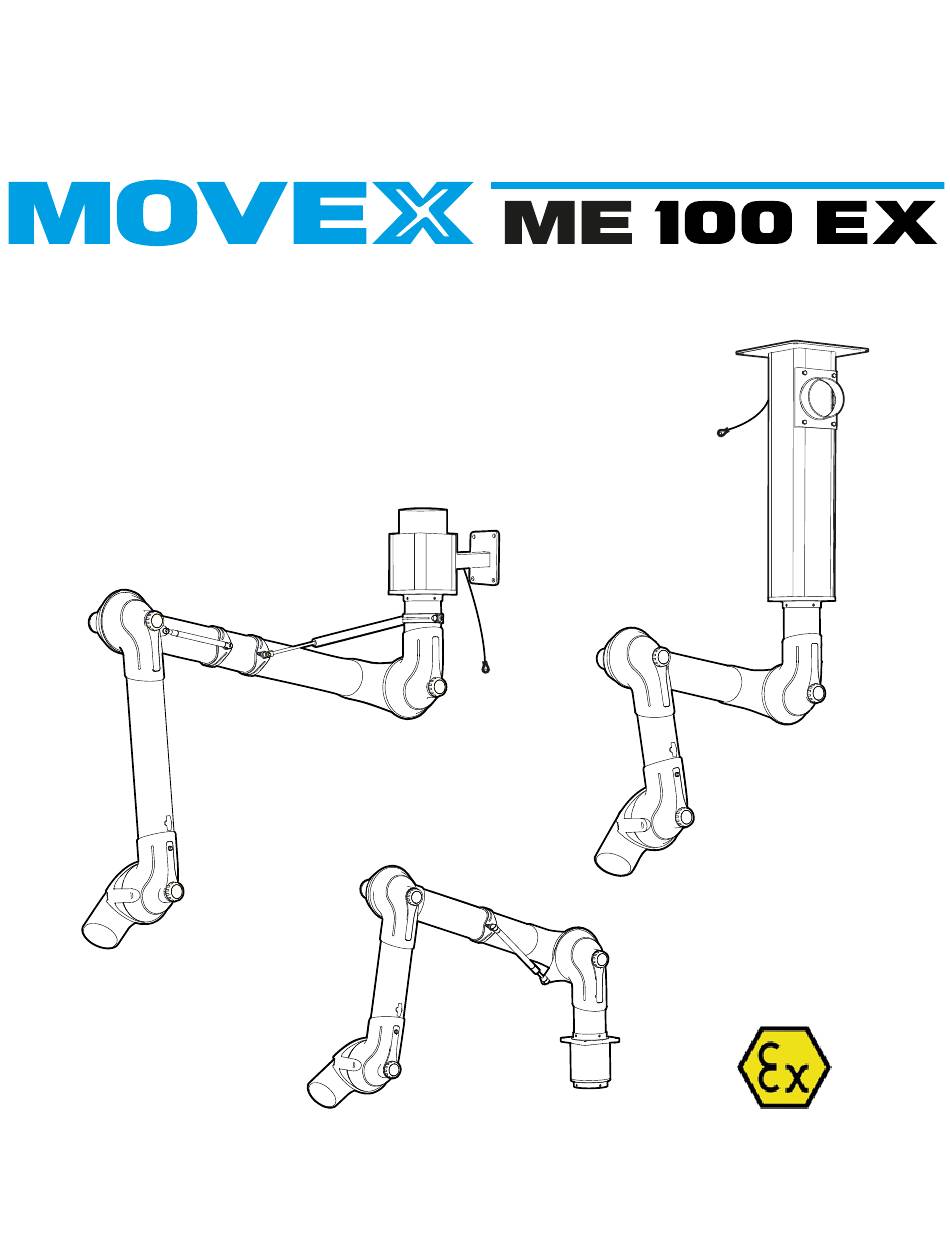

- Page 1 MANUAL M21W11_MME100_MUS_EN...
-
Page 2: Table Of Contents
Contents Important informa�on Applica�ons Technical data Installa�on and use Cleaning Service and repairs Spare parts and accessories Tes�ng and troubleshoo�ng Log book for measuring resistance Notes © Fumex AB, 2017 With provision for changes... -
Page 3: Important Informa�On
Important informa�on NOTE: Read the instruc�ons carefully before installing and using this equipment. The local extractor in the ME EX series is designed to meet the requirements in the ATEX direc�ve 2014/34/EU, applicable to equipment intended for use in poten�ally explosive atmospheres. In order to maintain explosion proof integrity, you must observe the instruc�ons in this manual. -
Page 4: Installa�On And Use
Installa�on and use The equipment can be delivered par�ally assembled and installed as per the following descrip�on. The equipment can be mounted on a wall or to the ceiling using special brackets. Measure a suitable height for the bracket before moun�ng the arm to the wall, and check that the exis�ng air duct reaches the hose when fi�ng to the ceiling, see figures. - Page 5 Torx 30 Le� Right M6x4 M6x4 MET 1150-100* MET 1350-100* MEB 1150-100* MET 1650-100 MEB 1350-100* MET 1900-100 MEB 1650-100 MET 2100-100 MEB 1900-100 MET 2650-100 *No gasspring *No gasspring...
- Page 6 Ensure that proper electrical contact is made. Connect the ground cable on the bracket to a suitable connec�on point with the grounding system of the installa�on. Important: Take the appropriate ac�on if a risk of corrosion has been assessed at the connec�on point.
-
Page 7: Cleaning
Cleaning Clean the extrac�on arm in the same way as the other equipment at the worksite, however, at least once a year. Clean when there is no risk of explosion in the environment. Observe the risk of electrosta�c discharge from people or cleaning tools where there are dust deposits. People are recommended to wear semi conduc�ve shoes and suitable clothing when cleaning where there is dust with MIE <... -
Page 8: Spare Parts And Accessories
Spare parts and accessories Always state the type designa�on and serial number of the arm (see ra�ng plate on arm), the number of required spares and the spare part name and number as per the list below, when ordering spare parts or accessories. - Page 9 MET 1650-100 MET 1900-100 Axis A-tube Gas spring holder (collar) Fric�on ring Gas spring Fric�on ring Connec�on tube Tension knob B-tube MET 1150-100 Damper MET 1350-100 Fric�on ring A-tube Axis Connec�on tube Complete hood joint Internal spring Fric�on ring Tension knob B-tube Damper MET 2100-100...
-
Page 10: Tes�Ng And Troubleshoo�Ng
Tes�ng and troubleshoo�ng The most important factor for sa�sfactory explosion protec�on is that the grounding of the equipment is in good condi�on. Check this by measuring the resistance with an accurate ohmmeter between the ground connec�ons at the bracket/connec�on to the extrac�on duct and suc�on head. The resistance between the suc�on head and the ground connec�on/air duct must not exceed 100 Ω. -
Page 11: Notes
Notes... - Page 12 104 Commerce Drive, Suit C, NORTHAMPTON, PA 19067, USA │ Tel 610-440-0478 │ Fax 610-440-0480 │ info@movexinc.com │ www.movexinc.com...
