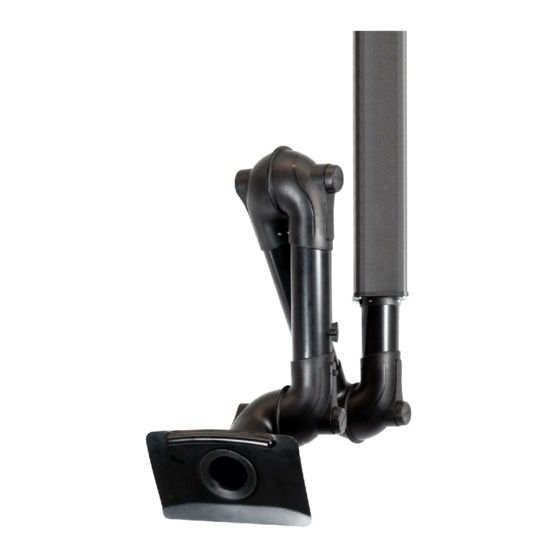

Summary of Contents for Fumex Movex ME 100 EX Series

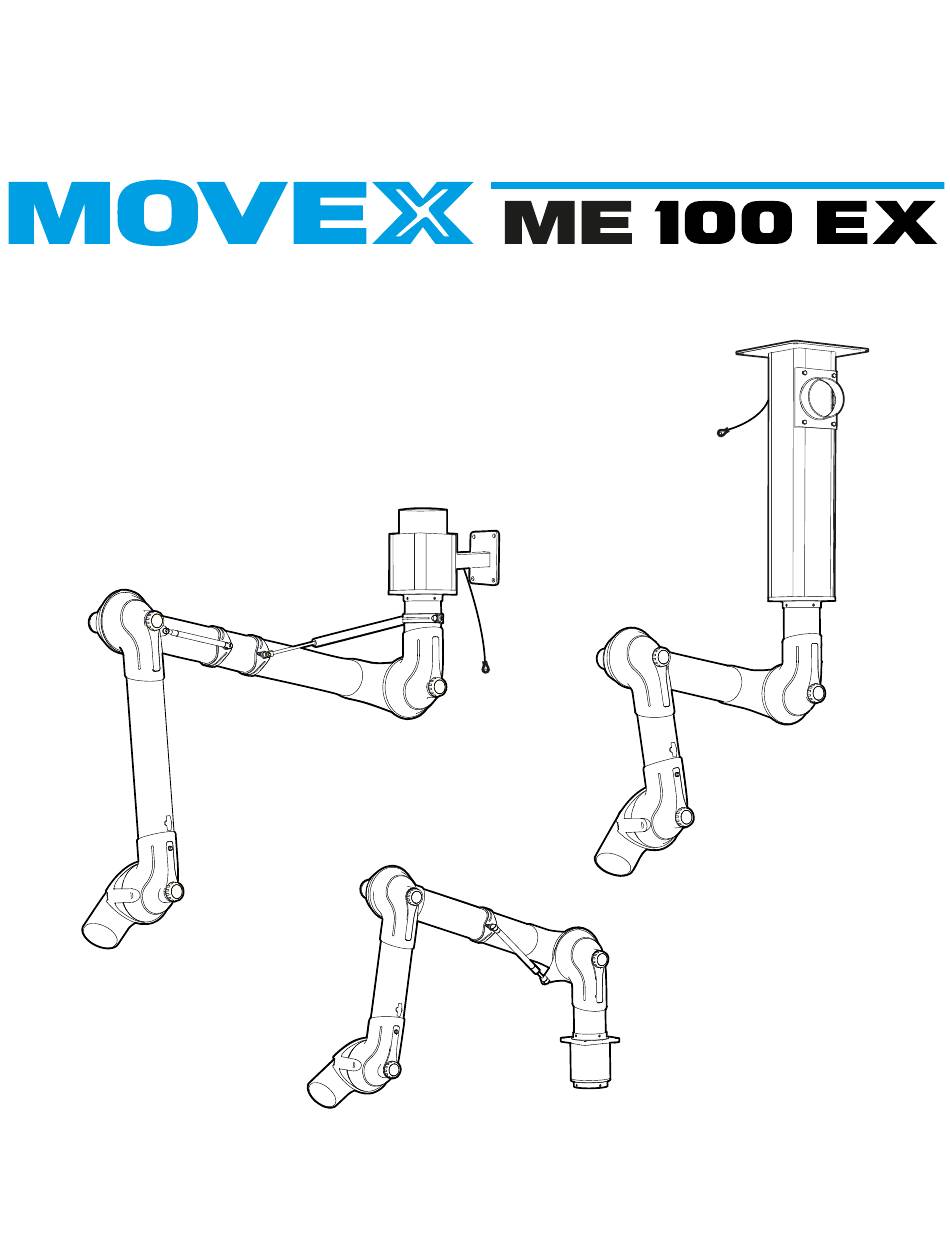

- Page 1 MANUAL M18W49_MME100_MUS_EN...
-
Page 2: Table Of Contents
Contents Important information Applications Technical data Installation and use Cleaning Service and repairs Spare parts and accessories Testing and troubleshooting Log book for measuring resistance Notes © Fumex AB, 2017 With provision for changes... -
Page 3: Important Information
Important information NOTE: Read the instructions carefully before installing and using this equipment. The local extractor in the ME EX series is designed to meet the requirements in the ATEX directive 94/9/EC, applicable to equipment intended for use in potentially explosive atmospheres. In order to maintain explosion proof integrity, you must observe the instructions in this manual. -
Page 4: Installation And Use
Installation and use The equipment can be delivered partially assembled and installed as per the following description. The equipment can be mounted on a wall or to the ceiling using special brackets. Measure a suitable height for the bracket before mounting the arm to the wall, and check that the existing air duct reaches the hose when fitting to the ceiling, see figures. - Page 5 Torx 30 Left Right M6x4 M6x4 MET 1150-100* MET 1350-100* MEB 1150-100* MET 1650-100 MEB 1350-100* MET 1900-100 MEB 1650-100 MET 2100-100 MEB 1900-100 MET 2650-100 *No gasspring *No gasspring...
- Page 6 Ensure that proper electrical contact is made. Connect the ground cable on the bracket to a suitable connection point with the grounding system of the installation. Important: Take the appropriate action if a risk of corrosion has been assessed at the connection point.
-
Page 7: Cleaning
Cleaning Clean the extraction arm in the same way as the other equipment at the worksite, however, at least once a year. Clean when there is no risk of explosion in the environment. Observe the risk of electrostatic discharge from people or cleaning tools where there are dust deposits. People are recommended to wear semi conductive shoes and suitable clothing when cleaning where there is dust with MIE <... -
Page 8: Spare Parts And Accessories
Spare parts and accessories Always state the type designation and serial number of the arm (see rating plate on arm), the number of required spares and the spare part name and number as per the list below, when ordering spare parts or accessories. - Page 9 MET 1650-100 MET 1900-100 Axis A-tube Gas spring holder (collar) Friction ring Gas spring Friction ring Connection tube Tension knob B-tube MET 1150-100 Damper MET 1350-100 Friction ring A-tube Axis Connection tube Complete hood joint Internal spring Friction ring Tension knob B-tube Damper MET 2100-100...
-
Page 10: Testing And Troubleshooting
Testing and troubleshooting The most important factor for satisfactory explosion protection is that the grounding of the equipment is in good condition. Check this by measuring the resistance with an accurate ohmmeter between the ground connections at the bracket/connection to the extraction duct and suction head. The resistance between the suction head and the ground connection/air duct must not exceed 100Ω. -
Page 11: Notes
Notes... - Page 12 104 Commerce Drive, Suit C, NORTHAMPTON, PA 19067, USA │ Tel 610-440-0478 │ Fax 610-440-0480 │ info@movexinc.com │ www.movexinc.com...
