AC Adaptor
Adaptateur Secteur
Operating Instructions
Mode d'emploi
AC-PW20
© 2010 Sony Corporation
Thank you for purchasing the Sony AC Adaptor.
Before operating the unit, please read this manual thoroughly and retain it for future
reference.
Owner's Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. AC-PW20
Serial No.
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
IMPORTANT SAFETY
INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor
of the proper configuration for the power outlet.
The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
PRECAUTIONS
The set is not disconnected from the AC power source (mains) as long as it is
connected to the wall outlet, even if the set itself has been turned off.
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect
the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction
occurs while using your Interchangeable Lens Digital Camera.
For the Customers in the U.S.A.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
For the Customers in Europe
<Notice for the customers in the countries applying EU Directives>
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters please refer to the addresses given in separate
service or guarantee documents.
Disposal of Old Electrical & Electronic Equipment (Applicable
in the European Union and other European countries with
separate collection systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please
contact your local Civic Office, your household waste disposal service
or the shop where you purchased the product.
Notice for the Customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to this equipment for your safety
and convenience.
Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as
the supplied one and approved by ASTA or BSI to BS1362 (i.e., marked with an
or
mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to
attach the fuse cover after you change the fuse. Never use the plug without the fuse
cover. If you should lose the fuse cover, please contact your nearest Sony service
station.
AC-PW20 can be used as follows
4-181-837-11 (1)

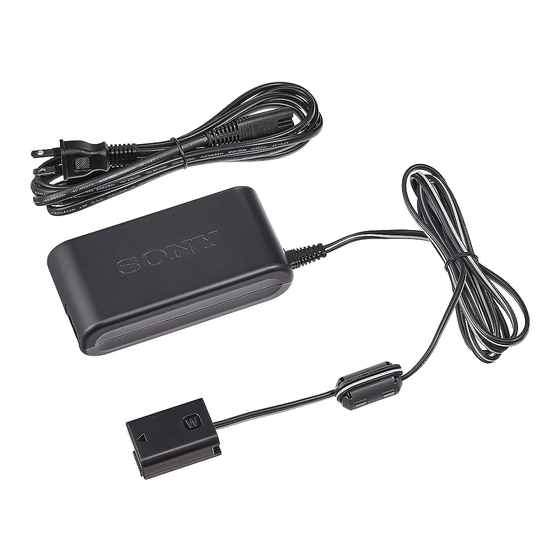

The AC-PW20 is a DC 7.6 V AC Adaptor for supplying power from the mains
supply (wall outlet) to operate a device (Interchangeable Lens Digital Camera). You
cannot use this unit to recharge by connecting it directly to a battery pack.

Notes on Use

This unit does not have dust-proof, splash-proof or water-proof

specifications.

Warranty for Recorded Content
Contents of the recording cannot be compensated if recording or playback is not
made due to a malfunction of this unit.
Others
The negligible amount of electric current will flow into the AC Adaptor as long as
the AC Adaptor is plugged into the wall outlet.
Unplug the unit from the wall outlet if it will not be used for extended period of
time. To disconnect the cord, pull it out by the plug. Never pull the cord itself.
Do not operate the unit with a damaged cord or if it has been dropped or
damaged.
Use this unit near to a wall outlet. This is to ensure that the power plug can
be immediately unplugged from the wall outlet to turn the power off if some
abnormality occurs during use.
The nameplate indicating operating voltage, power consumption, etc. is located on
the bottom.
Be sure that nothing metallic comes into contact with the metal parts of the unit
or connecting plate. If it does, a short may occur and the unit may be damaged.
Make sure no foreign matter such as dirt or sand gets onto the contact points of
the connecting plate before use.
Always keep the metal contacts clean.
Do not disassemble or convert the unit.
Do not apply mechanical shock or drop the unit.
While the unit is in use, it gets warm. But this is normal.
Keep the unit away from AM receivers, because it will disturb AM reception.
Do not place the unit in a location where it is:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Vibrating
Placing this unit in locations subject to the direct sunlight such as on dashboards
or near heating apparatus may cause this unit to deform or malfunction.
Do not use the unit placed in a narrow space, such as between a wall and
furniture.
Do not place objects filled with liquids, such as vases on the apparatus.
If any difficulty should arise, unplug the unit and contact your nearest Sony dealer.
Connecting to the Wall Outlet for Use
Also refer to the operating instructions for the device (Interchangeable Lens Digital
Camera) you are using.
To the battery insertion slot of the device
(Interchangeable Lens Digital Camera) you are using
Connecting plate
 Insert the connecting plate of this unit to the battery insertion slot
of the device you are using.
 Connect the AC Power cord to this unit.
 Connect the AC Power cord to the wall outlet.
Specifications
AC Adaptor AC-PW20
Input rating
Output rating
Operating temperature
Storage temperature
Dimensions
Mass
* See the label on this unit for other specifications.
Included items
About the supplied power cord
The supplied power cord is for exclusive use with this unit and cannot be used with
other electrical devices.
Design and specifications are subject to change without notice.
is a trademark of Sony Corporation.
Do not connect the AC Adaptor to a voltage adaptor (travel converter) for overseas
travel. This may result in overheating or other malfunction.
Connecting cord
to wall outlet
AC Power
cord
AC Adaptor AC-PW20
100 V - 240 V AC 50/60 Hz
DC 7.6 V
0 °C to 40 °C (32 °F to 104 °F)
–20 °C to +60 °C (–4 °F to +140 °F)
Approx. 127 × 35 × 63 mm (w/h/d)
(5 × 1 7/16 × 2 1/2 inches)
(excluding the projecting parts)
Approx. 310 g (11.0 oz)
AC Adaptor (AC-PW20) .......(1)
AC Power cord .......(1)
Set of printed documentation
Representative plug of power supply cord of countries/regions
around the world.
B type
BF type
B3 type
A type
(American Type)
(British Type)
(British Type)
(British Type)
The representative supply voltage and plug type are described in this chart.
Depend on an area, Different type of plug and supply voltage are used.
Attention: Power cord meeting demands from each country shall be used.
For only the United States
Use a UL Listed, 1.5-3 m (5-10 ft), Type SPT-2 or NISPT-2, AWG no.18 power
supply cord, rated for 125V 7A, with a polarized NEMA 1-15P plug rated for 125V
15A. "
Europe
Countries/Regions
Voltage
Frequency (Hz)
Austria
230
50
Belgium
230
50
Czech
220
50
Denmark
230
50
Finland
230
50
France
230
50
Germany
230
50
Greece
220
50
Hungary
220
50
Iceland
230
50
Ireland
230
50
Italy
220
50
Luxemburg
230
50
Netherlands
230
50
Norway
230
50
Poland
220
50
Portugal
230
50
Romania
220
50
Russia
220
50
Slovak
220
50
Spain
127/230
50
Sweden
230
50
Switzerland
230
50
UK
240
50
Asia
Countries/Regions
Voltage
Frequency (Hz)
China
220
50
Hong Kong
200/220
50
India
230/240
50
Indonesia
127/230
50
Japan
100
50/60
Korea (rep)
220
60
Malaysia
240
50
Philippines
220/230
60
Singapore
230
50
Taiwan
110
60
Thailand
220
50
Vietnam
220
50
Oceania
Countries/Regions
Voltage
Frequency (Hz)
Australia
240
50
New Zealand
230/240
50
North America
Countries/Regions
Voltage
Frequency (Hz)
Canada
120
60
USA
120
60
Central America
Countries/Regions
Voltage
Frequency (Hz)
Bahamas
120/240
60
Costa Rica
110
60
Cuba
110/220
60
Dominican (rep)
110
60
El Salvador
110
60
Guatemala
120
60
Honduras
110
60
Jamaica
110
50
Mexico
120/127
60
Nicaragua
120/240
60
Panama
110/220
60
South America
Countries/Regions
Voltage
Frequency (Hz)
Argentina
220
50
Brazil
127/220
60
Chile
220
50
Colombia
120
60
Peru
220
60
Venezuela
120
60
Middle East
Countries/Regions
Voltage
Frequency (Hz)
Iran
220
50
Iraq
220
50
Israel
230
50
Saudi Arabia
127/220
50
Turkey
220
50
UAE
240
50
Africa
Countries/Regions
Voltage
Frequency (Hz)
Algeria
127/220
50
Congo (dem)
220
50
Egypt
220
50
Ethiopia
220
50
Kenya
240
50
Nigeria
230
50
South Africa
220/230
50
Tanzania
230
50
Tunisia
220
50
C type
SE type
O type
(CEE Type)
(CEE Type)
(Ocean Type)
Plug type
C
C
C
C
C
C
C
C
C
C
C/BF
C
C
C
C
C
C
C
C
C
C
C
C
BF
Plug type
A
BF
C
C
A
C
BF
A/C
BF
A
C/BF
A/C
Plug type
O
O
Plug type
A
A
Plug type
A
A
A/C
A
A
A
A
A
A
A
A
Plug type
C/BF/O
A/C
C
A
A/C
A
Plug type
C/BF
C/BF
C
A/C/BF
C
C/BF
Plug type
C
C
C
C
C/BF
C/BF
C/BF
C/BF
C

Advertisement

   Also See for Sony AC-PW20

   Related Manuals for Sony AC-PW20

   Summary of Contents for Sony AC-PW20

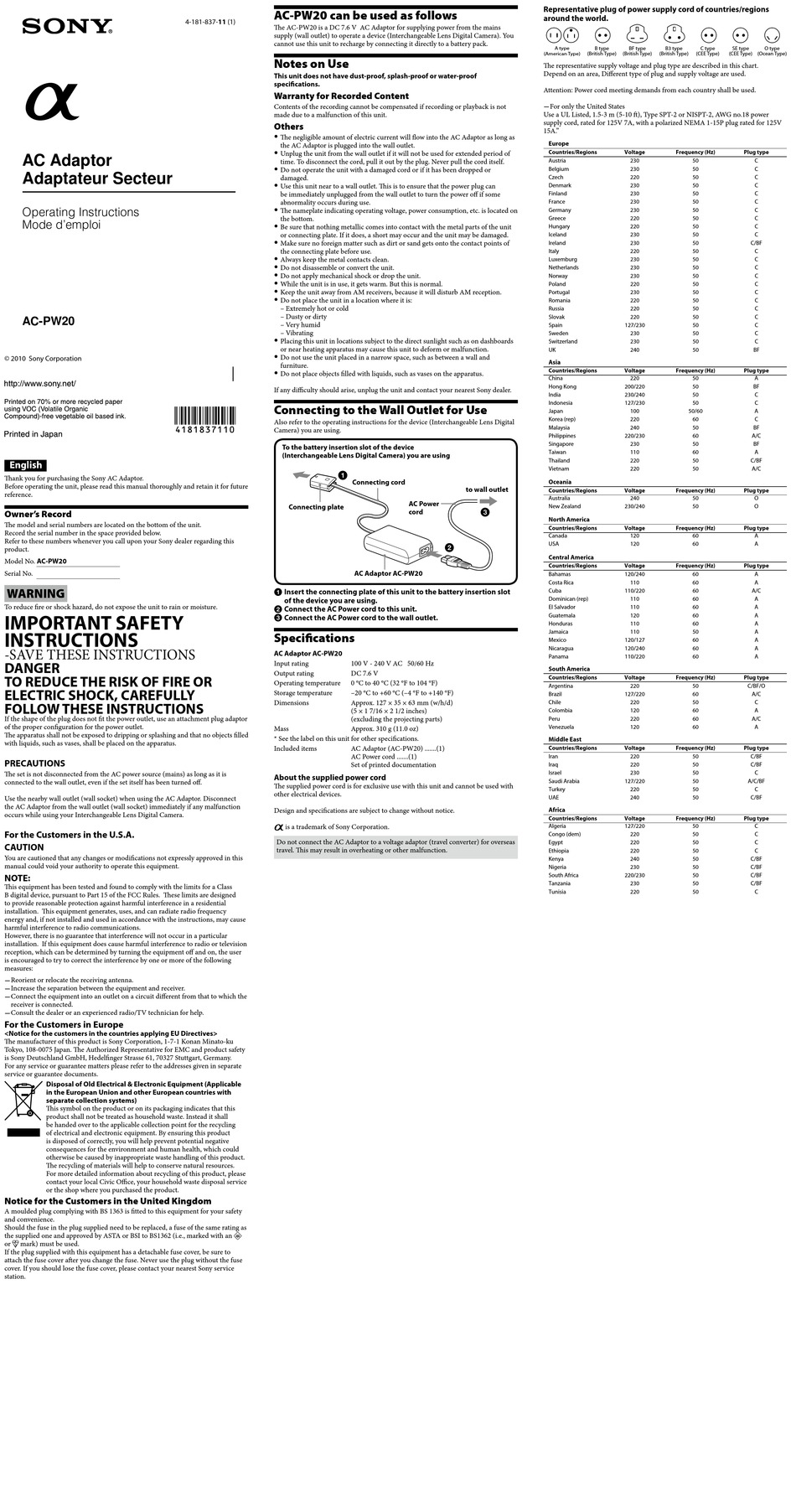

  • Page 1: Notes On Use

    If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

  • Page 2

     Ne posez pas d’ o bjets remplis de liquides, comme des vases, sur l’appareil. En cas de problème, débranchez l’appareil et contactez le revendeur Sony le plus proche. Raccordement à une prise murale Reportez-vous aussi au mode d’ e mploi de l’appareil (appareil photo à objectif interchangeable) que vous utilisez.

This manual also for:

Ac-e60a

Comments to this Manuals

Symbols: 0
Latest comments:
