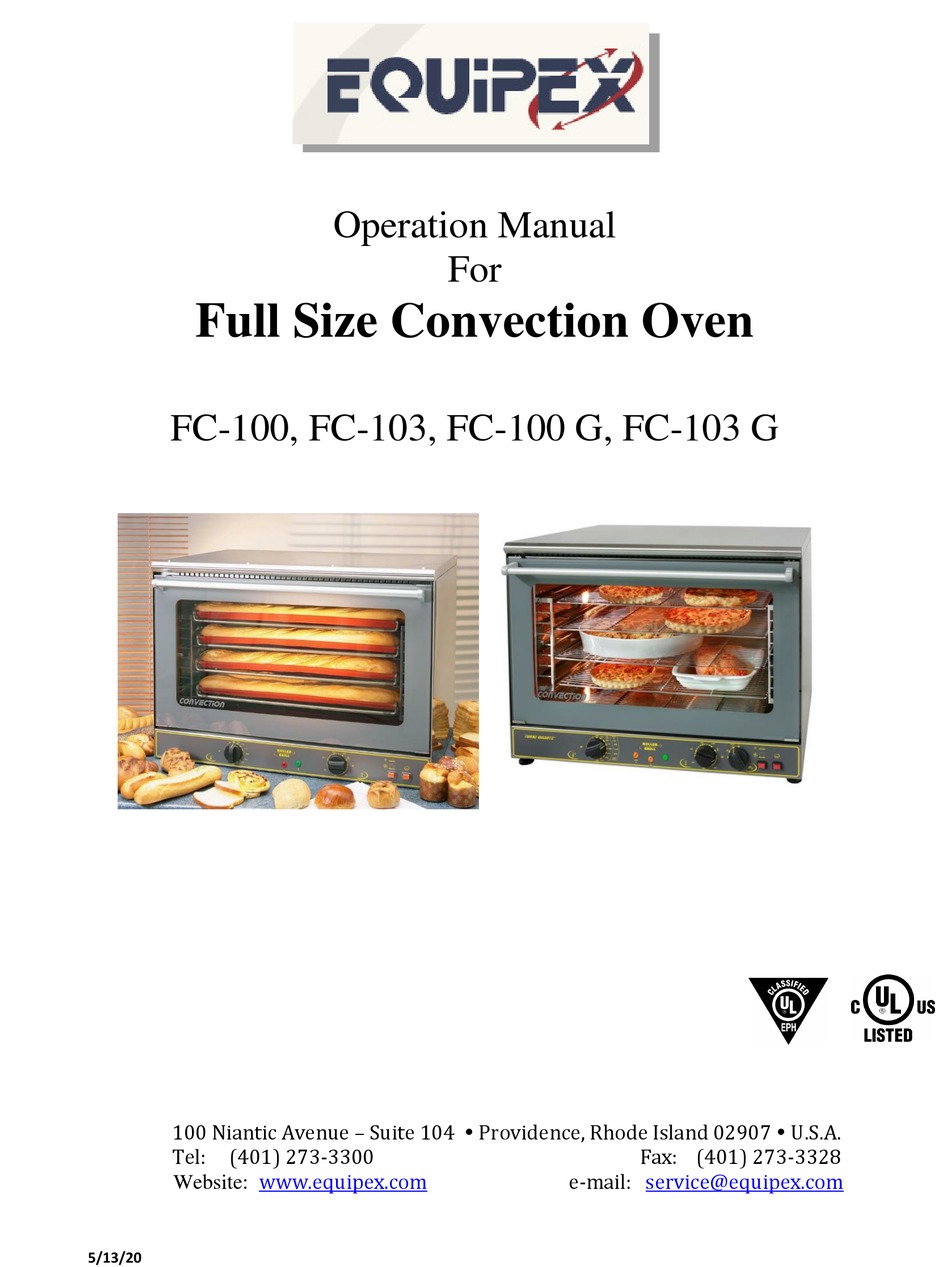

- Page 1 Operation Manual Full Size Convection Oven FC-100, FC-103, FC-100 G, FC-103 G 100 Niantic Avenue – Suite 104 Providence, Rhode Island 02907 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328 www.equipex.com e-mail: service@equipex.com Website: 5/13/20...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. Do not touch hot surfaces; use handles or knobs. 3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid. 4. -
Page 3: Installation

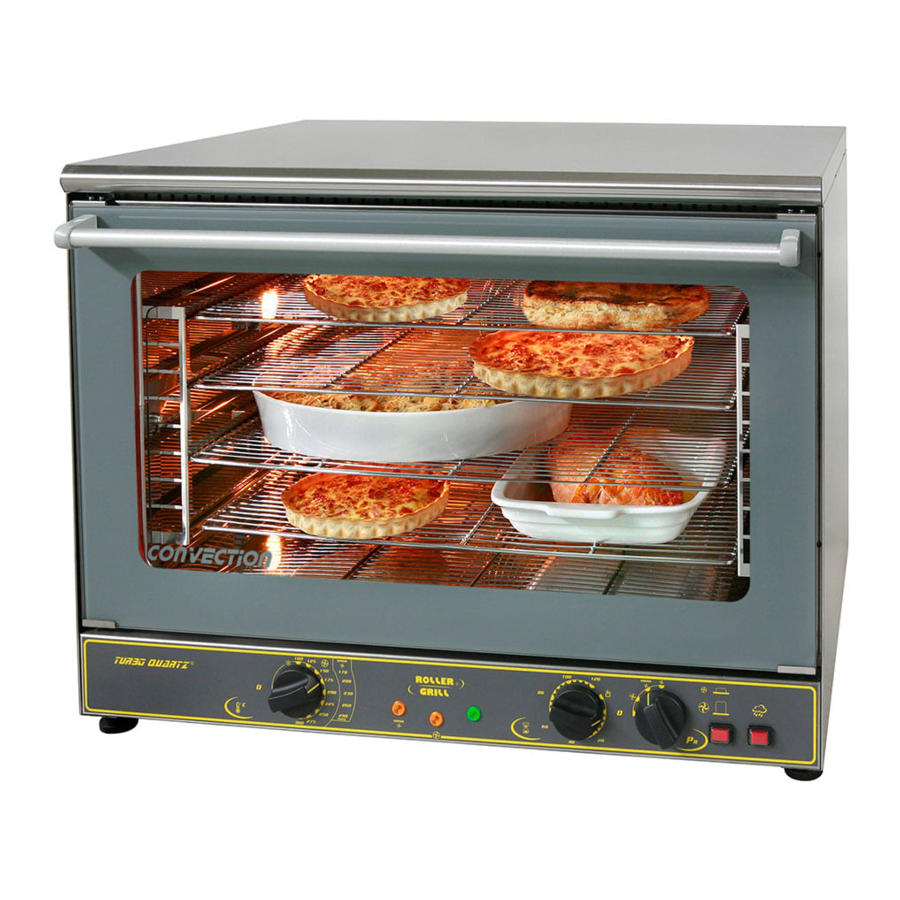

INTRODUCTION The Roller Grill by Equipex Full Size Convection Ovens — Models FC-100, FC-103, FC100 G and FC103 G, are uniquely designed to offer quality baking and cooking, with the “G” series also adding broiling and finishing. These ovens are constructed of food service quality stainless steel and are equipped with a rear mounted reversing blower motor and convection heating element. -
Page 4: Operation
before operating. If you wish to use the steam feature, connect the cold-water supply using a ¾ inch NPT connector (not supplied), to the inlet at the rear back left corner of the oven, under the rear enclosure. Turn on the water supply and check for leaks. Connect the oven to the proper dedicated circuit. -
Page 5: Oven Door Removal
Defrosting The “G” models offer a fan only position, indicated by the fan alone symbol. This mode can be used to run the motor, independent of heat, for the purpose of defrosting products more quickly using the convection airflow. CLEANING WARNING: Disconnect (unplug) electrical power supply before cleaning Allow the oven to cool before cleaning. - Page 6 3. Tilt the door up at a 45-60-degree angle (hinge lever arm will be released) 4. Pull the door out of the hinge slot *NOTE: What hinge looks like in the open position Upon removal, the door can be washed or cleaned, both on the inside and on the outside.
- Page 7 OVEN DOOR INSTALLATION 1. Ensure that the notch on the bottom of the hinge fits onto the lip in the opening of the oven frame 2. Move the hinge lock to the “down” position to restore proper hinge operation 3. Do NOT leave the Hinge lock in the “UP” position at the end of installation NOTE: Incorrect hinge installation positions...
- Page 8 If you have trouble locating a service agency in your area, please consult our website at www.equipex.com or call us at 1-800-649- 7885 and ask for customer service.
- Page 9 FC-100/103...
- Page 10 Parts List Dwg # Part # Description 91049 Top Cover 91034 Ventilation Cover 91002D Right Outside Cover A18022 Light with Holder H03006 Door Seal 91035SE Oven Chamber A07036 Door Switch B09005 Door Hinge 91019ECHE Shelf Holder A08009 Green Power Light A07015 Steam Momentary Switch A07014...
- Page 11 FC-100G/103G...
- Page 12 Parts List Dwg # Part # Description 91049 Top Cover 91034 Ventilation Cover 91002D Right Outside Cover A18022 Light with Holder H03006 Door Seal 91035SE Oven Chamber A07036 Door Switch B09005 Door Hinge 91019ECHE Shelf Holder A08009 Green Power Light A07015 Steam Momentary Switch A07014...
-
Page 13: Limited Warranty
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It does not apply to any item which has been repaired or altered in any way so as, in the judgment of EQUIPEX, to affect its reliability.
