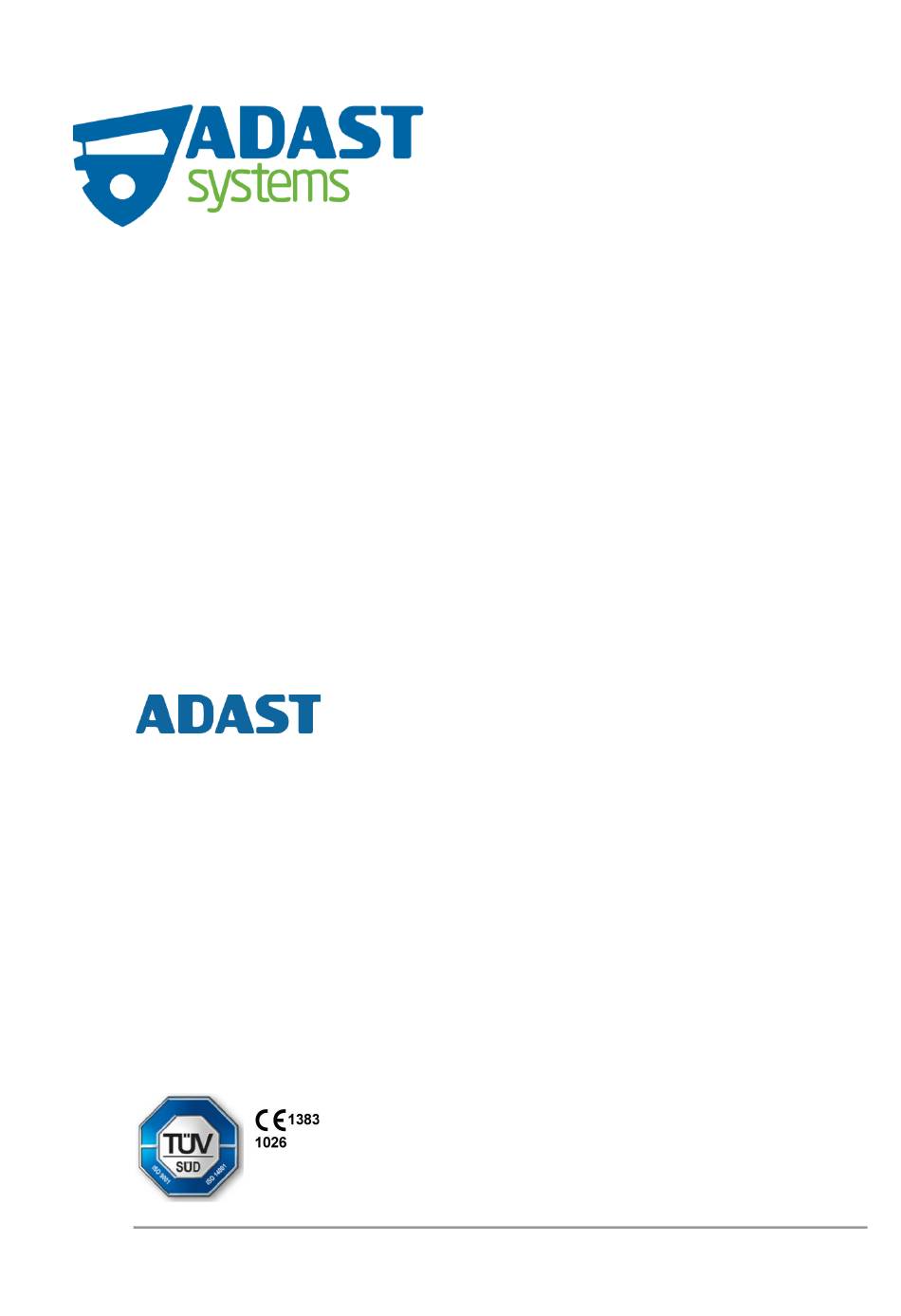

USER´S MANUAL
Instructions for Operation, Maintenance
and Installation
Multi-product fuel Dispenser operating by Suction or
Pressure Pumping System
V-line 46xx.xxx
V-line 47xx.xxx
Adast Systems, a.s., 679 04 Adamov No. 496, Czech Republic
T +420 516 519 201, F +420 516 519 102, sales@adastsystems.cz
www.adastsystems.cz
MAJOR
OÚ/003/2005/MSS/A
XI/2018
