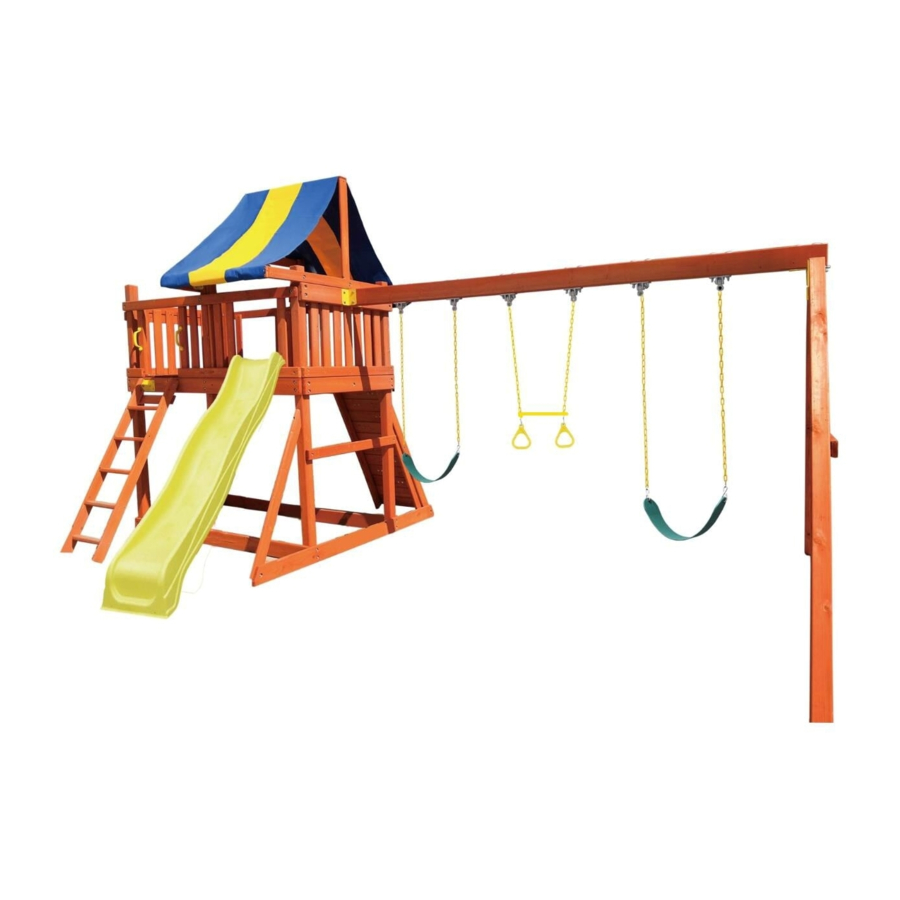

Bogong Multi
WARNING: ONLY FOR DOMESTIC OUTDOOR USE.
THIS PLAYSET SATISFIES ALL THE REQUIREMENTS OF THE AUSTRALIAN STANDARD AS/NZS ISO 8124 AND HAS BEEN CERTIFIED
BY AN INDEPENDENT LABORATORY. TO GUARANTEE SAFETY, PLEASE GIVE SPECIAL ATTENTION TO THE ASSEMBLY, SAFETY,
AND CARE INSTRUCTONS DETAILED IN THIS DOCUMENT.
IMPORTANT NOTICE FOR TIMBER CARE & MAINTENANCE
THIS PRODUCT CONTAINS TIMBER COMPONENTS THAT ARE NATUTALLY SUBJECT TO DETERIORATION IN THE OUTDOOR ELEMENTS
AFTER YEARS OF EXPOSURE.
TO COMBAT THE EFFECTS OF OUTDOOR EXPOSURE AND GREATLY INCREASE THE LIFESPAN OF YOUR PLAY SET OR CUBBY, WE STRONGLY
RECOMMEND THAT YOU APPLY A PROTECTIVE COAT OF EXTERIOR GRADE LACQUER OR OIL TO ALL TIMBER PARTS UPON FIRST ASSEM-
BLY. IN ORDER TO BEST MAINTAIN THE TIMBER WE RECOMMEND REAPPLYING PROTECTIVE COATS EVERY 3-6 MONTHS.
FALURE TO CARE FOR YOUR TIMBER PARTS BY APPLYING PROTECTIVE LACQUER OR OIL WIIL GREATLY REDUCE THE LIFESPAN OF YOUR
PRODUCT. FOR INFORMATION ON THE MOST SUITABLE EXTERIOR LACQUER OR OIL, PLEASE CONSULT YOUR HARDWARE SPECIALIST.
Playset
MPS173

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bogong Multi Playset and is the answer not in the manual?

Questions and answers

Related Manuals for Swing Slide Climb Bogong Multi Playset

Summary of Contents for Swing Slide Climb Bogong Multi Playset

  • Page 1 MPS173 Distributed by Sandleford Holding Pyt Ltd Bogong Multi Playset WARNING: ONLY FOR DOMESTIC OUTDOOR USE. THIS PLAYSET SATISFIES ALL THE REQUIREMENTS OF THE AUSTRALIAN STANDARD AS/NZS ISO 8124 AND HAS BEEN CERTIFIED BY AN INDEPENDENT LABORATORY. TO GUARANTEE SAFETY, PLEASE GIVE SPECIAL ATTENTION TO THE ASSEMBLY, SAFETY, AND CARE INSTRUCTONS DETAILED IN THIS DOCUMENT.

  • Page 2: Tools Required For Assembly

    TOOLS REQUIRED FOR ASSEMBLY Tape Measure 610mm Level Angle Square Phillips Screw Driver Cordless Drill Or Electric Drill 10mm Drive Ratchet Or Electric Impact Gun Claw Hammer Or Rubber Mallet Pliers Or Vise Grips 11mm Deep Well Socket 14mm Deep Well Socket 19mm Deep Well Socket 3mm,6mm,14mm,And Drill Bits Phillips Head Screw Bits...
  • Page 3 **Important note: Wood has some natural defects such as knots, surface cracks, etc…We reject parts that are structurally defective. We use a high quality timber in our structures; however, you should inspect each part for splinters or rough spots and sand them smooth to prevent injury.** After familiarising yourself with all of the components, read all instructions thoroughly.Reading instructions after you have studied the parts will help you understand more clearly the installation process, and help to eliminate unnecessary mistakes.
  • Page 4 140001 140002 140003 2336.8*85.73*85.73mm 2336.8*85.73*85.73mm 2362.2*136.53*34.93mm 140004 140005 140006 2203.45*136.53*34.93mm 1143*85.73*34.93mm 1143*136.53*34.93mm 140007 140008 140009 1143*136.53*34.93mm 2203.45*85.73*34.93mm 2203.45*85.73*34.93mm 140010 140011 140012 2203.45*85.73*42.87mm 1765.3*85.73*34.93mm 1473.2*85.73*34.93mm 140013 140014 140015 1143*85.73*34.93mm 709.05*85.73*34.93mm 241.46*85.73*34.93mm 140016 140017 140018 1141*136.53*22.23mm 969.54*85.73*22.23mm 577.51*136.53*22.23mm...
  • Page 5 140019 140020 140021 1212.87*85.73*22.23mm 1114.43*85.73*22.23mm 914.4*85.73*22.23mm 140022 140023 140024 662.62*85.73*22.23mm 396.88*85.73*34.93mm 1104.9*85.73*34.93mm 140025 140026 140027 582.5*85.73*22.23mm 1473.2*85.73*34.93mm 1143*85.73*34.93mm 140028 140029 140030 1143*136.53*42mm 662.62*85.73*34.93mm 3500*136.53*85.73mm 140031 140032 140033 2475.16*85.73*85.73mm 1473*85.73*34.93mm 1627*85.73*34.93mm 140034 140035 140036 476*85.73*22.23mm 431.54*85.73*34.93mm 1627*85.73*34.93mm...
  • Page 6 140037 577.51*56*15.88mm...
  • Page 7 S96 ×249 S97 ×28 S92 ×6 Phillips Wood Screw Phillips Wood Screw Phillips Wood Screw #8 x 2 1/2 " #8 x 1 1/2" #8 x 2" S79 ×20 S81 ×20 S65 ×24 Phillips Pan Head Screw Phillips Pan Head Screw Phillips Pan Head Machine "...
  • Page 8 N09 ×4 N06 ×18 N13 ×14 Standard Nut Nylon N Acorn Nut 3/8" 3/8" 3/8" W18 ×14 ×2 BC01 Big Bolt Cup Bolt Cap ×8 N02 ×2 W15 ×2 S100 T-Nut w/Barrel Lock Washer 5/16" 5/16 " W08 ×2 B89 ×2 USS Flat Washer Hex Head Bolt 5/16"...
  • Page 9 ACCESSORIES ×1 ×1 ×2 PC-SL04 PC-TZ01C PC-SS02C ×4 ×4 ×1 PC-HD30 PC-AC19 PC-AC33 ×1 ×12 ×1 PC-HD19 PC-AC16 PC-AC25 ×6 ×2 ×10 PC-HD02 PC-HD28 PC-HD27 ×6 ×6 ×3 PC-HD09 PC-HD23 PC-HD61...
  • Page 10 B118 140001 × 4 ×12 ×6 140002 × 2 ×12 ×24 140004 × 2 ×6 ×12 140008 × 2 ×12 140009 × 2 3pcs 2offs 40001 B118 140009 3pcs 2offs 140001 2pcs 140001 40001 140002 140008 2pcs 140002 3pcs 2offs 3pcs 2offs 3pcs 2offs B118...
  • Page 11 ×16 140003 × 1 ×2 140005 × 1 ×16 140006 × 2 ×2 140007 × 1 140006 2pcs 4pcs 2offs 4pcs 2offs 140007 140005 2pcs 2pcs 140003 140003 4pcs 2offs 4pcs 2offs...
  • Page 12 ×12 140004 × 2 ×12 140004 2pcs 6pcs 2offs 6pcs 2offs...
  • Page 13 ×68 140016 × 14 140017 × 3 4pcs 17offs 140017 140017 140017...
  • Page 14 ×17 140010 × 1 ×2 ×2 17pcs 2pcs 2pcs 140010...
  • Page 15 ×2 ×6 140011 × 1 B118 140013 × 4 B119 ×2 ×4 140028 × 1 ×2 ×8 ×8 ×4 ×8 140028 140011 140013 2pcs 2offs 140013 2pcs 2pcs 140011 B118 2pcs 2pcs 3offs 2pcs B119 2pcs 2pcs 2pcs 3offs 2pcs 2pcs 2pcs 3offs 2pcs...
  • Page 16 140014 × 2 ×6 140015 × 4 ×6 140014 2pcs 6pcs 6pcs 140015 4pcs...
  • Page 17 140029 × 4 ×48 140022 × 8 140022 8pcs 4pcs 12offs 140029 140029 140029 140029...
  • Page 18 ×56 140022 × 14 140022 4pcs 14offs 7pcs 2offs...
  • Page 19 ×16 ×16 PC-HD27 ×8 PC-HD27 8pcs 2pcs 8offs 2pcs 8offs...
  • Page 20 140019 × 2 ×4 ×2 B118 140023 × 2 ×4 ×2 S96 ×8 ×2 PC-HD27 ×2 2pcs 2pcs B118 2pcs PC-HD27 2pcs 2offs 2pcs 140019 2pcs 2pcs 2offs 2pcs 2offs 140023 2pcs...
  • Page 21 140024 × 2 ×2 ×2 ×2 B118 140027 × 1 ×2 ×4 ×2 ×2 ×2 ×2 2pcs 2pcs 2pcs 2pcs 2pcs B118 2pcs 140027 2pcs 2pcs 140024 2pcs 2pcs 2pcs...
  • Page 22 140020 × 1 ×4 ×2 140021 × 1 ×4 ×2 140025 × 1 ×2 B109 ×2 B109 2pcs 2pcs 2offs 140020 2pcs 2offs 140021 140025 2pcs 2pcs 2pcs...
  • Page 23 140012 × 2 ×2 ×2 ×2 ×2 B111 ×2 ×2 2pcs 2pcs 2pcs 2pcs 2pcs 140012 B111 2pcs 2pcs...
  • Page 24 140030 × 1 ×12 ×14 B123 ×12 ×2 ×2 ×16 ×12 ×2 B118 PC-HD28 ×2 2pcs 2pcs B118 2pcs 2pcs PC-HD28 2pcs 2pcs 2pcs B123 2pcs 6offs 2pcs 6offs 2pcs 6offs 140030 2pcs 6offs 2pcs 6offs...
  • Page 25 140031 × 2 ×2 ×2 B118 140032 × 1 ×12 ×2 ×8 ×2 PC-HD19 ×1 2pcs 2pcs 2pcs 2pcs 2pcs B118 2pcs 140031 2pcs 4pcs 4pcs 2pcs 2pcs 140032 2pcs 2pcs...
  • Page 26 ×2 ×2 B123 ×2 ×1 ×3 ×2 B123 2pcs 2pcs 2pcs 2pcs 2pcs...
  • Page 27 ×4 B109 ×4 ×4 ×4 4pcs B109 4pcs 4pcs 4pcs...
  • Page 28 140018 × 12 ×24 ×24 ×24 PC-AC16 ×12 2pcs 12offs 2pcs 12offs 140018 2pcs 12offs...
  • Page 29 140026 x2 ×2 ×2 ×40 ×2 B102 ×2 PC-HD30 ×2 2pcs B102 2pcs 2pcs PC-HD30 2pcs 2pcs 4pcs 10offs 140026 2pcs...
  • Page 30 140037 × 1 ×2 140018 × 2 ×8 ×6 ×6 140037 2pcs 3pcs 2offs 3pcs 2offs 4pcs 2offs 140018 2pcs...
  • Page 31 140033 × 1 ×24 ×2 140036 × 1 B102 ×2 140034 × 1 ×2 140035 × 5 ×2 PC-HD30 ×2 B102 2pcs 2pcs PC-HD30 2pcs 2pcs 140034 2pcs 2offs 140036 140033 2pcs 4pcs 5offs 140035 5pcs...
  • Page 32 ×6 ×6 3pcs 2offs 3pcs 2offs...
  • Page 33 ×8 ×2 ×2 BC01 ×8 ×2 ×2 ×2 PC-AC19 ×4 PC-HD61 ×3 ×1 PC-AC33 BC01 2pcs 2pcs 4pcs 4offs 4pcs 4offs 2pcs PC-AC19 2pcs 4pcs 2pcs PC-AC33 PC-HD61 3pcs...
  • Page 34 ×3 W07 ×3 PC-SL04 ×1 3pcs 3pcs PC-SL04...
  • Page 35 ×8 S100 PC-AC25 ×1 S100 4pcs 2offs PC-AC25...
  • Page 36 PC-HD09 ×6 ×2 PC-SS02C ×1 PC-TZ01C PC-HD23 ×6 PC-HD09 6pcs PC-TZ01C PC-SS02C 2pcs PC-HD23 6pcs...
  • Page 37 Consumer information sheet for playground surfacing materials Injuries involving falls tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall.

  • Page 38: Assembly Advice

    ASSEMBLY ADVICE -Follow the instructions exactly. -This product must be assembled by adults. -Once assembly has been completed, keep the instructions in a safe place for future reference. This can be particularly handy for identification of parts if any after sales service is required. -Before commencing assembly, check that none of the parts are missing.
  • Page 39 All outdoor wooden products require routine inspection and regular maintenance. After installation, a follow-up inspec- tion should take place after one week and twice a month thereafter for the remaining life of your play products. Mainte- nance should be performed at any time it is deemed necessary. As a general rule, major maintenance (wood refinishing) should be performed at twelve month intervals from the date of installation.

This manual is also suitable for:

Mps173
