2 x 15 W CS4525 Digital Amplifier Reference Design
Features
Output Filters Optimized for 8 Ω Loads
Delivers 15 W/Ch into 8 Ω at 0.5 % THD+N
Single-Ended 2 V
RMS
Optical and Coaxial S/PDIF Inputs
Demonstrates EMI Compliant Design per FCC
Class B Part 15 and CISPR 22 Standards
Flexible I/O Headers Provided
–
PCM Input Signal Interface
–
Auxiliary Serial Port Signal Interface
–
Delay Port Signal Interface
–
PWM Logic Level Signal Interface
Optional CRD4412A Daughter-Card for
Subwoofer Channel
–
Implements a 2.1 Configuration
Demonstrates Recommended 4-Layer Layout
and Grounding Arrangements
+18 V Switching Mode Power Supply Included
Can be operated by On-Board Controls or with
®
Windows
Compatible Graphical User
Interface
Stereo Analog
Inputs
Optical
Receiver
CS8416
S/PIDF
Receiver
Coaxial Input
USB
I/O
http://www.cirrus.com
Stereo Analog Inputs
PCM
Input
Header
Copyright © Cirrus Logic, Inc. 2007
(All Rights Reserved)
Description
The CRD4525-Q1 demonstrates the CS4525 digital
PWM controller with integrated power stages. This ref-
erence design implements a two-channel amplifier that
delivers 15 W per full-bridge channel into 8 Ω loads us-
ing a single +18 V supply. The CRD4525-Q1 is
powered by an included 80 W switching mode power
supply.
Standard RCA phono jacks are provided to easily inter-
face analog input signals with the evaluation board.
Optical and coaxial inputs are provided to interface with
S/PDIF digital audio input signals.
The PWM audio power outputs are routed through an
inductor/capacitor 2
move high-frequency components from the output
signal, effectively converting it from digital to analog.
The Windows software provides a GUI to make config-
uration of the CRD4525-Q1 easy. The software
communicates through the PC's USB port to configure
the control port registers so that all features of the
CS4525 can be evaluated. Additionally, control over ba-
sic functions is possible via on-board hardware controls
without the need to attach the CRD4525-Q1 to a PC.
ORDERING INFORMATION
CRD4525-Q1
CS4525
CRD4412A Interface Header
Micro-controller
Tactile Controls
Included 18 V Power Supply
CRD4525-Q1
nd
order low-pass filter (LPF) to re-
CS4525 Reference Design
Output
Filter
Speaker
Connector
Output
Filter
Aux Port Header
Status LED's
Power
Jack
Ω
8
8
Ω
OCTOBER '07
DS804RD4
Advertisement
Table of Contents
Related Manuals for Cirrus Logic CS4525
Summary of Contents for Cirrus Logic CS4525

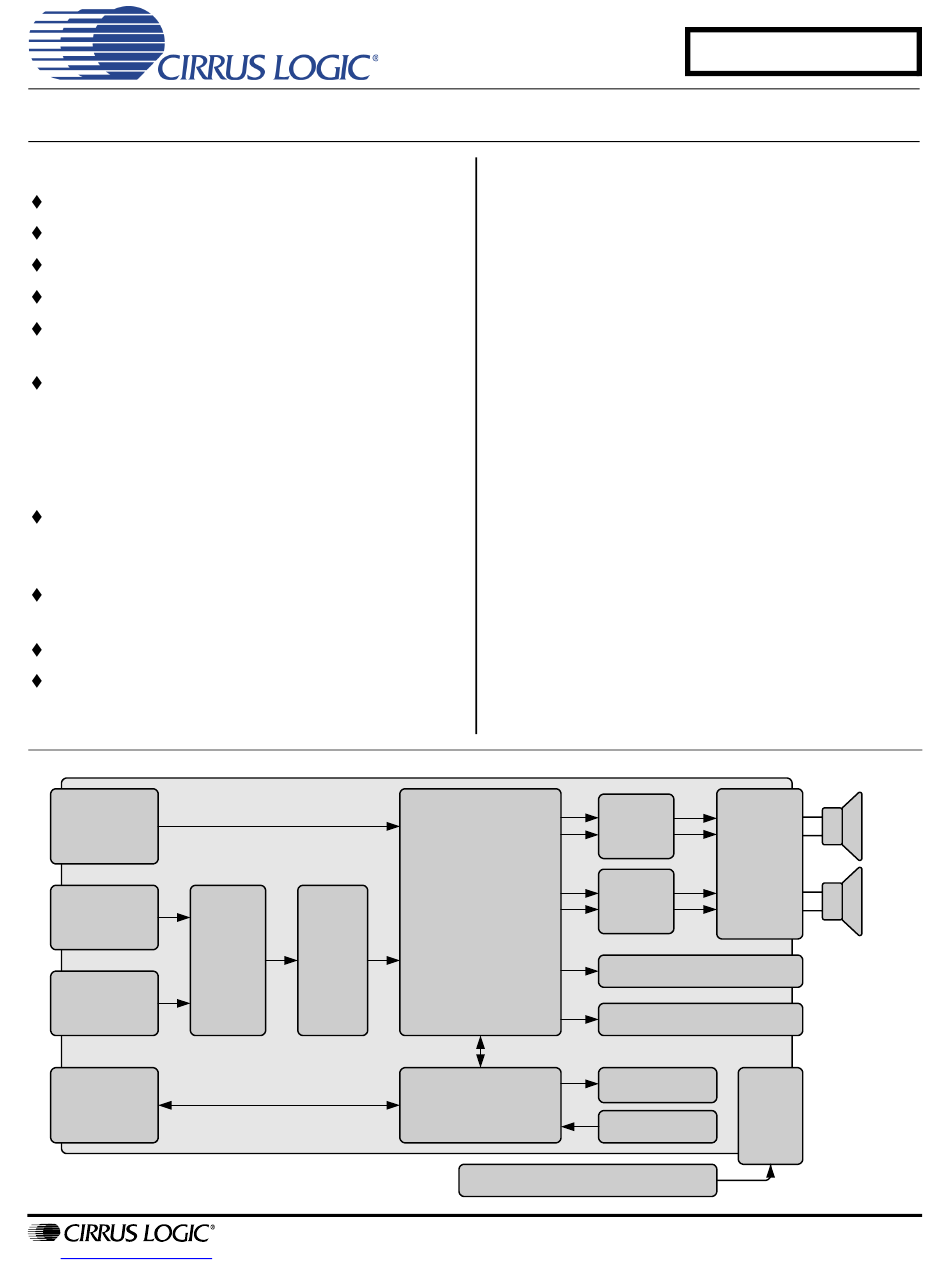

- Page 1 CRD4525-Q1 2 x 15 W CS4525 Digital Amplifier Reference Design Features Description Output Filters Optimized for 8 Ω Loads The CRD4525-Q1 demonstrates the CS4525 digital PWM controller with integrated power stages. This ref- Delivers 15 W/Ch into 8 Ω at 0.5 % THD+N erence design implements a two-channel amplifier that delivers 15 W per full-bridge channel into 8 Ω...
-
