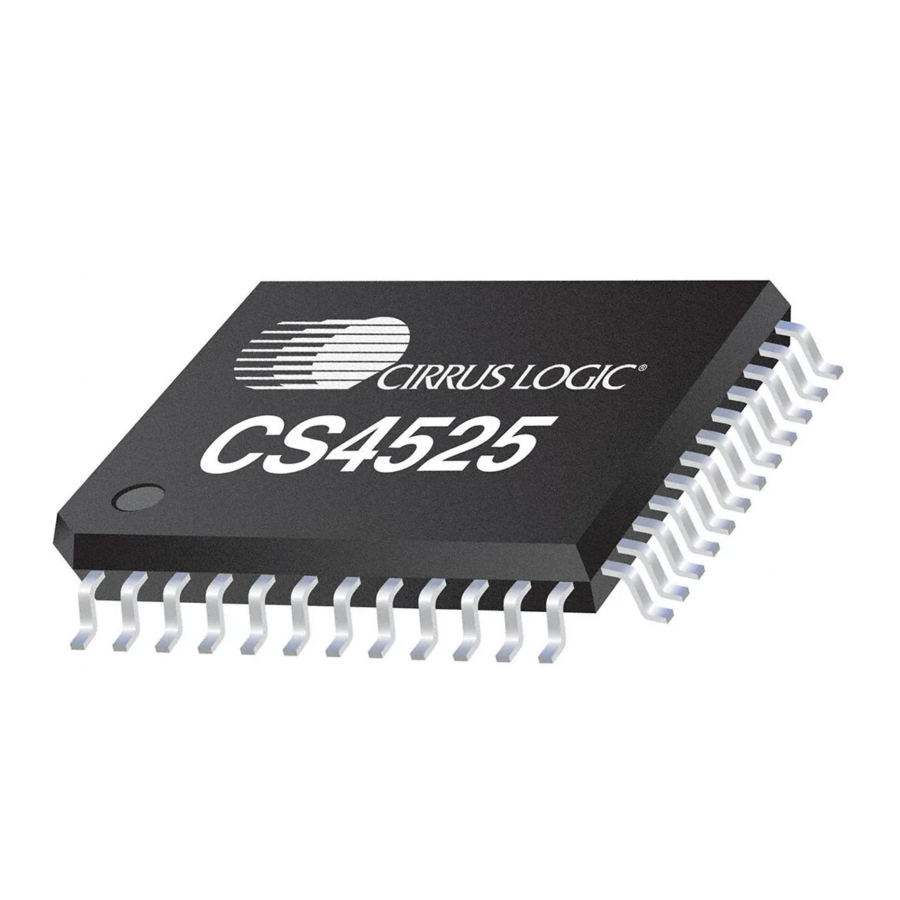

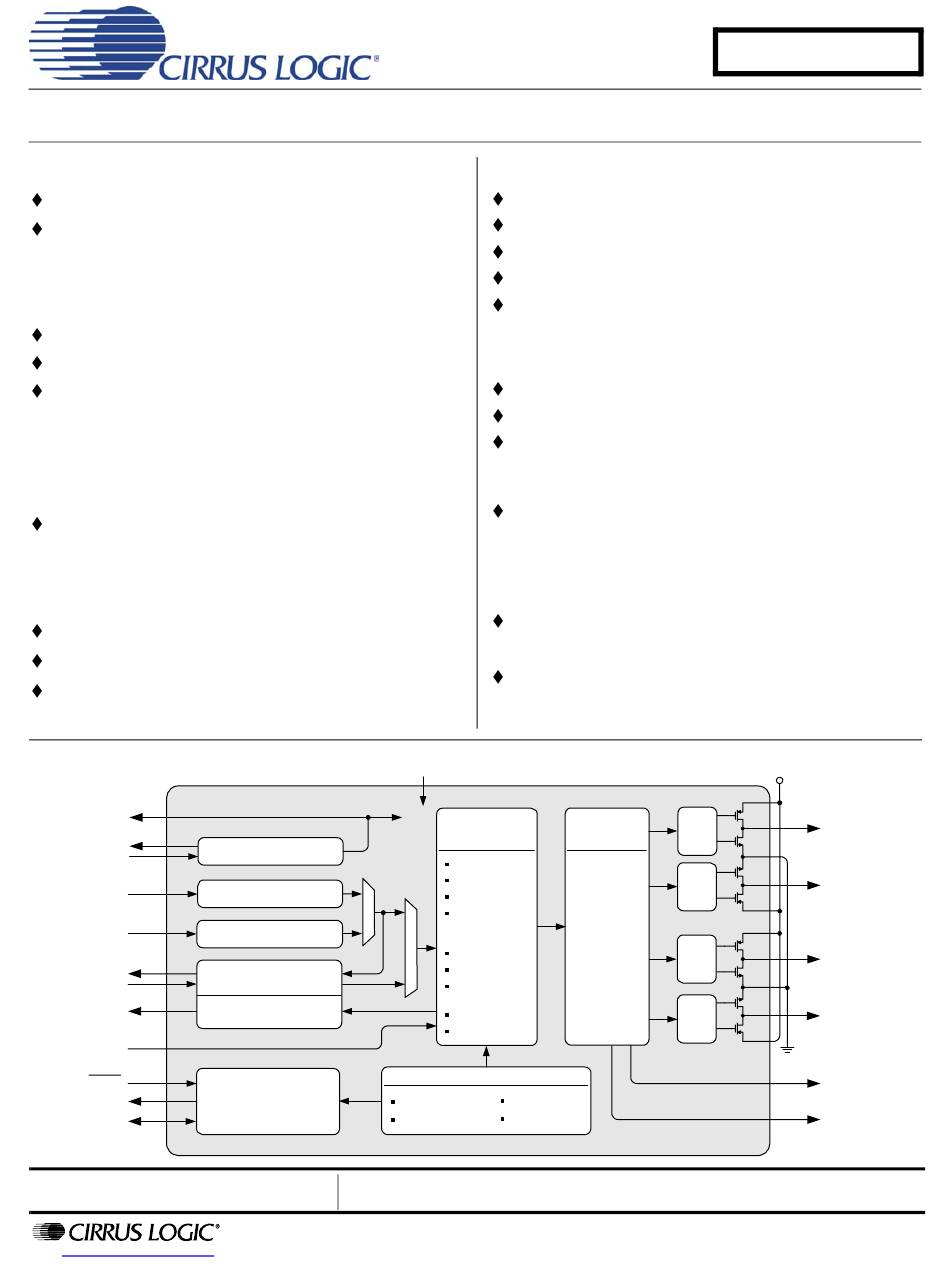

30 W Digital Audio Amplifier with Integrated ADC
Digital Amplifier Features
Fully Integrated Power MOSFETs
No Heatsink Required
–
Programmable Power Foldback on
Thermal Warning
–
High Efficiency
> 100 dB Dynamic Range
< 0.1% THD+N @ 1 W
Configurable Outputs (10% THD+N)
1 x 30 W into 4 Ω, Parallel Full-Bridge
–
2 x 15 W into 8 Ω, Full-Bridge
–
2 x 7 W into 4 Ω, Half-Bridge + 1 x 15 W
–
into 8 Ω, Full-Bridge
Built-In Protection with Error Reporting
–
Overcurrent/Undervoltage/Thermal
Overload Shutdown
–
Thermal Warning Reporting
®
PWM Popguard
Click-Free Start-Up
Programmable Channel Delay for System
Noise & Radiated Emissions Management
System Clock
Crystal Driver
Crystal Oscillator Driver
I/O
Stereo
Analog In
Serial Audio
Clocks & Data
Serial Audio
Data I/O
Serial Audio
Clocks & Data
HP Detect/Mute
Reset
Interrupt
I²C or Hardware
Configuration
Preliminary Product Information
http://www.cirrus.com
for Half-Bridge Mode
Multi-bit ΔΣ ADC
Serial Audio Input Port
Serial Audio
Delay Interface
Auxiliary Serial Port
Register /Hardware
Configuration
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright © Cirrus Logic, Inc. 2007
ADC Features
Stereo, 24-bit, 48 kHz Conversion
Multi-bit Architecture
95 dB Dynamic Range (A-wtd)
-86 dB THD+N
Supports 2 Vrms Input with Passive
Components
System Features
Asynchronous 2-Channel Digital Serial Port
32 kHz to 96 kHz Input Sample Rates
Operation with On-Chip Oscillator Driver or
Applied SYS_CLK at 18.432, 24.576 or
27.000 MHz
Integrated Sample Rate Converter (SRC)
–
Eliminates Clock-Jitter Effects
–
Input Sample Rate Independent Operation
–
Simplifies System Integration
Spread Spectrum PWM Modulation
–
Reduces EMI Radiated Energy
Low Quiescent Current
(Features continued on
2.5 V to 5 V
Audio
Processing
Parametric EQ
High-Pass
Bass/Treble
Adaptive
Loudness
Compensation
2-Ch Mixer
2.1 Bass Mgr
Sample Rate
Linkwitz-Riley
Crossover
De-Emphasis
Volume
Error Protection
Over Current
Thermal Warning
Under Voltage
Thermal Feedback
(All Rights Reserved)
CS4525
page
8 V to 18 V
Gate
PWM
Drive
Gate
Multi-bit ΔΣ
Drive
Modulator
with
Gate
Drive
Integrated
Converter
Gate
Drive
2)
VP
Amplifier
Out 1
Amplifier
Out 2
Amplifier
Out 3
Amplifier
Out 4
PGND
PWM Modulator
Output 1
PWM Modulator
Output 2
NOVEMBER '07
DS726PP2
