Panasonic EverVolt EVAC-105-4 Installation & Service Manual

Or ac and dc coupled evervolt systems
Hide thumbs Also See for EverVolt EVAC-105-4:
Table of Contents

Advertisement

Quick Links

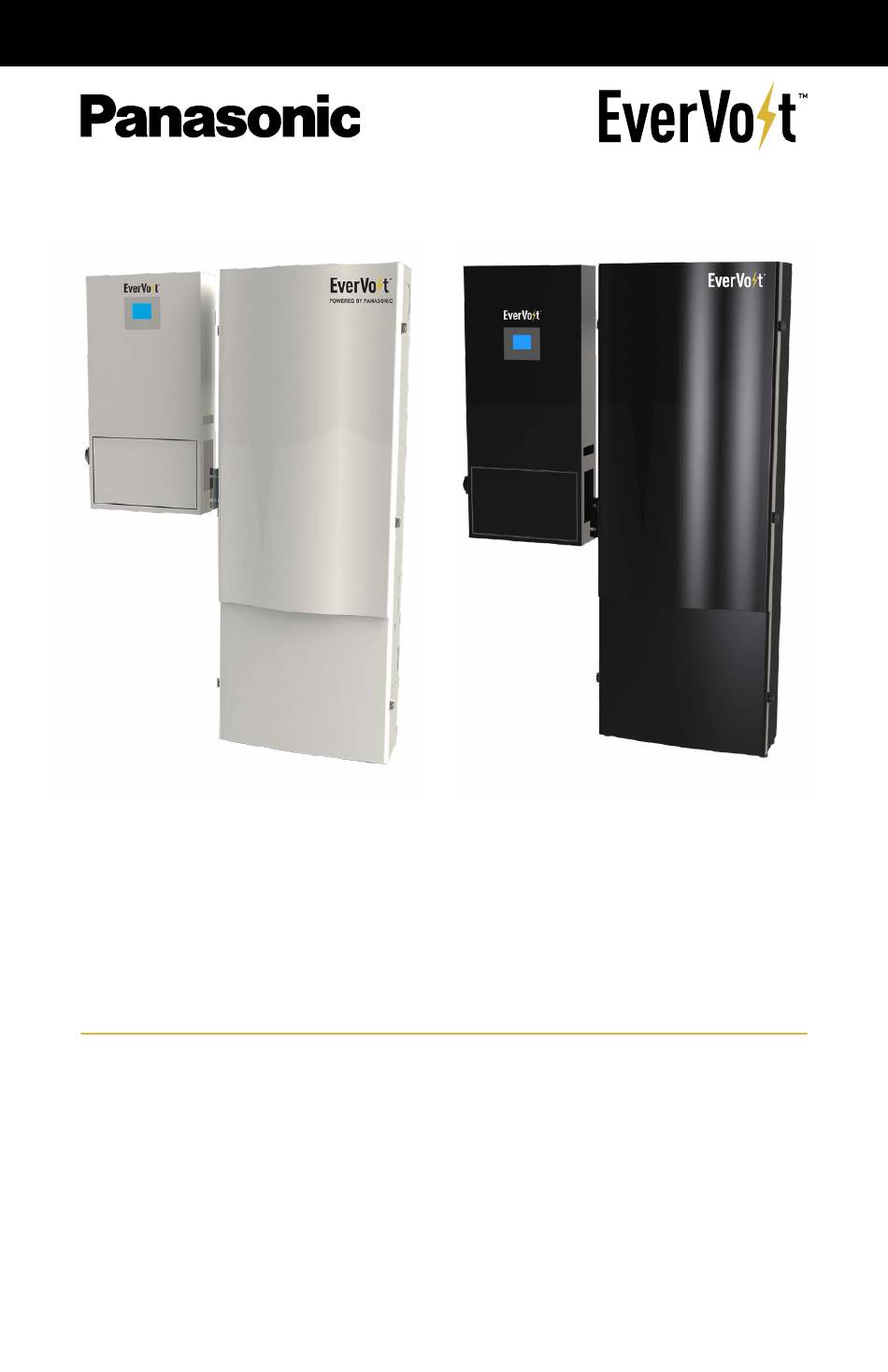

Installation & Service Manual
FOR AC AND DC COUPLED EVERVOLT
SYSTEMS
™
V.01012021
