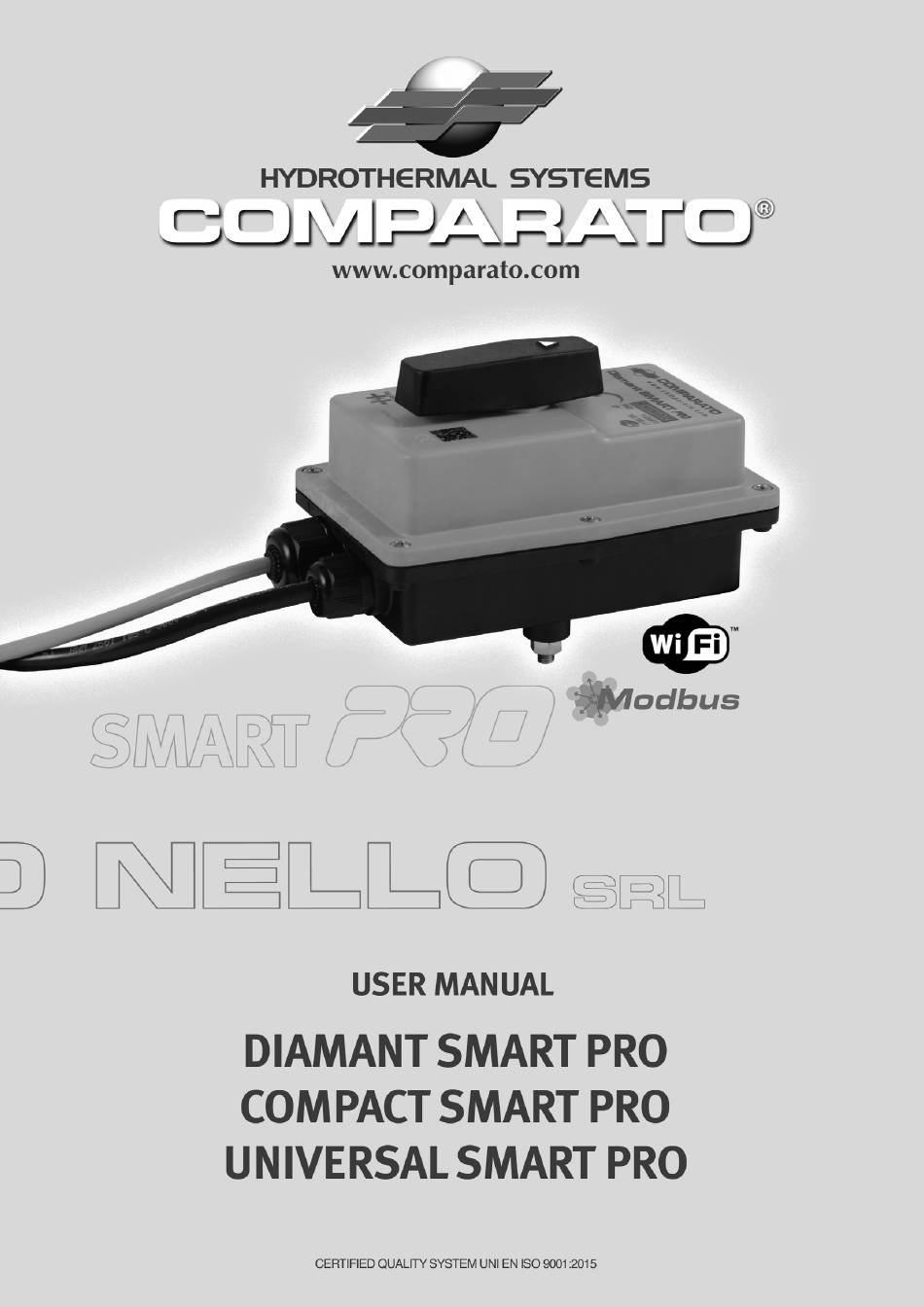

- Page 1 VER. 3.21...
-
Page 2: Table Of Contents
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO TABLE OF CONTENTS Notices ___________________________________________________________________________ Technical features ________________________________________________________________________ Installation ______________________________________________________________________________________________ Connection to the ball valve _______________________________________________________________________________________________ Electrical connections __________________________________________________________________________ Reference positions __________________________________________________________________________ Emergency manual opening __________________________________________________________________________ Auxiliary microswitch signals __________________________________________________________________________... -
Page 3: Installation
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO Diamant Compact Universal SMART PRO SMART PRO SMART PRO Frequency 2,4 GHz Standard 802.11 b/g/n - 802.11 n (2,4 GHz), up to 150 Mbps Signal reception distance 160 meters with visible device... -
Page 4: Connection To The Ball Valve
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO CONNECTION TO THE BALL VALVE DIAMANT SMART PRO DIAMANT SMART PRO with ISO 5211 connection with COMPARATO connection COMPACT SMART PRO • UNIVERSAL SMART PRO ONLY IF NECESSARY ELECTRICAL CONNECTIONS CAUTION: ELECTRICAL CONNECTIONS NEED TO BE DONE INSIDE A PROPER BRANCH BOX (not included). - Page 5 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO APPLICATION EXAMPLES The actuator has a double half-wave power supply stage, therefore it cannot be used with other devices with single half-wave power supply stage sharing the same power CAUTION: supply and the same command signal reference.
-
Page 6: Reference Positions
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO REFERENCE POSITIONS The manual override lever indicates the angular position of the actuator. ROTATION ANGLE 90° CLOSING (0°) INTERMEDIATE (45°) OPENING (90°) ROTATION ANGLE 180° CLOSING (0°) INTERMEDIATE (90°) OPENING (180°) -
Page 7: Auxiliary Microswitch Signals
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO CAUTION: If the actuator is electrically powered, once it’s manually opened/closed it keeps its position until the command signal changes. If the actuator is equipped with Fail Safe system and it’s manually opened/closed with no electrical power, using the release button puts the system in the programmed safety CAUTION: position until there is enough energy inside the supercapacitor. - Page 8 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO WIRING DIAGRAM 3-POINT CONTROL CLOSING actuator (0°) OPENING actuator (90° / 180°) TA = SWITCH command You can connect several SMART PRO actuators in parallel under the same control device with both a 2-point control and a 3-point control.
- Page 9 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO WIRING DIAGRAM POWER SUPPLY PROPORTIONAL COMMAND • PWM COMMAND Pulse width modulating signal in compliance with DIN IEC 60469-1. The actuator is placed proportionally to the received signal: PWM1...
- Page 10 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO • OPERATING TIME VARIATION – “OPERATING TIME” It is possible to select different operating times referring to the 90° rotation. The following table shows the possible configurations according to the model and power supply type:...
- Page 11 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO • ANGULAR POSITIONING CORRECTION This function allows angular variations on the complete closed, complete open and intermediate positions. It is therefore possible to let a minimum flow pass in a 2-way valve when the control system sends a complete closure command.
-
Page 12: Fail Safe (Optional)
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO • INTERMEDIATE POSITION CORRECTION – “MID[-10°…+10°]” ROTATION ANGLE 90° ROTATION ANGLE 180° Mid[-10°…+10°] = -10 Mid[-10°…+10°] = 10 Mid[-10°…+10°] = -10 Mid[-10°…+10°] = 10 • HEATING RESISTANCE Inside the actuator there is a heating resistance which is electronically managed by means of a temperature reading: you can activate (and set the setpoint temperature between 5°C and 30°C) or deactivate it. -
Page 13: Motor Anti-Overheating (Optional Upon Request)
= positioning error. The actuator has not reached the position requested. See the OPERATING ANOMALIES chapter TEMP = the temperature reached by the electric motor is too high. Motor anti-overheating feature available upon request. For further information please contact Comparato's Technical Office. FAIL SAFE ACTION NUMBER - “Fail safe n°”... -
Page 14: Wi-Fi Communication (Optional)
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO WI-FI COMMUNICATION (OPTIONAL) If the actuator is equipped with a Wi-Fi communication module, you can connect to the device in order to adjust all the operation settings, view its status and run a diagnostic. - Page 15 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO CONFIGURATION AND MONITORING SCREEN Control parameter setting. For further details, please see the OPERATION chapter Monitoring parameter display For further details, please see the MONITORING chapter READ key = reads all the parameters and returns the updated values.
-
Page 16: Serial Rs458 Communication - Modbus (Optional)
DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO SERIAL RS458 COMMUNICATION - MODBUS (OPTIONAL) RS485 COMMUNICATION Protocol Modbus – RTU Standard EIA-RS 485 half duplex Baud rate 19200 Baud/s N° bit Stop bit Parity None DATA PACKAGE DESCRIPTION... - Page 17 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO ADDRESS TABLE COMPARA TO NELLO SRL...
-
Page 18: Operating Anomalies
During the warranty period, COMPARATO will repair or replace, free of charge, any product or component, provided it turns out to have a manufacturing defect. Any repair or replacement of the component or of the product itself does not extend the warranty period. COMPARATO reserves the right to replace the Product with an identical one; if the product is out of production, it will be replaced with one with identical specifications, provided that, according to the unquestionable opinion of COMPARATO NELLO S.r.l., the repair is not economically excusable. - Page 19 DIAMANT SMART PRO / COMPACT SMART PRO / UNIVERSAL SMART PRO COMPARA TO NELLO SRL...
