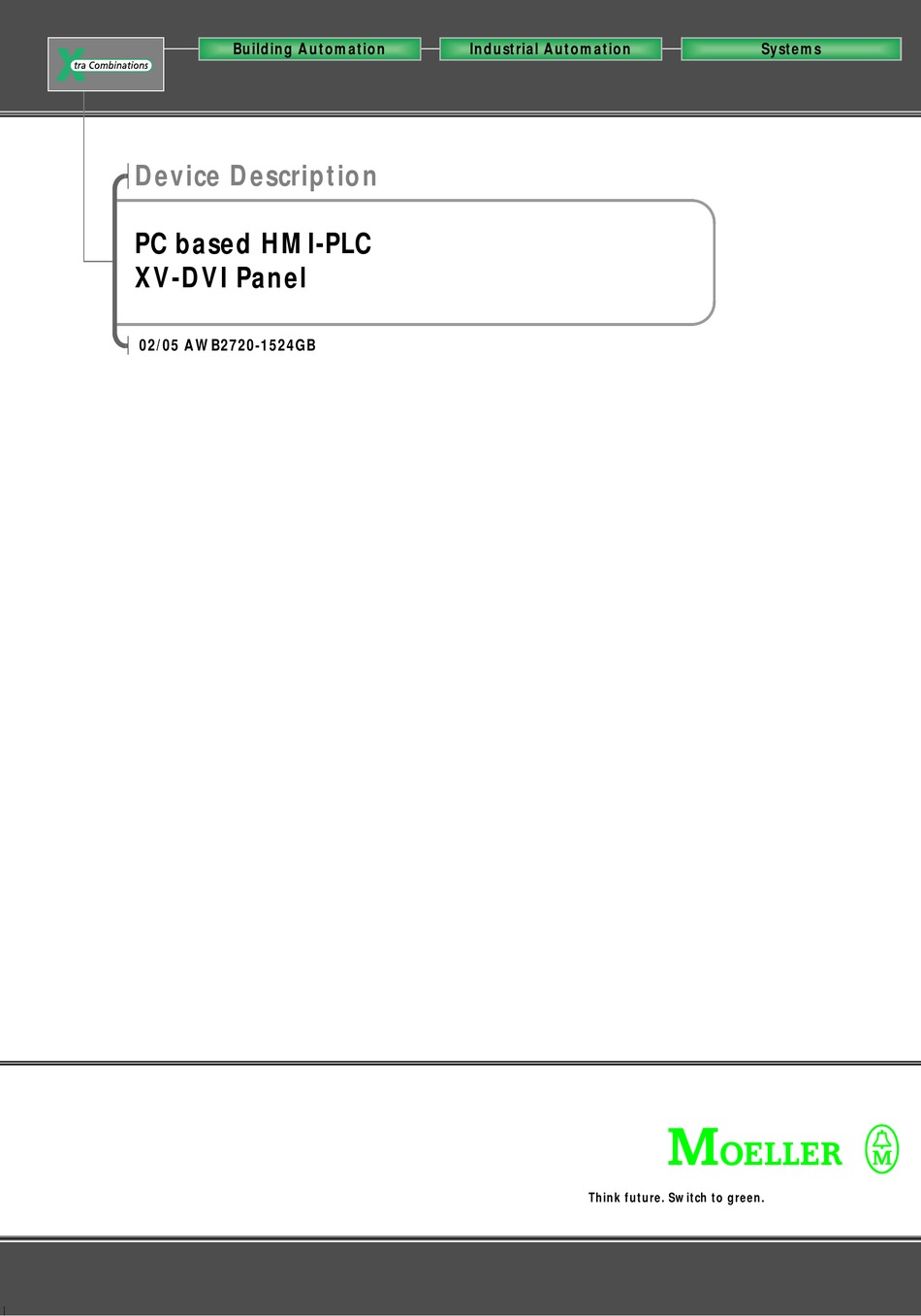

  • Page 1 Building Automation Industrial Automation Systems Device Description PC based HMI-PLC XV-DVI Panel 02/05 AWB2720-1524GB Think future. Switch to green.
  • Page 2 Moeller GmbH, Bonn. Subject to alteration without notice. Moeller GmbH does not accept any liability for damages arising from the use of any incorrect or incomplete information contained in this documentation or any information missing therefrom.
  • Page 3 Warning! Dangerous electrical voltage! Before commencing the installation • Disconnect the power supply of the device. • Ensure a reliable electrical isolation of the low voltage for the 24 volt supply. Only use power supply units complying with • Ensure that devices cannot be accidentally restarted. IEC 60364-4-41 (VDE 0100 Part 410) or HD 384.4.41 S2.
  • Page 5 No liability is accepted for claims for damages arising from a failure or functional defect in the device. All data specified in this document does not represent guaranteed specifications in the legal sense. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 6 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 7: Table Of Contents

    Basic touch-screen function..........33 Power up function test ............33 Cleaning and maintenance of the touch-screen ....34 9 Display, Backlight, Contrast ........35 Contrast ................35 Backlight ................35 10 Diagnostics ..............35 11 Maintenance and repair ..........37 © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 8 DVI-Panel Touch-Panels for Industrial Automation Device Description Contents 12 Technical Data ............39 13 Disposal ..............41 14 Conformity and Standards........42 15 Revision history............43 16 Alphabetical index............. 45 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 9: Explanation Of Symbols

    Information pictograms indicate the following: Important information about the product or the relevant section of the document, requiring the particular attention of the reader. The “Information” pictogram has the following meaning: Indicates important and instructional information. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 10 DVI-Panel Touch-Panels for Industrial Automation Device Description Explanation of symbols 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 11: Introduction

    This device description is a reference for the technical data, installation, terminals, commissioning, operation, and maintenance of all DVI-Panel versions. The designation and function of the connections and signals are the same for all versions. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 12 DVI-Panel Touch-Panels for Industrial Automation Device Description Introduction 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 13: Device Versions

    Same as Order No: 274065 but with infrared touch- screen XV-DVI-GTI-12-000 Order No: 274069 Same as Order No: 274066 but with infrared touch- screen XV-DVI-GTI-15-000 Order No: 274070 Same as Order No: 274067 but with infrared touch- screen © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 14: Accessories

    PC-Slot cover plate with connectors for the touch- screen and power supply of the DVI-Panel RS232 cable XT-232-PT-01 . 283470 Order No RS232 cable (connection of PC-COM-Interface and the PC-Slot cover plate touch-screen interface) for use with PC-Slot-cover plate 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 15: Features

    12.1“ 92 x 70 15.0“ 115 x 87 Resistive touch- Resolution 12 Bit (0-4096) screen 6,4“ to 15“ Interfaces Type Single Channel DVI-D Power supply Type 24VDC Power supply/ Type 12VDC Touch-Interface RS232 © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 16 DVI-Panel Touch-Panels for Industrial Automation Device Description Features 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 17: Commissioning

    • The current consumptionmust be taken into account when implementing the power supply. • The functional earth is not compulsory for operation. But it can help to avoid disturbance caused by potential differences. Infrared-Touch devices with revision index 0001 (see type label) © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 18: Connecting The Power Supply / Touch

    Pin 9 is used for 12VDC power supply of the DVI-Panel . To ensure disturbance-free operation, it is strongly recommended to use the Touch/PowerSupply cables from the original accessories. (see accessories) The 12V power supply of the DVI-Panel is NOT reverse polarity protected! 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 19: Dvi-Interface

    Normaly the default setting (position '0') is o.k. and the picture on the DVI- Panel is stable. If you encounter flickering pixels with short cables, please switch to a different position towards 'F' 0 is for long cables F is for short cables Default is 0 © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 20: Functional Earth

    The device is protected with a fuse internally. It is not possible to change the fuse. In case of an error the device must be repaired by the manufacturer. 5.8 D -LED IAGNOSTIC 12V 3.3V The DVI-Panel has three Diagnostic-LEDs, which displays the valid power supply status. 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 21: Preparing The Shield Connections

    Connection work should be carried out with special care in order to ensure trouble-free operation. The EMC values stated in the technical data can only be guaranteed if the cables are prepared according to the following specifications. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 22: Connection To Xcc-601

    For distances longer 5m the voltage drop may be to much and the power has to be supplied at the 24V connector. This depends on the power consumtion of the DVI-Panel. 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 23: Connection To A Standard-Pc

    For distances longer 5m the voltage drop may be to much and the power has to be supplied at the 24V connector. This depends on the power consumtion of the DVI-Panel. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 24: Software

    (e.g. buttons) big enough, so that they can be touched easily. Also Windows-operation can be done easier if big or extra big fonts are used (see system settings display Setup fonts). 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 25: Operation

    BIOS selftests will be performed. 6.2 B ACKLIGHT ETTING The backlight has two settings low (50%) and high (100%) which can be selected via the touch-driver or within the EPAM visualization software. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 26 DVI-Panel Touch-Panels for Industrial Automation Device Description Operation 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 27: Mounting Instructions

    Avoid tightening torques of greater than 0.5 Nm as this could otherwise damage the device. The thickness of the front panel must not exceed 5 mm. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 28: Mounting In The Front Panel - Atex

    7.2) 7.4 F 6,4“ RONT PANEL CUTOUT The device requires a mounting cutout of WxH: 198 +0/-1 mm x 142 +0/-1 mm The thickness of the front panel must not exceed 5 mm. 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 29: Front Panel Cutout 10,4

    The device requires a mounting cutout of WxH: 329 +0/-1 mm x 238 +0/-1 mm The thickness of the front panel must not exceed 5 mm. Recommended Mounting versions for Laser cutout (device centering) © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 30: Front Panel Cutout 12,1

    The device requires a mounting cutout of WxH: 344 +0/-1 mm x 262 +0/-1 mm The thickness of the front panel must not exceed 5 mm. Recommended Mounting versions for Laser cutout (device centering) 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 31: Front Panel Cutout 15

    The device requires a mounting cutout of WxH: 410 +0/-1 mm x 315 +0/-1 mm The thickness of the front panel must not exceed 5 Recommended Mounting versions for Laser cutout (device centering) © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 32: Mechanical Dimensions Dvi-Panel 6.4

    DVI-Panel Touch-Panels for Industrial Automation Device Description Mounting instructions 7.8 M DVI-P 6.4“ ECHANICAL DIMENSIONS ANEL 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 33: Mechanical Dimensions Dvi-Panel 10.4

    Touch-Panels for Industrial Automation DVI-Panel Device Description Mounting instructions 7.9 M DVI-P 10.4“ ECHANICAL DIMENSIONS ANEL © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 34: Mechanical Dimensions Dvi-Panel 12.1

    DVI-Panel Touch-Panels for Industrial Automation Device Description Mounting instructions 7.10 M DVI-P 12.1“ ECHANICAL DIMENSIONS ANEL 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 35: Mechanical Dimensions Dvi-Panel 15.0

    Touch-Panels for Industrial Automation DVI-Panel Device Description Mounting instructions 7.11 M DVI-P 15.0“ ECHANICAL DIMENSIONS ANEL © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 36 DVI-Panel Touch-Panels for Industrial Automation Device Description Mounting instructions 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 37: Notes On The Touch-Screen

    A power up function test will be performed in combination with XCC-devices with EPAM-Visualization-Software. (Details see XVC/XCC manual and EPAM-manual) Devices with resistive touch-screen Because of function principle it is not possible to do a function test on devices with resistive touch-screen. © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 38: Cleaning And Maintenance Of The Touch-Screen

    Cleaning should only be carried out with the device switched off! This will ensure that any touching of the screen will not accidentally initiate functions. Please use a soft cloth to ensure that the surface is not scratched or scoured. Do not use solvents. 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 39: Display, Backlight, Contrast

    - check Display settings of the PCs (BIOS-Setup) Screen dark or light Backlight/contrast incorrectly set Touch-screen not - Hardware faulty (no acoustic signal after power on) - Too many IR channels interrupted Clean touch-screen (infrared touch-screen functioning only) © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 40 DVI-Panel Touch-Panels for Industrial Automation Device Description Display, Backlight, Contrast 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 41: Maintenance And Repair

    Section 8.3). Repairs Repairs to the DVI-Panels should only be carried out by the manufacturer or Moeller GmbH repair centers. In this case, please contact your local XSystem dealer or the Technical Support at Moeller GmbH. (manufacturer address of DVI-Panel...
  • Page 42 DVI-Panel Touch-Panels for Industrial Automation Device Description Maintenance and repair 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 43: Technical Data

    1.4A / 12VDC or 1.1A / 24V Power consumption 6.4“ (typical) 10.4“ 12.1“ 15.0“ Fuse internally 12V : self repairing fuse 2.5A 24V : fuse 2.5A slow blow protection 6.4“ : fuse 1A superfast © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 44 Touch-Panels for Industrial Automation Device Description Technical Data Technical Data (Continued) Distance Distance to PC 6.4“ Max. 10 m 10.4“ Max. 30 m 12.1“ Max. 25 m 15.0“ Max. 20 m Noise <70db emission 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 45: Disposal

    Galvanized sheet steel Rear: Aluminium coated Front frame: Aluminium, anodised Membrane: Polyester PETP Printed-circuit board: 1. quality Front: IR touch-screen: Safety glass, Plastic frame Makrolon 2805 (Manufacturer: Bayer AG) Resistive touch-screen: Polyester/glass laminate © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 46: Conformity And Standards

    22. (see section Section 7.2 and 7.3) II 3D T80°C X IP65 0°C>T >50°C All DVI-Panels are compliant to: UL 508 - Industrial Control Equipment. Ind. Cont. Eq. 19CC Manufacturer Moeller GmbH Manufacturer address: Hein-Moeller-Str. 7-11 D-53115 Bonn Germany 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 47: Revision History

    P.10 new accessory 20m cables P.15 Rotary switch P. 29-31 new mechanical drawings P.40 Distance P.42 UL508 compliance added Moeller GmbH Hein-Moeller-Str. 7-11 D-53115 Bonn Deutschland +49(0) 228/602-0 +49(0) 228/602-2433 Email automation@moeller.net Internet www.moeller.net © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 48 DVI-Panel Touch-Panels for Industrial Automation Device Description Revision history 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
  • Page 49: Alphabetical Index

    Front panel cutout 10,4“........25 Type designation .............9 Front panel cutout 12,1“........26 Front panel cutout 15“........... 27 Front panel cutout 6,4“.......... 24 Warnings ..............5 Functional earth............. 16 ..............39 Weight Fuse ............... 16 ............39 Fuse protection © 2005 by Moeller GmbH 02/05 AWB2720-1524GB...
  • Page 50 DVI-Panel Touch-Panels for Industrial Automation Device Description Alphabetical index 02/05 AWB2720-1524GB © 2005 by Moeller GmbH...
