Veethree M2 Manual

With veethree engine monitor software
Hide thumbs Also See for M2:
Table of Contents

Advertisement

Quick Links

Download this manual
VEETHREE M2
With
Veethree Engine Monitor
Software

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Related Manuals for Veethree M2

Summary of Contents for Veethree M2

  • Page 1 VEETHREE M2 With Veethree Engine Monitor Software...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1... Introduction..........2... The Veethree M2 Platform......3... Veethree M2 Connection Data..... 4... Typical J1939 Wiring Topology..... 5... Veethree M2 Installation......6... Maintenance and Troubleshooting....7... Home Screen..........8... Alarms Screen..........9... Main Menu........... 10..Glossary............11..

  • Page 3: Introduction

    INTRODUCTION Thank you for choosing the Veethree M2 monochrome display. These pages provide a brief introduction to the Veethree M2 display, but more importantly the recommended installation instructions. This display comes installed with Veethree Engine Monitor (VEM) software which dis- plays J1939-compatible engine/transmission data.

  • Page 4: The Veethree M2 Platform

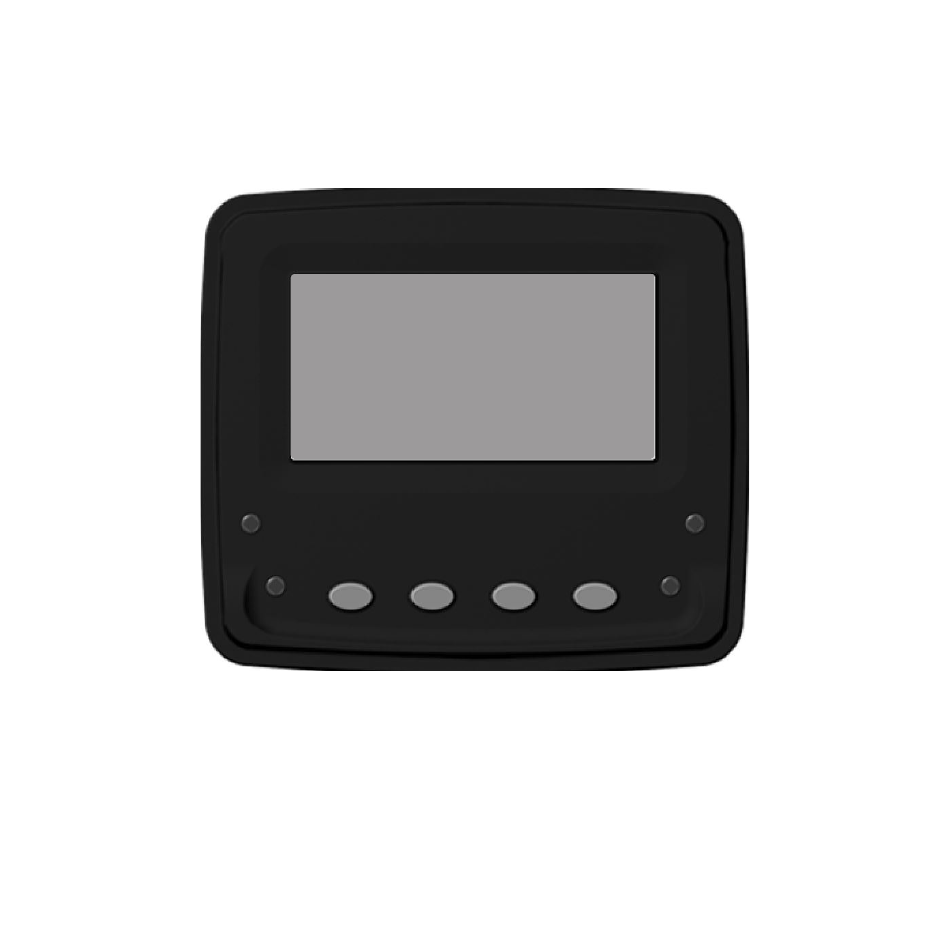

    THE VEETHREE M2 PLATFORM The Veethree M2 display is a compact platform that is large enough to support monitoring and diagnostic data available on the latest generation of electronically controlled systems. The display offers 4 soft keys, 128 x 64 pixel display area, and 4 warning lights to signify engine fault/failure.

  • Page 5: Veethree M2 Connection Data

    VEETHREE M2 CONNECTION DATA The Veethree M2 display interfaces to data via the Deutsch DT04-6P con- nector on the rear of the display - wired as shown (see pin out diagram). Ground and power (10-32VDC) Power (-) Supply should be protected by...

  • Page 6: Typical J1939 Wiring Topology

    120 ohm resistors at each end. In addition, all stubs should not exceed 1m in length, and a maximum of 30 nodes. Termination Resistor (120 ohm) Backbone Veethree M2 (Max length 40m) Display Stub (Max length 1m) Engine and/or...

  • Page 7: Veethree M2 Installation

    Cut a 2 inch (51 mm) hole. Screw the studs into rear case. • Place the Veethree M2 display in position, use the mounting bracket and • thumb nuts to secure the unit. The thumb nuts should only be hand tight.
  • Page 8 Thumb Nuts Bracket Panel Studs Veethree M2 display Unit mounting method...

  • Page 9: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING No regular maintenance is required, except for cleaning the Veethree M2 display lens as required, using a soft, damp cloth. Do not use abrasive materials or solvents. If you are experiencing operating problems with Veethree M2 display please refer to the following diagnostics: Ensure connections to unit are correct.

  • Page 10: Home Screen

    HOME SCREEN There are 3 main user screens accessed via the first three keys. The keys have icons to represent the screen view types, as follows. Key 1 is a quad gauge view, pressing Key 1 repeatedly will cycle through available quad screens (4 screen max).
  • Page 11 The information that is displayed on the quad, dual, and single screens can be selected and arranged for better viewing by the operator. Once in the de- sired gauge view (quad, dual, single), press and hold the Key for that view. Quad Screen Dual Screen Single Screen...

  • Page 12: Alarms Screen

    ALARM SCREEN When an alarm condition exists, the information is sent from the engine and/ or transmission, the information will be displayed via alarm icons, LED’s, and internal alarm buzzer (and external if connected). Check Engine - Alarm will sound along with Orange LED’s. Stop Engine - Alarm will sound along with Red LED’s.

  • Page 13: Main Menu

    MAIN MENU To access the Main Menu of the Veethree M2 display, press and hold Key 4 when at the home screen. Once in the menu use Key 1 and 2 to navigate selections, Key 3 to enter selection, and Key 4 to go back.

  • Page 14: Glossary

    GLOSSARY Controller Area Network (also referred to as CAN bus); serial communication protocol for automotive use Veethree M2 Intelligent CAN-compatible LCD display module Veethree Engine Monitor Liquid Crystal Display Soft keys Push-button keys whose function changes according to use...

  • Page 15: Important Safety Information

    • Veethree operates a policy of continuous improvement. Veethree reserves the right to alter and improve the Veethree M2 displays and software with- out prior notice. CE EMC Directive 2004/108/EC This product has been designed to be compliant with this directive.
  • Page 16 Veethree Electronics and Marine LLC 2050 47th Terrace East, Bradenton, Florida 34203 USA www.veethree.com 1-941-536-7775 Fax: 1-941-755-1222 VEETHREE M2 Display With Veethree Engine Monitor Software 70617 Rev. 3...
