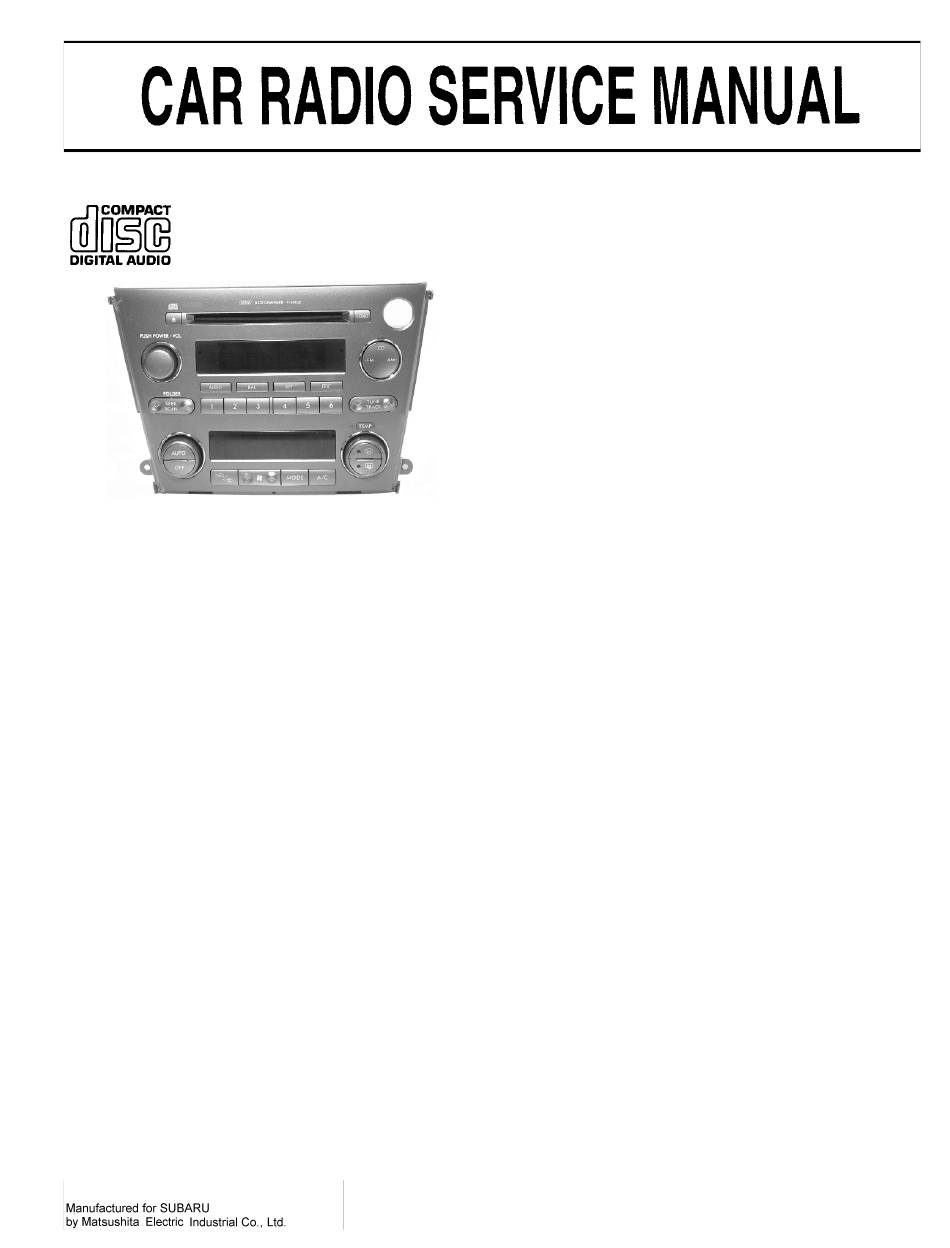

Matsushita Electric CQ-EF1561L Service Manual

Specifications*
General
Power Supply
Current Consumption
Maximum Output
Output Impedance
AM Radio
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
FM Stereo Radio
Frequency Range
Usable Sensitivity
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 2.5A (Vol. Max.)
More than 18W
4Ω
530 - 1,710kHz
26dB/µV
More than 45dB
87.7 - 107.9MHz
6dB/µV (S/N 30dB)
CUSTOM MADE FOR
SUBARU

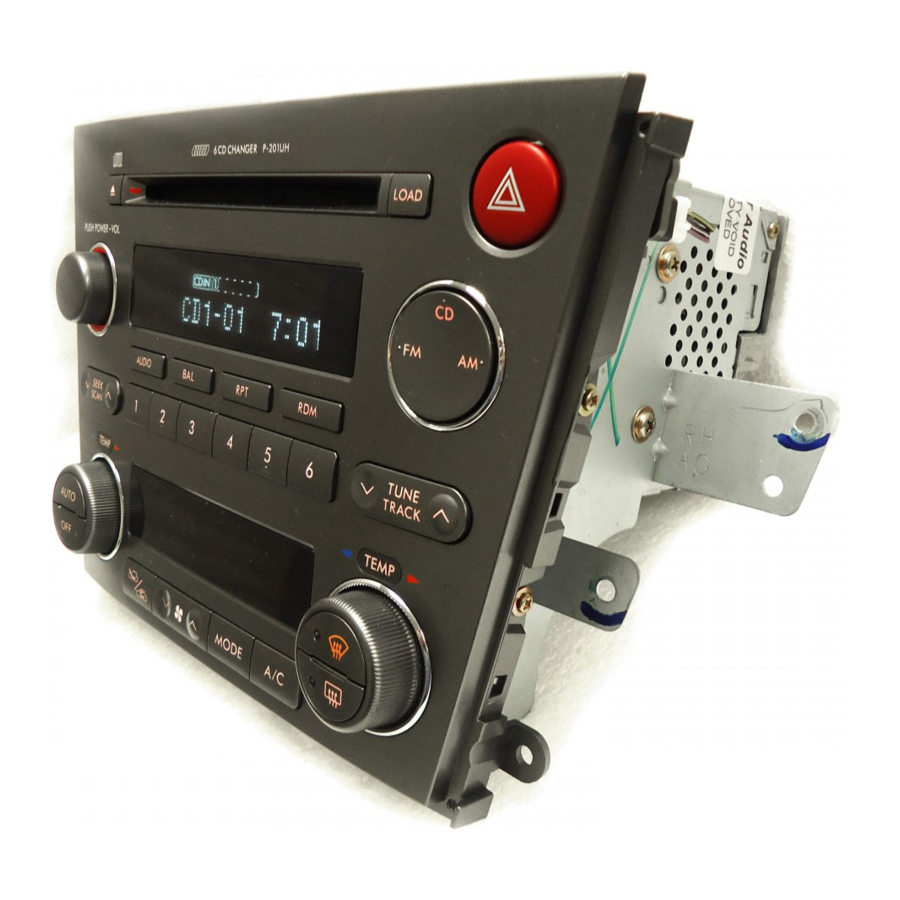

CQ-EF1561L
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer
SUBARU PART No. : 86201AG65A
ID CODE : P-203UH
VEHICLE : LEGACY
DESTINATION : North America
PRODUCED AFTER : Mar., 2005
NOTE: RDM button is replaced with TEXT button for
CQ-EF1560L. The CD deck used for this model
is YGFD13196 while for CQ-EF1560L, it is
YGFD13301.
CD Changer (YGFD13196)
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
ORDER No. 6100
More than 68dB (IHF-A)
Less than 0.4%
65dB (IHF-A)
178×100×175mm
3060g
I0
