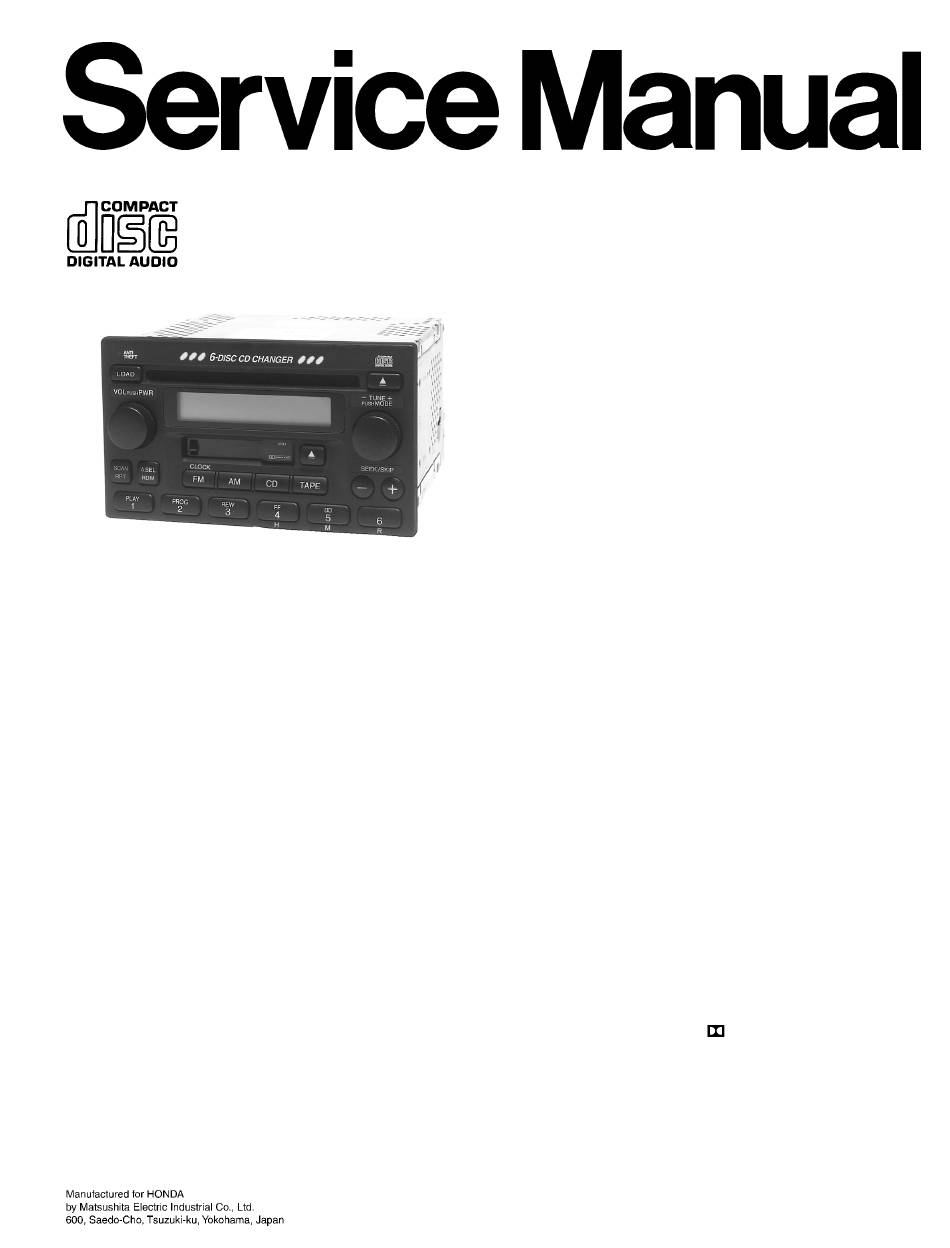

Matsushita Electric HONDA CQ-EH0380A Service Manual

Specification*
General
Power Supply
Current Consumption
Power Output
Output Impedance
AM Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
Cassette Player (YGFD04728)
Reproduction System
Tape Speed
Wow and Flutter
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 3.0A (at 0.5W)
30W×4
4Ω
531 - 1,602kHz
24dB/µV (S/N 20dB)
87.5 - 108.0MHz
7dB/µV (S/N 30dB)
4-Track, 2-Program Stereo
4.76cm/sec.
Less than 0.2% (WRMS)
AUTOMOTIVE MULTIMEDIA
HONDA
CQ-EH0380A
AM/FM MPX ELECTRONIC TUNING
RADIO with Stereo Cassette Tape
Player and 6-Disc CD Changer
HONDA PART No. : 39100-S7A-W000
ID CORD : 1YF1
VEHICLE : STREAM
DESTINATION : China
PRODUCED AFTER : Nov.,2003
Signal to Noise Ratio
IDC (YGFD13196)
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"Dolby" and the double-D symbol
Laboratories Licensing Corporation.
ORDER No.0189
More than 38dB (IHF-A)
More than 66dB (IHF-A)
Less than 0.4%
More than 50dB (IHF-A)
180×102×170mm
2.4kg
are trade marks of Dolby
