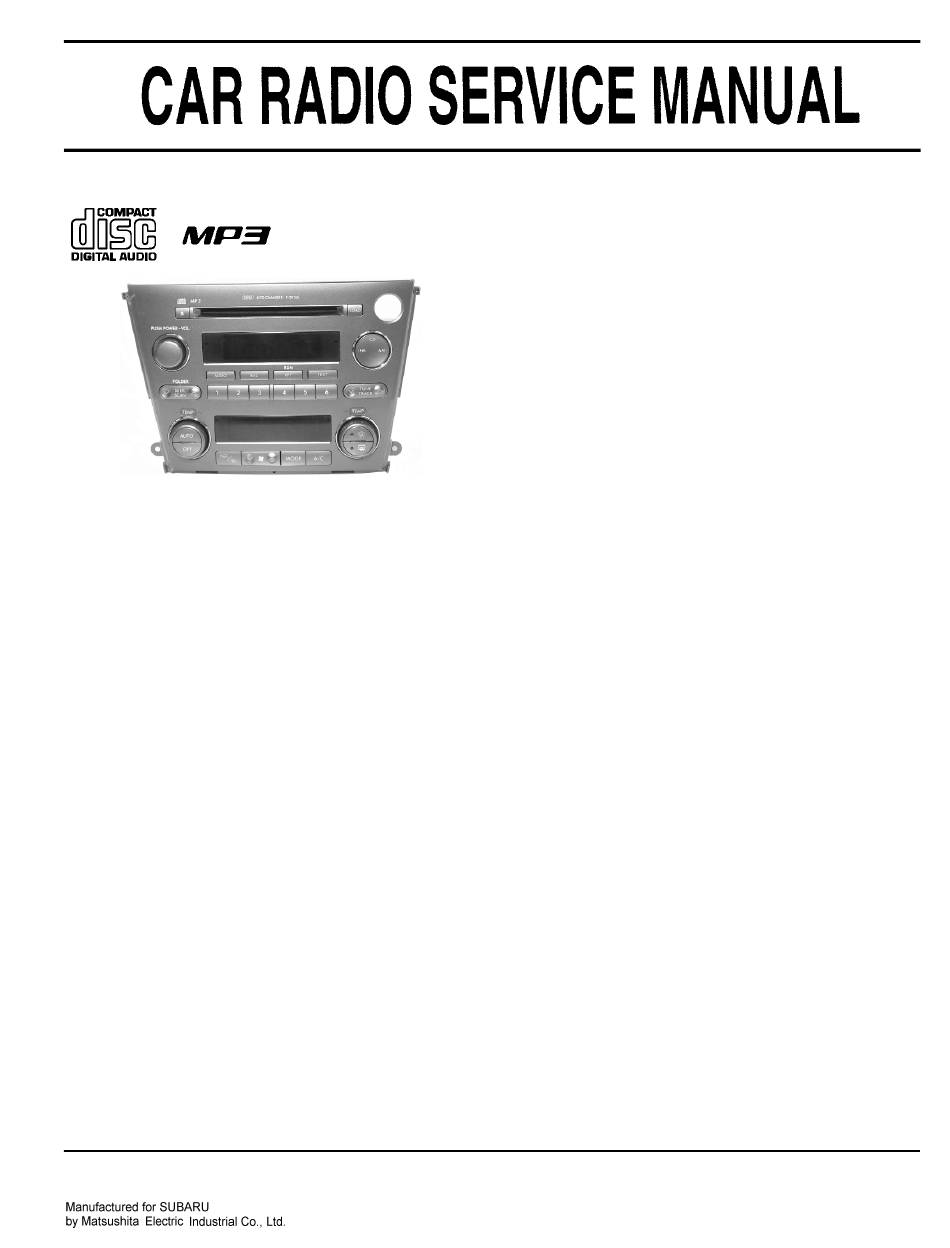

Matsushita Electric CQ-EF1560L Service Manual

Specifications*
General
Power Supply
Current Consumption
Maximum Output
Output Impedance
Sub Woofer Maximum Output
AM Radio
Frequency Range
Usable Sensitivity
Signal to Noise Ratio
FM Stereo Radio
Frequency Range
Usable Sensitivity
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 2.5A (Vol. Max.)
More than 18W
4Ω
More than 34W
530 - 1,710kHz
26dB/µV
More than 45dB
87.7 - 107.9MHz
6dB/µV (S/N 30dB)

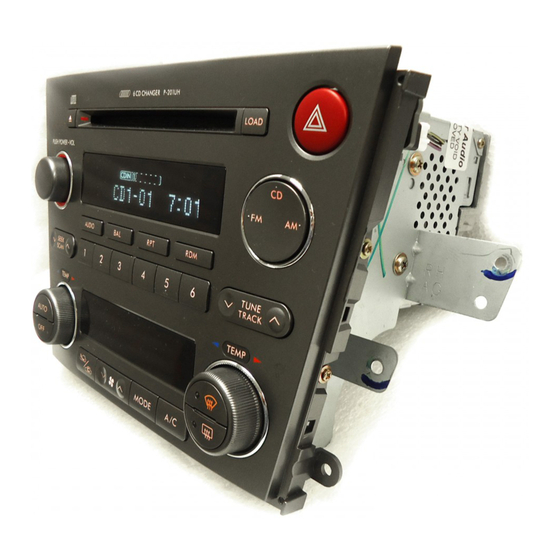

CUSTOM MADE FOR
SUBARU
CQ-EF1560L
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer (MP3)
SUBARU PART No. : 86201AG66A
ID CODE : P-203UE
VEHICLE : LEGACY
DESTINATION : North America
PRODUCED AFTER : Mar., 2005
NOTE: TEXT button is replaced with RDM button for
CQ-EF1561L.The CD deck used for this
model isYGFD13301 while for CQ-EF1561L,
it is YGFD13196.
CD Changer (YGFD13301)
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
ORDER No. 6099
More than 68dB (IHF-A)
Less than 0.4%
65dB (IHF-A)
178×100×175mm
3060g
