Aeon Labs
Home Energy Meter (C3 60A)
SKU: AEOEZW095C3A60
Quickstart
This is a Smart Meter for Europe. To run this device please connect it to your mains power supply. To add this device to your network execute the following
action:
- Push the button on backside
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer,
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and
every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is
not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other certified Z-
Wave device regardless of brand and origin as long as both are suited for the same frequency range.
If a device supports secure communication it will communicate with other devices secure as long as this
device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level
of security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.
Product Description

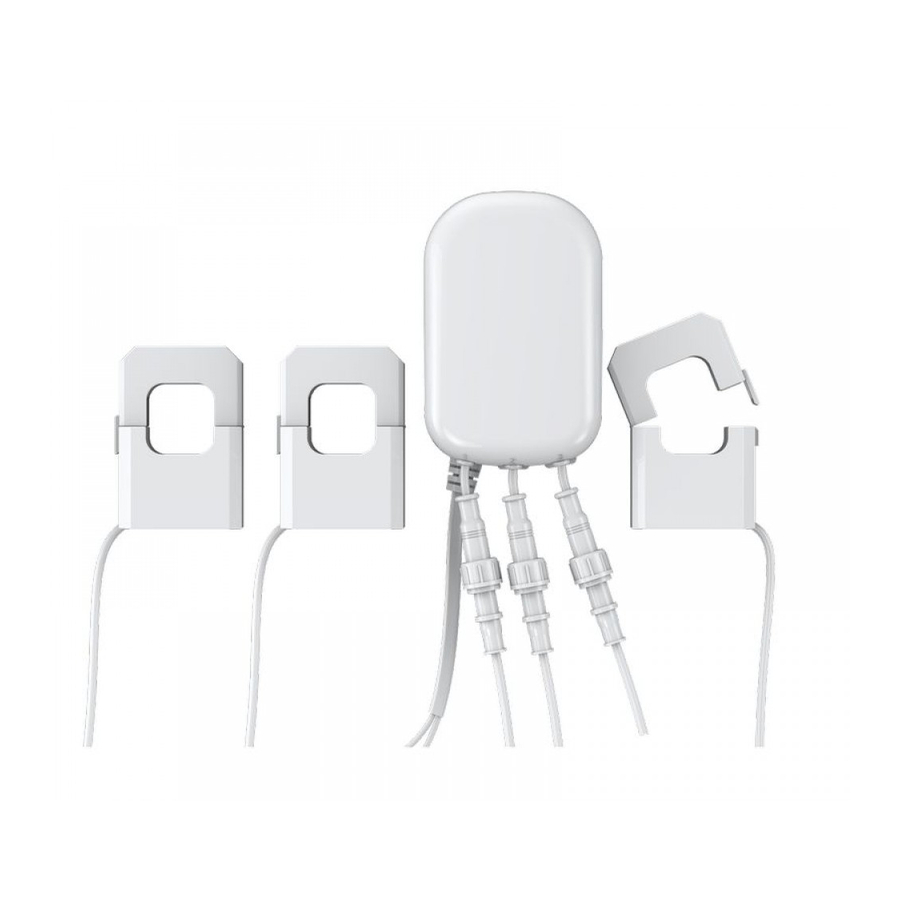

Installed in an electricity box, the energy meter will monitor the total consumption of electricity used by an entire building. And its
intelligent clamps will report that energy use back to your Z-Wave gateway or controller, in watts or kilowatt-hours, and in real time. So
you can see how much electricity you really use and when you use it.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aeon Labs Aeotec
Summary of Contents for Aeon Labs Aeotec
- Page 1 Aeon Labs Home Energy Meter (C3 60A) SKU: AEOEZW095C3A60 Quickstart This is a Smart Meter for Europe. To run this device please connect it to your mains power supply. To add this device to your network execute the following action:...
-
Page 2: Installation
Prepare for Installation / Reset Please read the user manual before installing the product. In order to include (add) a Z-Wave device to a network it must be in factory default state. Please make sure to reset the device into factory default. You can do this by performing an Exclusion operation as described below in the manual. -
Page 3: Product Usage
Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion. Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This controller is turned into exclusion respective inclusion mode. -
Page 4: Quick Troubleshooting
Quick trouble shooting Here are a few hints for network installation if things dont work as expected. 1. Make sure a device is in factory reset state before including. In doubt exclude before include. 2. If inclusion still fails, check if both devices use the same frequency. 3. -
Page 5: Configuration Parameters
always related to certain events (e.g. button pressed, sensor triggers, ...). In case the event happens all devices stored in the respective association group will receive the same wireless command wireless command, typically a 'Basic Set' Command. Association Groups: Group Number Maximum Nodes Description Send configured Value to devices... - Page 6 Setting Description 0 - 100 Valid value Parameter 8: Percentage change in wattage (Whole HEM) Percentage change in wattage to induce a automatic report Size: 1 Byte, Default Value: 10 Setting Description Parameter 9: Percentage change in wattage (Clamp 1) Percentage change in wattage to induce a automatic report Size: 1 Byte, Default Value: 10 Setting...
- Page 7 Size: 4 Byte, Default Value: 0 Setting Description 1 - 2097152 seconds Parameter 200: Partner ID Size: 1 Byte, Default Value: 0 Setting Description Aeon Labs Standard Product others Parameter 252: Enable/disable Configuration Locked Size: 1 Byte, Default Value: 0...
-
Page 8: Technical Data
Setting Description disable enable Parameter 255: Factory Reset Size: 4 Byte, Default Value: 0 Setting Description Reset to factory default setting 1431655765 Reset to factory default setting and removed from the zwave network Technical Data Dimensions 0.1000000x0.1900000x0.0750000 mm Weight 510 gr Hardware Platform ZM5202 1220000015548... - Page 9 Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways,Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. Slaves can be sensors, actuators and even remote controls. Primary Controller —...
