Aeon Labs AEO HEM2-100A Quick Start Manual

Z-wave clamp power meter 2nd generation - two clamps max. 100 ampere
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Image not readable or empty
images/manufacturers/aeon%20labs%20logo.png

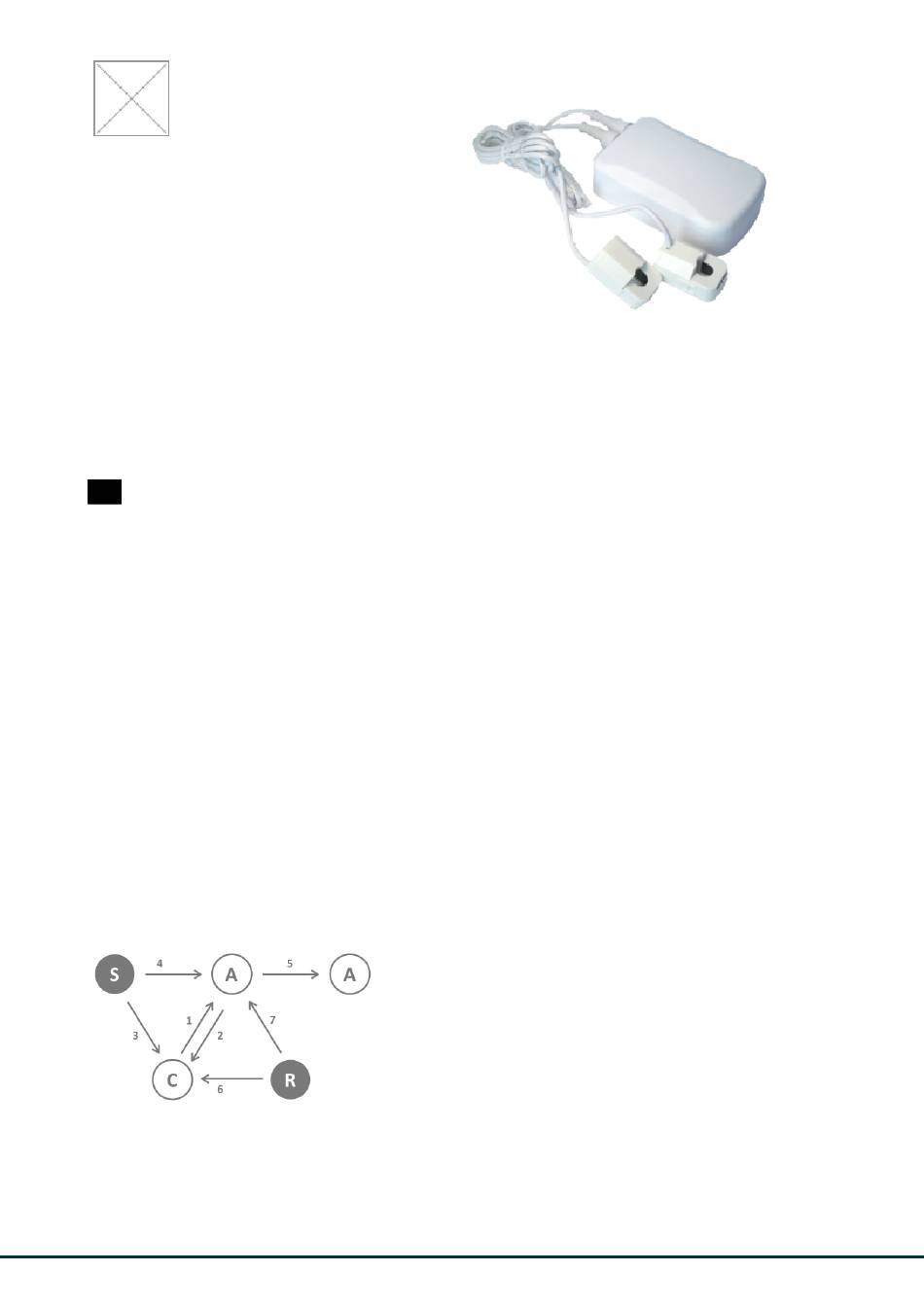

AEO_HEM2-100A
Z-Wave Clamp
Power Meter 2nd
Generation - two
clamps max. 100
Ampere
Firmware Version : 1.5

Quick Start

S
This device is a Z-Wave Sensor.
Single click the little button on the backside to include or exclude the device.
Please refer to the chapters below for detailed information about all aspects of the products usage.
What is Z-Wave?
This device is equipped with wireless communication complying to the Z-Wave standard. Z-Wave is the
international standard for wireless communication in smart homes and buildings. It is using the
frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed
(two-way communication) and every mains powered node can act as a repeater for other nodes (meshed
network) in case the receiver is not in direct wireless range of the transmitter.
Z-Wave differentiates between Controllers and Slaves. Slaves are either sensors (S) transmitting metered or
measured data or actuators (A) capable to execute an action. Controllers are either static mains powered
controllers (C) also referred to as gateways or mobile battery operated remote controls (R). This results in a
number of possible communication patterns within a Z-Wave network that are partly or completely supported
by a specific device.
1. Controllers control actuators
(c) 2012 Z-Wave Europe GmbH, Goldbachstr. 13, 09337 Hohenstein-Ernstthal, Germany, All rights reserved, www.zwaveeurope.com - pp 1
