Go-Between
Data Capture and Storage
™
Installation and Operation
This document illustrates the Go-Between being installed on an indicator; however, virtually any device with a serial output and
print data string will function with the unit.
Electric Shock Hazard
WARNING
Before opening the device enclosure, ensure the power cord is disconnected from the power outlet.
Jumper
Connector
- C -
Serial Port
Introduction
The Go-Between is connected to the serial port of a source device and collects print data on a USB flash drive. The Go-
Between can be wired as the data terminus or as a relay to a printer.
Enclosures
The Go-Between is available in 3 enclosure types:
• Stand-alone board
• Industrial Enclosure
• Desktop Enclosure
Capturing Data
Once properly installed, the Go-Between device will automatically capture data when the source's print command is executed.
Make sure the source device's print format is configured to output the data to the connected serial connection.
Using a Flash Drive
The Go-Between device captures data and stores it on a USB flash drive. Make sure the drive is formatted in the FAT file
system and does not exceed 8 GB. Connect the flash drive to the Go-Between's USB port (See
March 23, 2021

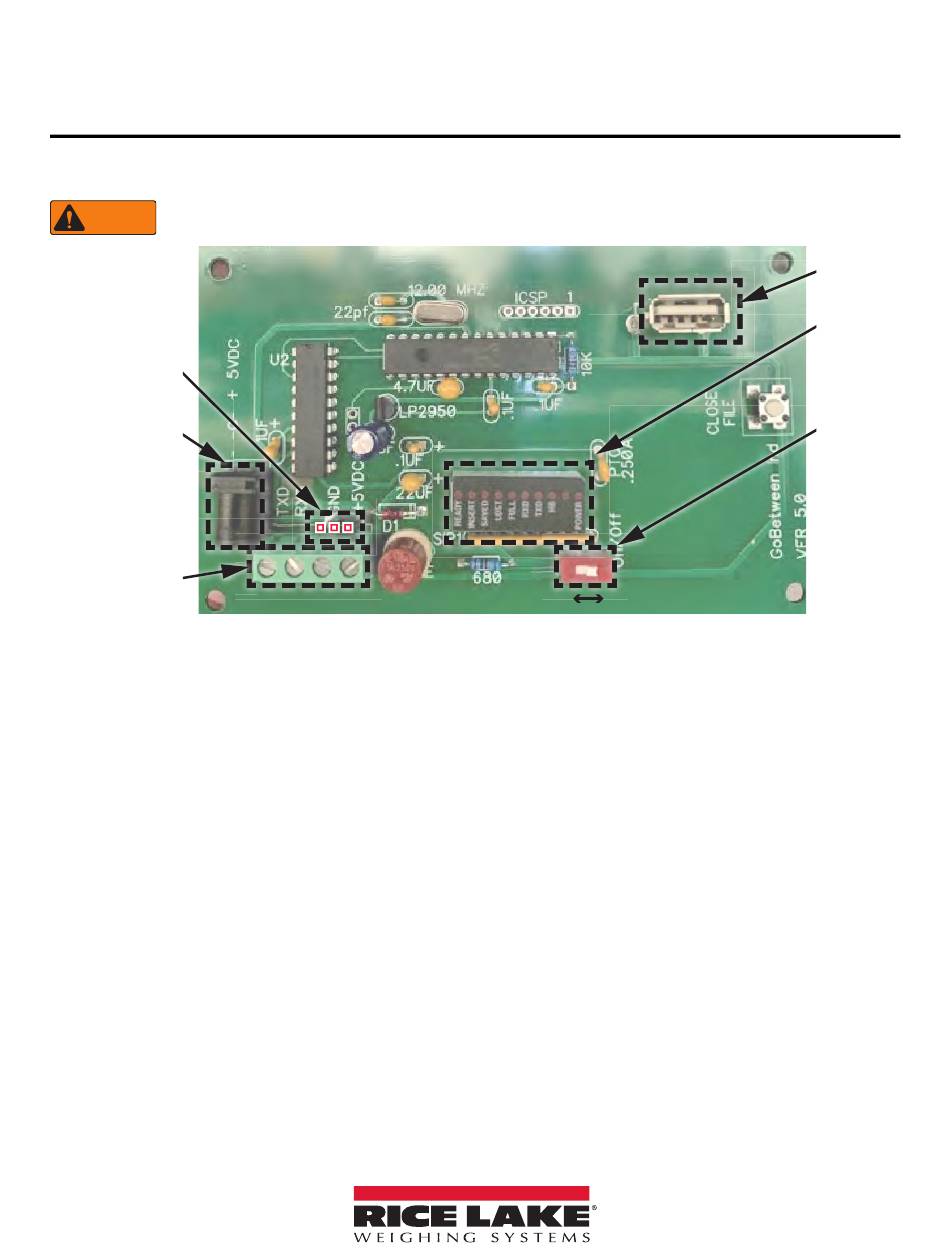

Figure 1. Stand-Alone and Industrial Enclosure CPU Board
OFF
ON
Figure
USB Port
LED
Lights
Reset
Switch
1).
PN 154051 Rev B
