BIEN-AIR DENTAL SA
SWITZERLAND
Reference:
Company
name:
APPLICATION DOMAIN
Checking protocol applies to the following devices:
Chiropro L, reference 1600613
Chiropro L, USA, reference 1600679
Osseocare, référence 1600871
CHECKING CRITERIA
POS
1.

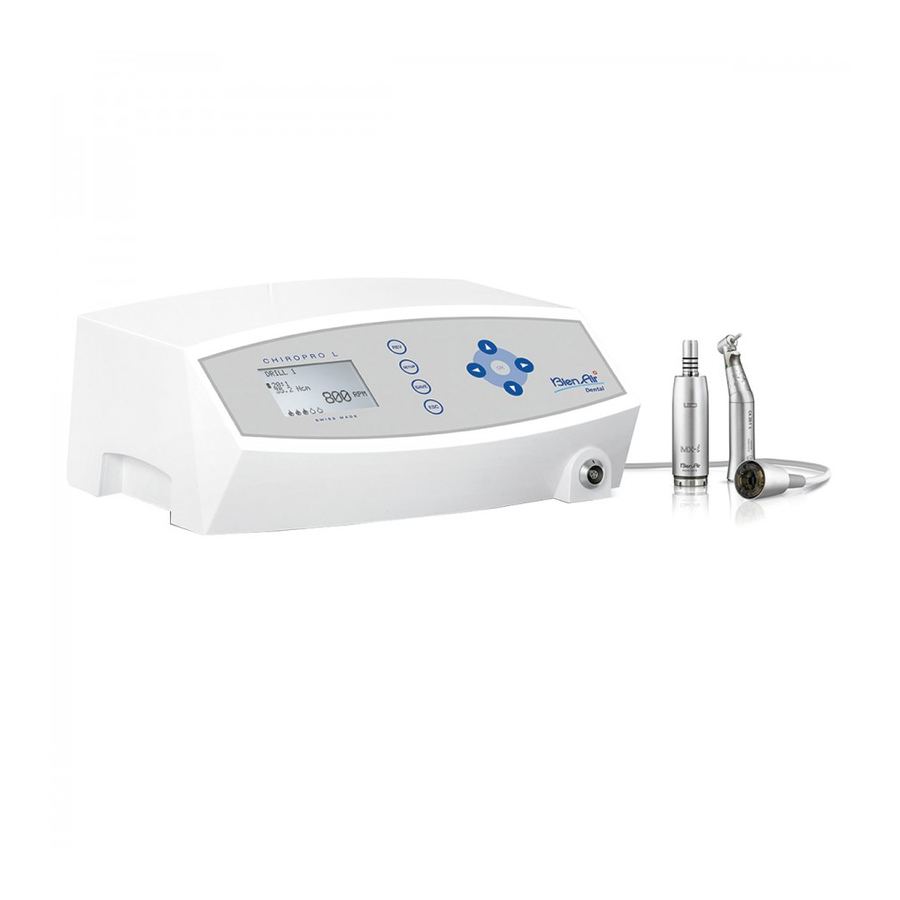

Connect the peripherals for the set to be tested to the control unit:
The pedal, the cable and its motor and the CA20:1 L contra-angle.
When the device is not accompanied by the peripherals, these must be replaced with new
parts or parts in perfect condition for the duration of the test.
Connect the Bien-Air device to the electricity supply using the appropriate cable.
2.
Simultaneously:
Press the 3 buttons
and switch on the device
(switch to position - I -)
3.
The screen shows:
CHIROPRO L, reference 1600613
Check the software version: must be 1.03 or above.
4.
Press the Ok button to continue.
5.
The screen should appear as follows:
Appr.: [AV] / [LTe]
CHIROPRO
AFTER SALES CHECKING PROCEDURE
Modifié le
Serial No.:
Product:
Chiropro, reference 1600724
ProImplant, USA, reference 1600730
Osseocare US, référence 1600872
PROCEDURE
ESC
1/7
SU 824-107 Rev.0004
Y = Yes
N = No
Y
N
[RE] / 20.10.14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bien-Air Dental Chiropro L
Summary of Contents for Bien-Air Dental Chiropro L
- Page 1 Product: name: APPLICATION DOMAIN Checking protocol applies to the following devices: Chiropro L, reference 1600613 Chiropro, reference 1600724 Chiropro L, USA, reference 1600679 ProImplant, USA, reference 1600730 Osseocare, référence 1600871 Osseocare US, référence 1600872 CHECKING CRITERIA Y = Yes N = No...
- Page 2 CHIROPRO BIEN-AIR DENTAL SA SU 824-107 Rev.0004 AFTER SALES CHECKING PROCEDURE SWITZERLAND Press the 4 buttons shown opposite in turn. Check the correspondence between the display on the screen and the button activated. As soon as all the buttons have been tested, the message "Ok: Continue"...
- Page 3 CHIROPRO BIEN-AIR DENTAL SA SU 824-107 Rev.0004 AFTER SALES CHECKING PROCEDURE SWITZERLAND Test the pedal by following the steps below: 1. Blue button: press and check the correspondence with the screen (IRRIG) 2. Orange button, press and check correspondence (PROGR) 3.
- Page 4 Checking the direction of rotation: Depress the pedal to check the default direction of rotation as indicated beside. CHIROPRO L models with light, reference 1600613 and USA reference 1600679 : Check there is a bright white light. Increase the speed to 500 rpm.
- Page 5 CHIROPRO BIEN-AIR DENTAL SA SU 824-107 Rev.0004 AFTER SALES CHECKING PROCEDURE SWITZERLAND Insert an irrigation line into the pump. Close the cover. Check the operation of the peristaltic pump with an irrigation line. Adjust the pump to maximum. Fill the container with fresh water and place the line's white end piece in it.
- Page 6 Check manually that each roller turns freely. If one roller does not turn freely, replace the roller support REF 1501112-001. Press the Ok button. The screen CHIROPRO L, ref 1600613 indicate Until software version 1.04 Skip to 39.
- Page 7 CHIROPRO BIEN-AIR DENTAL SA SU 824-107 Rev.0004 AFTER SALES CHECKING PROCEDURE SWITZERLAND Finally proceed to Electrical test according to EN60601-1 (EARTH connection, LEAK- AGE CURRENTS, AUXILIARY, CURRENT TO THE PATIENT as per IEC 60’601-§19). The link between the inspection report and repair form is the responsibility of the repairer.
