INTRODUCTION:
The iO-WR-XR wireless relay transceiver uses
state-of-the-art radio technology to transmit
any dry contact on/off signal to another factory-
paired transceiver up to 1/2 mile line of sight.
Each transceiver can be powered by 12 or 24
Volts AC or DC. Range verification testing can
also be accomplished by powering each
transceiver using a 12 volt battery pack.
Successful transmission and reception is
indicated on transmit and receive LEDs located
on each transceiver.
APPLICATION USE:
The iO-WR-XR can be used in a wide range of
applications where running wire is difficult, or
existing wires have been cut or damaged. The
iO-WR-XR can be used to control HVAC
equipment, fans, pumps, lighting and industrial
equipment.

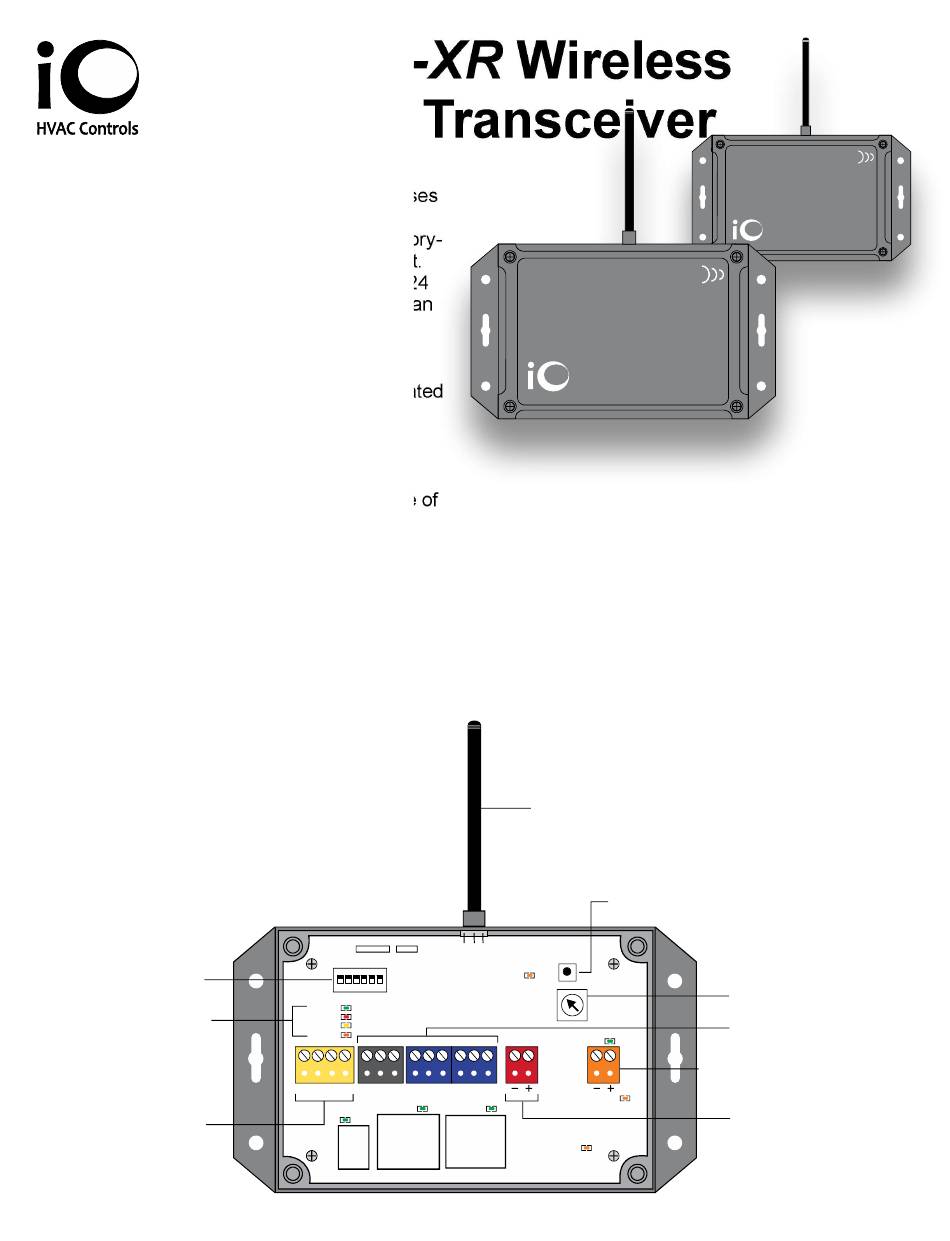

MODE SWITCHES
STATUS LEDs
INPUT TERMINALS
iO-WR-XR Wireless
Relay Transceiver
iO-WR-XR OVERVIEW
● ● ●
● ● ●
ON
1 2 3 4 5 6
MODE
RECEIVE
TRANSMIT
STATUS/PROG
RUN
FAULT
RLY1
RLY1 COM RLY2 COM
NC
COM NO
NC COM NO
ACTIVE
ACTIVE
FAULT
RLY1
iO-
WR-XR
HVAC Controls
HOW IT WORKS:
Each iO-WR-XR transceiver has 2 switched
input relays and 2 relay outputs. A closure on a
relay input of one transceiver will result in a
closure on a relay output of the other
transceiver.
ANTENNA
PROGRAM/TEST BUTTON
PROG/TEST
DELAY
CHARGE
RLY2
NC COM NO
ACTIVE
RLY2
iO-
WR-XR
HVAC Controls
NOT USED
OUTPUT TERMINALS
OPTIONAL 12 VOLT BATTERY
BACKUP TERMINAL
12 TO 24 VOLTS
AC/DC POWER INPUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iO-WR-XR and is the answer not in the manual?

Questions and answers

Summary of Contents for iO HVAC Controls iO-WR-XR

  • Page 1 LEDs located HVAC Controls on each transceiver. APPLICATION USE: The iO-WR-XR can be used in a wide range of applications where running wire is difficult, or HOW IT WORKS: Each iO-WR-XR transceiver has 2 switched existing wires have been cut or damaged.
  • Page 2: Installation

    1 second OFF indicating the Relay Outputs microprocessor is running. Each iO-WR-XR has 2 relay outputs plus a 5. POWER LEDs - Glow solid ORANGE when fault relay designed to open if there is a loss of power is present for relay, logic and power communications between the transceiver pairs amplifier supply.
  • Page 3: Dip Switches

    COMPLIANCE: DIP SWITCHES: The iO-WR-XR Wireless Transceiver has been tested and found to comply with the limits for a 1 2 3 4 5 6 MODE Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to...
  • Page 4 TYPICAL WIRING EXAMPLES ONE WAY TRANSMISSION (VOLTAGE OUTPUT) TRANSCEIVER 1 TRANSCEIVER 2 TRANSCEIVER 2 LOAD #1 LOAD #1 UNIT 2 LOAD #2 LOAD #2 UNIT 1 RLY1 COM RLY2 COM COM NO NC COM NO NC COM NO RLY1 COM RLY2 COM RLY1 COM RLY2 COM COM NO COM NO...
  • Page 5 WIRELESS RELAY USED FOR SINGLE COMPRESSOR HEAT PUMP WITH DEFROST SIGNAL AUXILIARY HEAT COIL COIL SPDT SPDT RELAY RELAY RLY1 COM RLY2 COM COM NO NC COM NO NC COM NO INDOOR UNIT TRANSCEIVER TRANSFORMER LINE COMPRESSOR RLY1 COM RLY2 COM...
  • Page 6 WIRELESS RELAY USED FOR TWO STAGE CONDENSING UNIT HEAT 1 HEAT 2 COIL COIL SPDT SPDT RELAY RELAY RLY1 COM RLY2 COM COM NO NC COM NO NC COM NO INDOOR UNIT TRANSCEIVER TRANSFORMER LINE COMPRESSOR 1 RLY1 COM RLY2 COM...
