INTRODUCTION:

The iO-WR-XR wireless relay transceiver uses
state-of-the-art radio technology to transmit
any dry contact on/off signal to another factory-
paired transceiver up to 1/2 mile through
obstructions, such as conventional building
materials. Each transceiver can be powered by
12 or 24 Volts AC or DC. Range verification
testing can also be accomplished by powering
each transceiver using a 12 volt battery pack.
Successful transmission and reception is
indicated on transmit and receive LEDs located
on each transceiver.

APPLICATION USE:

The iO-WR-XR can be used in a wide range of
applications where running wire is difficult, or
existing wires have been cut or damaged. The
iO-WR-XR can be used to control HVAC
equipment, fans, pumps, lighting and industrial
equipment.
MODE SWITCHES
Status Leds
INPUT TERMINALS
iO-WR-XR Wireless
Relay Transceiver

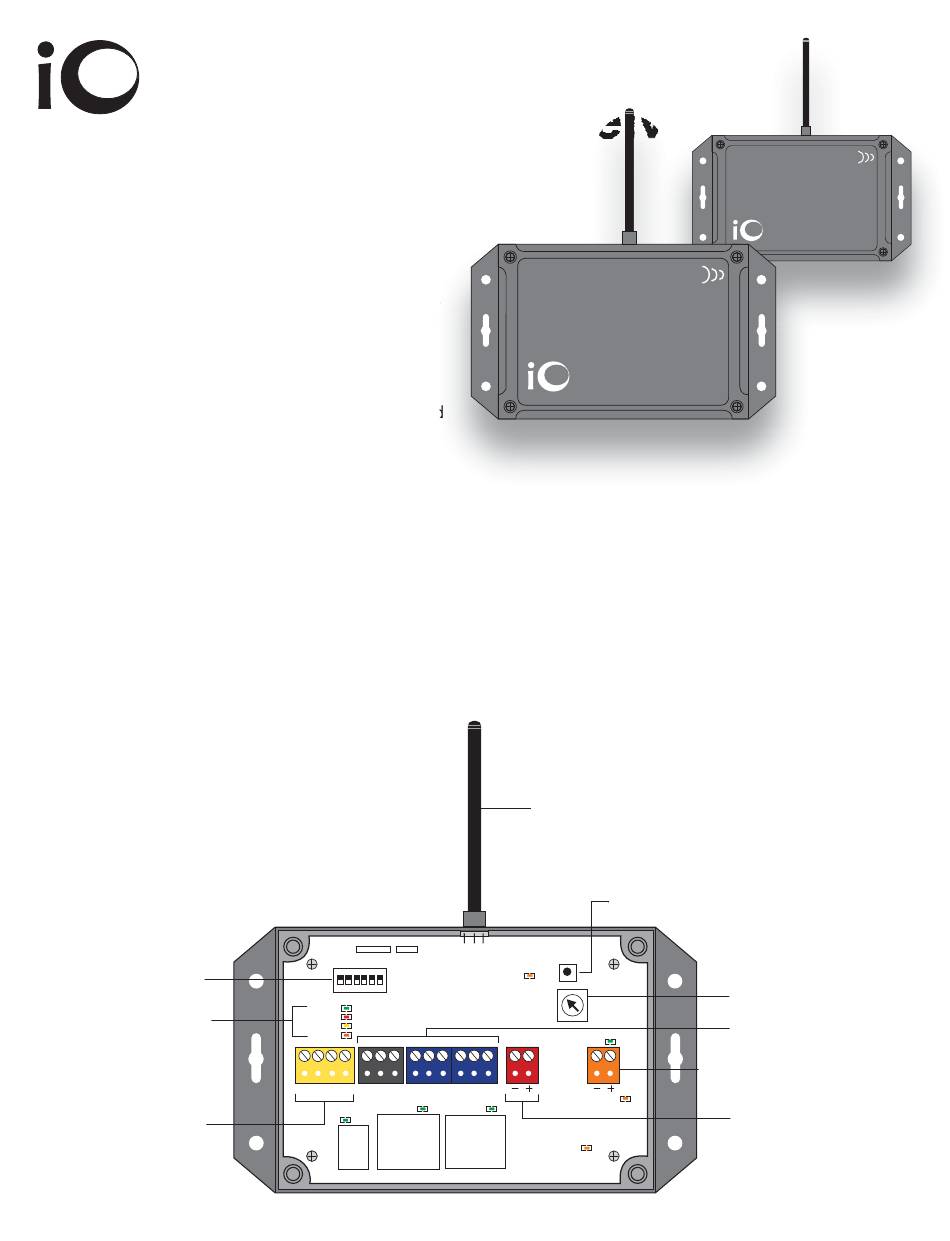

iO-WR-XR OVERVIEW
● ● ● ● ● ● ● ●
ON
1 2 3 4 5 6
MODE
RECEIVE
TRANSMIT
STATUS/PROG
RUN
FAULT RLY1
RLY1 COM RLY2 COM NC COM NO NC COM NO
ACTIVE
ACTIVE
FAULT RLY1
iO- WR-XR
HVAC Controls

HOW IT WORKS:

Each iO-WR-XR transceiver has 2 switched
input relays and 2 relay outputs. A closure on a
relay input of one transceiver will result in a
closure on a relay output of the other
transceiver.
ANTENNA
Program/Test Button
PROG/TEST
DELAY
CHARGE
RLY2
NC COM NO
ACTIVE
RLY2
iO- WR-XR
HVAC Controls
NOT USED
OUTPUT TERMINALS
OPTIONAL 12 VOLT BATTERY
BACKUP TERMINAL
12 TO 24 VOLTS
AC/DC POWER INPUT
