Cardinal Satellite Series Technical And Operating Manual

Unattended weighing kiosk
Hide thumbs

Advertisement

Quick Links

Download this manual
Satellite Series
Unattended Weighing Kiosk
Technical and Operation Manual
8545-0964-0M Rev A  Satellite Series Technical and Operation
1

Advertisement

loading

Summary of Contents for Cardinal Satellite Series

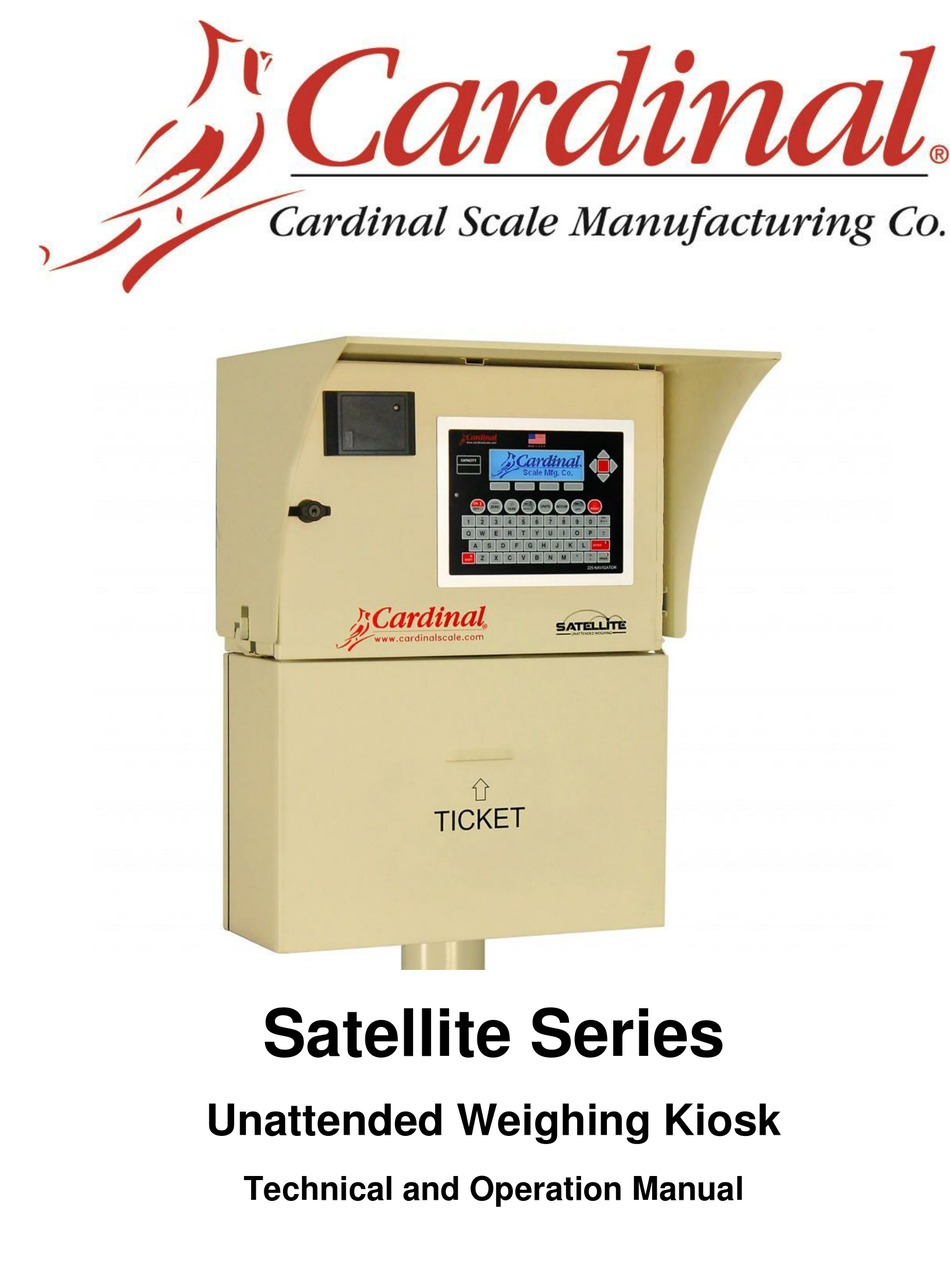

  • Page 1 Satellite Series Unattended Weighing Kiosk Technical and Operation Manual 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 2 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 3 Before using this product, read this manual Date of Purchase ____________________ and pay special attention to all Purchased Form_____________________ "NOTIFICATION" symbols: DANGER! ___________________________________ WARNING! ___________________________________ CAUTION! RETAIN THIS INFORMATION FOR FUTURE USE 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 4 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 5 INTRODUCTION Cardinal Scale’s Satellite series unattended weighing kiosks provide the ultimate experience in unmanned truck scale efficiency and streamlined data integration. The lockable, weather- proof enclosure features a modern design aesthetic with optional Rainhood/sun deflector. Select a Satellite model with the features you need, including a high-speed thermal Cutbar tape printer, proximity badge reader (AWID and HID), LED or LCD graphics display, and with or without a Rainhood.

  • Page 6: Specifications

    11 in / 27 cm (protracts and retracts) Extension: Displays: 240 x 64 pixel blue backlit LCD (225 models) or 640 x 480 pixel backlit color touch screen LCD (825 models) Keypad: Weatherproof QWERTY keyboard standard 8545-0964-0M Rev A  Satellite Series Technical and Operation...

  • Page 7: Model Number Description

     825 Weight Indicator/Terminal SAT825P Unattended Weighing Kiosk  Thermal Cutbar Tape Printer with 825 Indicator / Printer  Wall or Pole Mounted, Weatherproof Enclosure with Articulating Arm  Internal Heater With Thermostat 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 8 Proximity Badge Reader  Wall or Pole Mounted, Weatherproof Enclosure with Articulating Arm  Internal Heater With Thermostat SATP Satellite Outdoor Printer Aftermarket Add-on Option SATH Satellite Rainhood Aftermarket Add-on Option 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 9 Make certain that the wrist strap ground lead is securely attached to an adequate ground. If you are uncertain of the quality of the ground, you should consult a licensed electrician. 8545-0964-0M Rev A  Satellite Series Technical and Operation...

  • Page 10: Site Preparation

    24" away from all AC wiring.  Always use arc suppressors across all AC power relay contacts (see recommendations at http://www.paktron.com/pdf/Quencharch_QRL.pdf).  Use zero voltage switching relays, optically isolated if possible. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 11  If shipping caused damage to the unit, a claim must be filed with the commercial carrier.  If any other defect is apparent, call 800-441-4237 for a return authorization. 8545-0964-0M Rev A  Satellite Series Technical and Operation...

  • Page 12: Installation

    INSTALLATION Pole Mounting 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 13 INSTALLATION Wall Mounting 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 14 WIRING INTERCONNECT SAT 225 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 15 WIRING INTERCONNECT SAT 825 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 16 WIRING INTERCONNECT SAT PRINTER 8545-0964-0M Rev A  Satellite Series Technical and Operation...

  • Page 17: Loading Printer Paper

    LOADING PRINTER PAPER 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 18 ID string is entered and the stored weight is recalled for printing the complete ticket. After the ticket has printed, the ID number and the stored weight will be removed from memory. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 19 Using the numeric keys, enter the desired alarm TIME ON=X value (1-99 seconds) and press the ENTER key. The on time will be stored and the display will return to normal mode. Note that setting TIME ON=0 disables the alarm. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 20 8. If the displayed value is correct, press the ENTER key to save it. Otherwise, using the numeric keys, enter the correct value and then press the ENTER key to save it. 9. The indicator will return to normal operation. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 21 1. With the indicator in normal operations mode, press the MEM key. The display will change to show Id=. 2. Press the PRINT key. The display will show Printing while all currently stored ID strings are printed. 3. The indicator will return to normal operation. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 22 8. The Net weight will be added to the accumulator of the entered ID string and the ticket printed will show the TIME, DATE, ID, TIME/DATE of Stored Tare weight, the Gross, Tare, and Net weights. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 23 10. The Net weight will be added to the accumulator of the entered ID string and the ticket printed will show the TIME, DATE, ID, TIME/DATE of Stored Tare weight, the Gross, Tare, and Net weights. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 24 5. The Net weight will be added to the accumulator of the entered ID string and the ticket printed will show the TIME, DATE, ID, TIME/DATE of Stored Tare weight, the Gross, Tare, and Net weights. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 25 5. The Net weight will be added to the accumulator of the entered ID string and the ticket printed will show the TIME, DATE, ID, TIME/DATE of Stored Tare weight, the Gross, Tare, and Net weights. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 26 5. The Net weight will be added to the accumulator of the entered ID string and the ticket printed will show the TIME, DATE, ID, TIME/DATE of Stored Tare weight, the Gross, Tare, and Net weights. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 27 2. The display will change to show ID1=. 3. Enter up to a 12-digit alphanumeric ID string and press the PRINT key. 4. The indicator will print a ticket, display Print Pass 2, and delete the ID string. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 28 2. The display will change to show ID1=. 3. Enter up to a 12-digit alphanumeric ID string and press the PRINT key. 4. The indicator will print a ticket, display Print Pass 2, and delete the ID string. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 29 3. Enter the ID string printed on the ticket and then press the PRINT key. 4. The indicator will print a ticket, display Print Pass 2, and delete the ID string. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 30 3. Enter the ID string printed on the ticket and then press the PRINT key. 4. The indicator will print a ticket, display Print Pass 2, and delete the ID string. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 31 825 ID/TRUCK STORAGE INTRODUCTION The Cardinal 825 features an ID/Truck Storage application with full database capabilities, nearly unlimited ID/Truck storage capabilities, report printings, and much more. Figure 1: Cardinal 825 ID/Truck Storage  Full database capabilities from SQLite.  Nearly unlimited truck storage capabilities (~1,500,000 on standard storage).
  • Page 32 3. Press the SPACE key to toggle options for report printouts. 4. Press the ENTER key to save or the ESC key to cancel changes. Figure 3: ID/Truck Storage Printing Setup menu 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 33 Figure 4: ID/Truck Storage ID Entry screen 2. Enter an ID/Truck and touch the ENTER button or press the ENTER key. 3. Use navigation keys to move between fields and the keypad to enter values (Figure 5). 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 34 ID/Truck Storage menu. 2. Touch the truck you wish to delete or enter the truck ID. 3. Press the DELETE button and the ID/Truck is deleted (Figure 6). Figure 6: Deleting an ID/Truck. 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 35 2. Enter the ID/Truck from the ID entry list (Figure 4) or press the corresponding ID/Truck button. 3. Touch the PRINT button to print a second pass ticket (Figure 8). 4. The 825 will accumulate the permanent ID/Truck and reset the stored weight. 8545-0964-0M Rev A  Satellite Series Technical and Operation...

  • Page 36: Parts Identification

    PCB CONTROLLER, 225 INDICATOR 8200-D360-08 KEYPAD 225 INDICATOR 8545-0938-08 CALIBRATION COVER, 225 8545-0946-0A SUB-ASSY, 225 P.S. 8545-0947-0A CABLE ASSY: LED, ENCLOSURE 8545-0952-0A CABLE ASSY: A/C POWER 8545-0953-0A CABLE ASSY: GROUND WIRE 8545-D914-0A ENCLOSURE WELDMENT 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 37 PARTS IDENTIFICATION Final Assembly SAT225 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 38 PARTS IDENTIFICATION Final Assembly SAT225 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 39 PCB CONTROLLER, 225 INDICATOR 8200-D360-08 KEYPAD 225 INDICATOR 8545-0938-08 CALIBRATION COVER, 225 8545-0946-0A SUB-ASSY, 225 P.S. 8545-0947-0A CABLE ASSY: LED, ENCLOSURE 8545-0952-0A CABLE ASSY: A/C POWER 8545-0953-0A CABLE ASSY: GROUND WIRE 8545-D914-1A ENCLOSURE WELDMENT 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 40 PARTS IDENTIFICATION Final Assembly SAT225B1 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 41 PARTS IDENTIFICATION Final Assembly SAT225B1 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 42 CABLE ASSY: LED, ENCLOSURE 8545-0952-0A CABLE ASSY: A/C POWER 8545-0953-0A CABLE ASSY: GROUND WIRE 8545-B821-1A POWER CABLE ASSY 8200-C822-0A BEZEL WELDMENT 8200-D810-08 KEYPAD 825 INDICATOR 8545-D835-1A SUB-CHASSIS ASSEMBLY-LED 8545-D914-2A ENCLOSURE WELDMENT 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 43 PARTS IDENTIFICATION Final Assembly SAT825 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 44 PARTS IDENTIFICATION Final Assembly SAT825 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 45 CABLE ASSY: LED, ENCLOSURE 8545-0952-0A CABLE ASSY: A/C POWER 8545-0953-0A CABLE ASSY: GROUND WIRE 8545-B821-1A POWER CABLE ASSY 8200-C822-0A BEZEL WELDMENT 8200-D810-08 KEYPAD 825 INDICATOR 8545-D835-1A SUB-CHASSIS ASSEMBLY-LED 8545-D914-2A ENCLOSURE WELDMENT 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 46 PARTS IDENTIFICATION Final Assembly SAT825B1 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 47 PARTS IDENTIFICATION Final Assembly SAT825B1 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 48 BUSHING 3/8ID X 5/8OD X 1LG X 1/8THK 6750-0057 BUSHING 3/8ID X 5/8OD X 1-1/4LG X 1/8THK 8545-0949-08 THREADED ARM 8545-B918-08 MOUNTING ARM 8545-B919-08 MOUNTING HINGE, BOX 8545-B923-08 MOUNTING HINGE, POLE 8545-B924-08 MOUNTING BRACKET 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 49 PARTS IDENTIFICATION Mounting Sub-Assembly 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 50 SPACER #6-32 X .500 HEX NYLON 6930-0008 THERMOSTAT 40/55 DEG F 8539-B108-1A DATA CABLE: 2XX TO P400 8545-0959-08 PAPER GUIDE 8545-B934-08 POWER SUPPLY STRAP 8545-C933-0A PRINTER SUB-PANEL WELDMENT 8545-D927-0A PRINTER ENCLOSURE WELDMENT 593GR986 SERIAL TAG ASSY 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 51 PARTS IDENTIFICATION Final Assembly SATP 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 52 PARTS IDENTIFICATION Final Assembly SATP 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 53 ITEM DESCRIPTION MAT, SAFETY TRACK RESILIENT-BLK 0.24” TK .2sqft 6540-1144 6560-0041 SILICONE SEALER RTV, CLEAR, 2.8 OZ TUBE 6770-1048 LED FLEXIBLE LIGHT STRIP 8545-0948-0A CABLE ASSY: LED, HOOD 8545-C916-0A HOOD WELDMENT 8545-0964-0M Rev A  Satellite Series Technical and Operation...
  • Page 54 STATEMENT OF LIMITED WARRANTY WARRANTY TERMS Cardinal Scale Manufacturing Company warrants the equipment we manufacture against defects in material and workmanship. The length and terms and conditions of these warranties vary with the type of product and are summarized below:...
  • Page 55 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of our product. Cardinal will not be liable for consequential damages of any nature, including but not limited to loss of profit, delays or expenses, whether based on tort or contract.
  • Page 56 Cardinal Scale Mfg. Co. 203 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 www.cardinalscale.com Technical Support: 1-866-254-8261 Printed in USA E-mail: tech@cardet.com 8545-0964-0M Rev A  Satellite Series Technical and Operation 8545-0964-0M Rev A 08/17...
