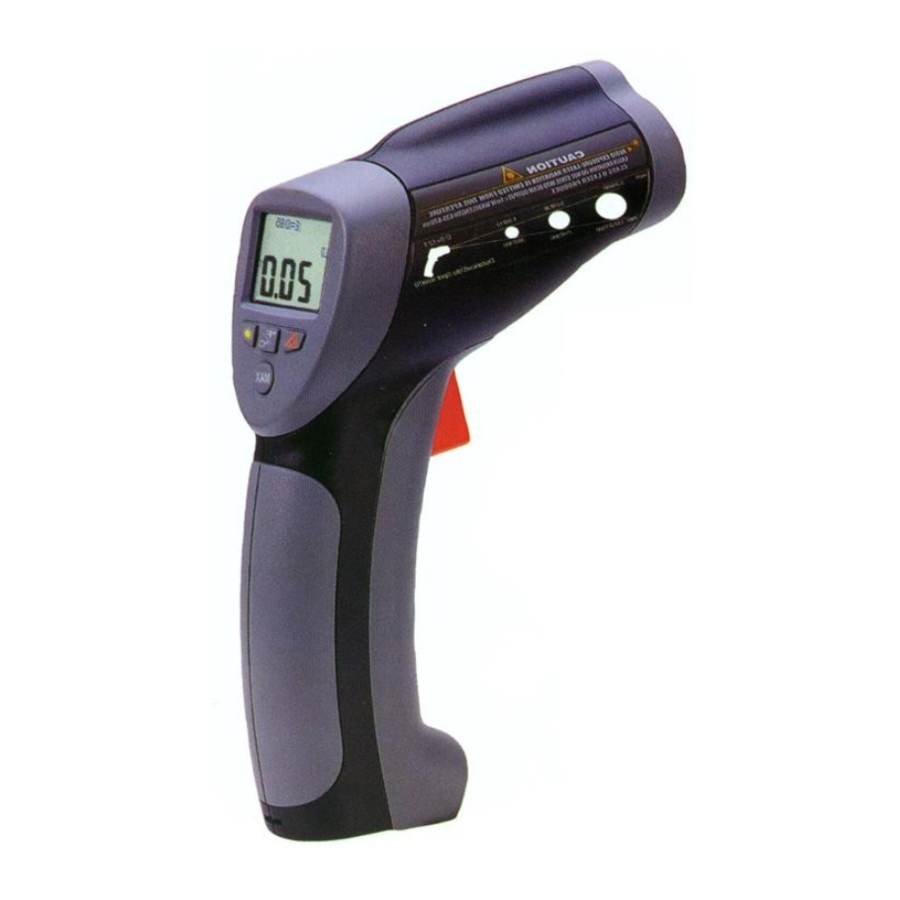

Morris Products 59116 Operation Manual

Features:

Precise non-contact measurements

Built-in laser pointer

Automatic selection range and Resolution to 0.1

o o
C/ F switchable button

Automatic Data Hold & Auto power off

The meter at 12 inches away measures 1 inch target

Backlit LCD display
Wide range application:
Food preparation, Safety and Fire inspectors, Plastic molding, Asphalt, Marine and screen printing,
measure ink and dryer temperature, Diesel and Fleet maintenance.
Field Of View
The meter's field of view is 12:1, meaning that if the meter is 12 inches from the target, the
diameter of the object under test must be at least 1 inch. Other distances are shown below in the
field of view diagram. Refer to the chart printed on the meter for more information.
Distance(D) to Spot Size(S)
Fig: 1
D:S=12:1
1.

SAFETY


Use extreme caution when the laser beam is turned on.

Do not let the beam enter your eye, another person's eye or the eye of an animal.

Be careful not to let the beam on a reflective surface strike your eye.

Do not allow the laser light beam impinge on any gas which can explode.

SPECIFICATIONS

2.

General specifications

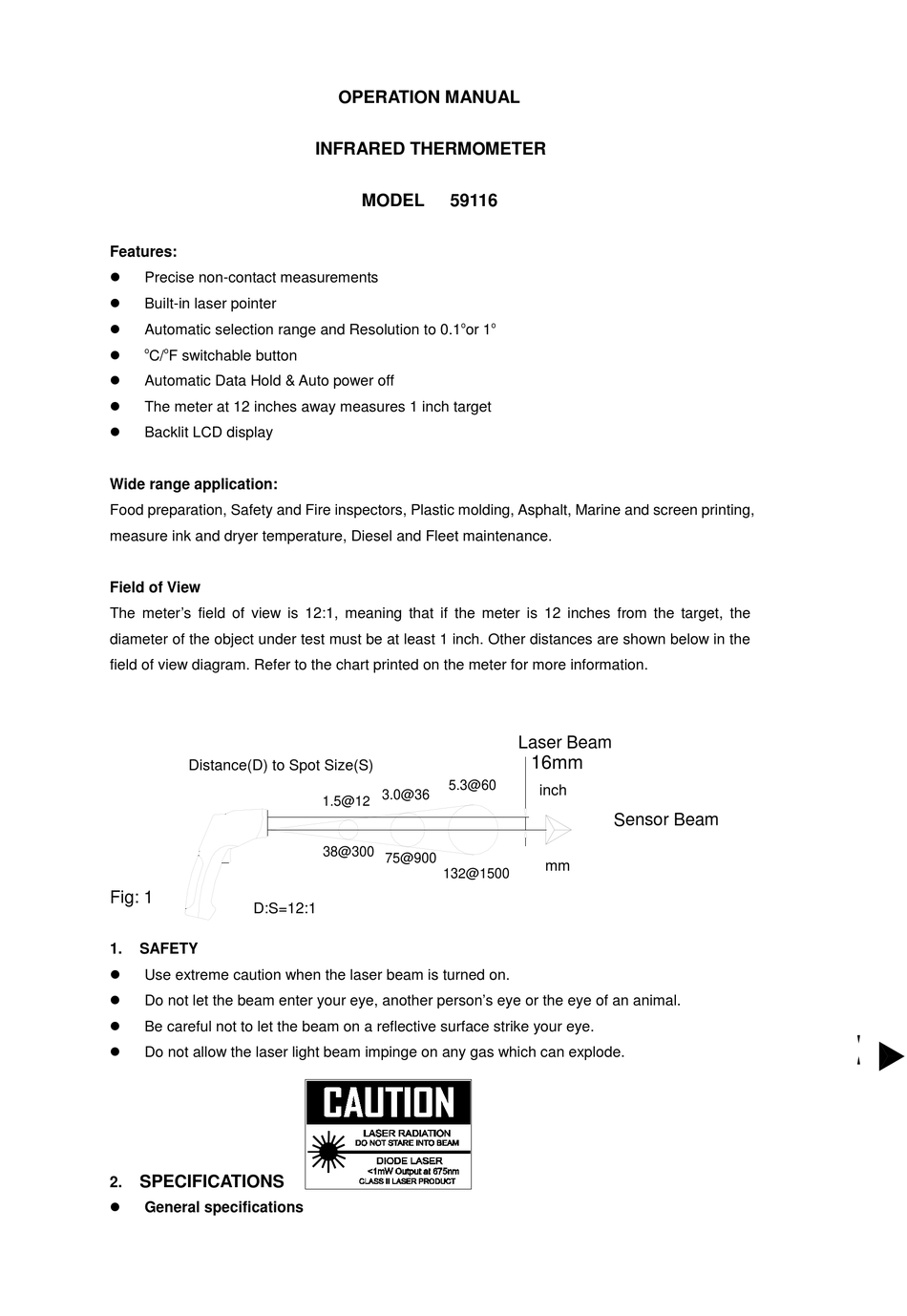

OPERATION MANUAL
INFRARED THERMOMETER
MODEL 59116
o
or 1
5.3@60
1.5@12 3.0@36
38@300
75@900
132@1500
o
Laser Beam
16mm
inch
Sensor Beam
mm
