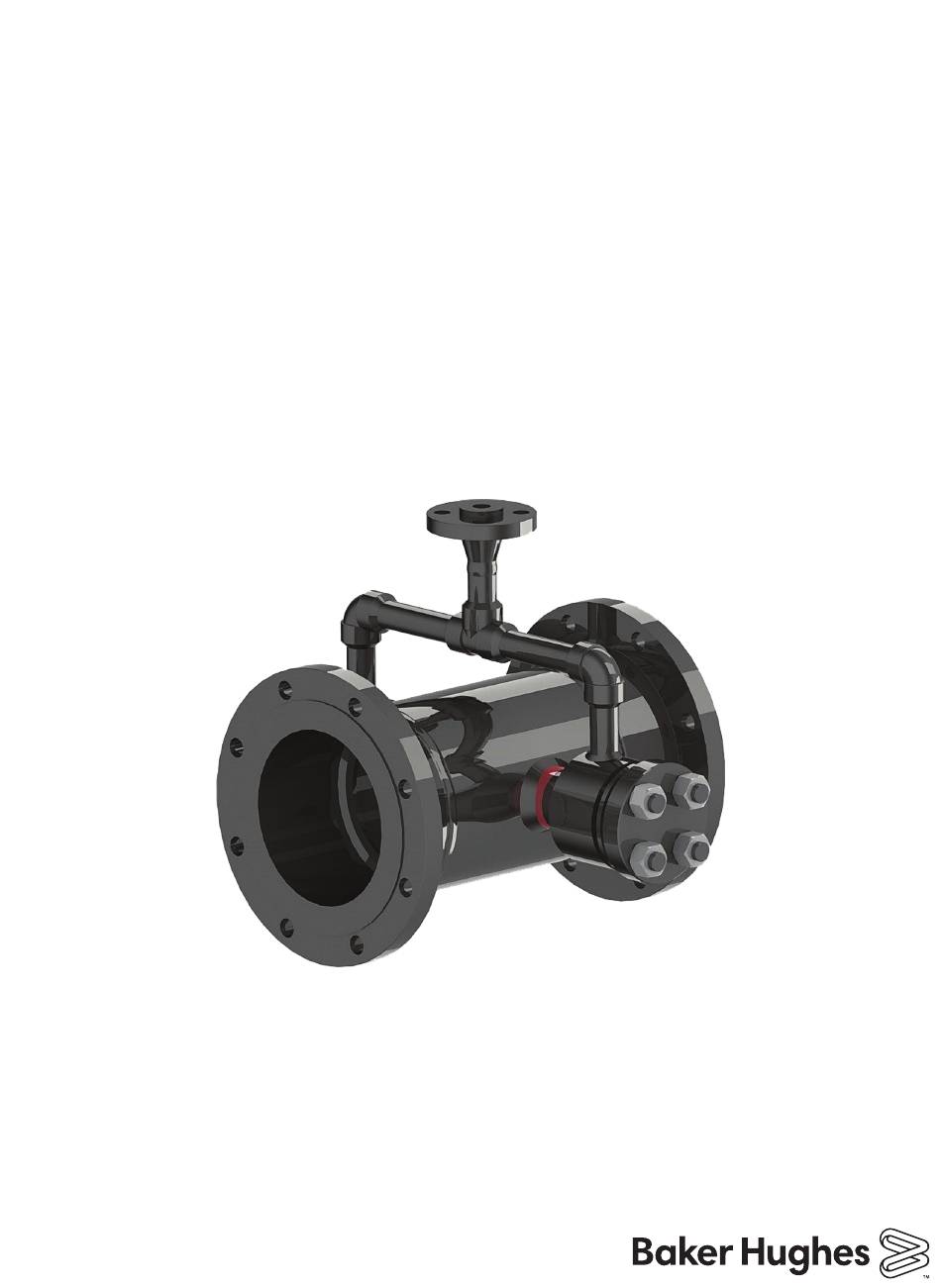

  • Page 1 Masoneilan ™ Series ™ Desuperheater Instruction Manual (Rev.B) Baker Hughes Data Classification : Public...
  • Page 2 OPERATOR ARE STRICTLY LIMITED TO THOSE EXPRESSLY PROVIDED IN THE CONTRACT RELATING TO THE SUPPLY OF THE EQUIPMENT. NO ADDITIONAL REPRESENTATIONS OR WARRANTIES BY BAKER HUGHES REGARDING THE EQUIPMENT OR ITS USE ARE GIVEN OR IMPLIED BY THE ISSUE OF THESE INSTRUCTIONS.
  • Page 3: Table Of Contents

    Inspecting Nozzle Performance .....................5 Replacing Nozzle Assembly .....................6 Inspection and Maintenance ....................7 External Inspection ........................7 Internal Inspection ........................8 Parts Reference For DSH Series Desuperheater ..............9 Masoneilan DSH Series Desuperheater Instruction Manual | iii Copyright 2020 Baker Hughes Company. All rights reserved.
  • Page 4: Safety Information

    Warranty Items sold by Baker Hughes are warranted to be free from defects Indicates a potentially hazardous situation which, if not avoided, in materials and workmanship for a period of one year from the could result in death or serious injury.
  • Page 5 Products shall be installed, serviced, and maintained in accordance with all local and national codes and standards by properly qualified (licensed/certified/ trained) personnel. Masoneilan DSH Series Desuperheater Instruction Manual | 2 Copyright 2020 Baker Hughes Company. All rights reserved.
  • Page 6: Definitions

    Scope damage to the accessories and component parts. Contact the local Baker Hughes Sales Office or Service Center with any The following instructions are designed to guide the user issues or problems. Be sure to provide the model number and through the installation and maintenance of the DSH Series serial number in all correspondence.
  • Page 7: Isolation Bypass Valve

    Clean all gasket interface Table 1 - Nozzle removal bolts surfaces and reassemble using new gaskets to ensure sealing integrity. Masoneilan DSH Series Desuperheater Instruction Manual | 4 Copyright 2020 Baker Hughes Company. All rights reserved.
  • Page 8: Flushing Operations

    Desuperheating performance is reliant upon water injection of can be unblocked. the desuperheater spray nozzles. The nozzle must maintain If problem persists, contact the Baker Hughes Masoneilan an aerosol spray effect, and a hollow cone spray pattern. Weld factory for a replacement nozzle assembly.
  • Page 9: Replacing Nozzle Assembly

    Note: To prevent blockage of the small nozzle orifices, an inline strainer must be installed upstream of the valve. Table 3 provides a list of recommended strainer sizes. Masoneilan DSH Series Desuperheater Instruction Manual | 6 Copyright 2020 Baker Hughes Company. All rights reserved.
  • Page 10: Inspection And Maintenance

    Visual inspection can be accomplished using a borescope. The inside of the pipe can be accessed by removing one of the spray water nozzles as shown below. Areas Consult Baker Hughes if cracks or erosion damage is discovered. to be inspected: Liner...
  • Page 11: Parts Reference For Dsh Series Desuperheater

    Table 4 - Parts reference Figure 6 - Spray nozzle assembly Figure 5 - Spray nozzle holder Figure 7 - Flow Profiler Style with Nozzle Section View Masoneilan DSH Series Desuperheater Instruction Manual | 8 Copyright 2020 Baker Hughes Company. All rights reserved.
  • Page 12 Copyright 2020 Baker Hughes Company. All rights reserved. Baker Hughes provides this information on an “as is” basis for general information purposes. Baker Hughes does not make any representation as to the accuracy or completeness of the information and makes no warranties of any kind, specific, implied or oral, to the fullest extent permissible by law, including those of merchantability and fitness for a particular purpose or use.
